368a cont – Great Plains 3-Point No-Till Precision Seeding System User Manual
Page 7
4/8/2004
298-284m
Great Plains Mfg., Inc.
7
Installation Instructions
Ref#
Qty
Part Number
Description
1.
1
466822000S1
Seed Manager Console*
2.
1
466820134S1
Seed Manager 4WD Cad Harness
3.
1
467751130S1
16-Row Module
4.
1
467751206S1
Seed Manager 485 Module Extension 30’
5.
1
467751457S1
16-Row Harness 2520P Twin Row
6.
1
466820835S1
Speed Sensor Extension Cable 30’
7.
1
464211340
Seed Manager Module Cable Plug
8.
1
110116416
TY Wrap Bundle (Not Shown)
9.
1
161211330
Speed Manager 2-Pin Cable Plug
10.
1
298-281K
Hardware Bundle (Not Shown, for parts listing refer to page 25)
*NOTE: Refer to DJ manual for Console installation.
298-368A cont.

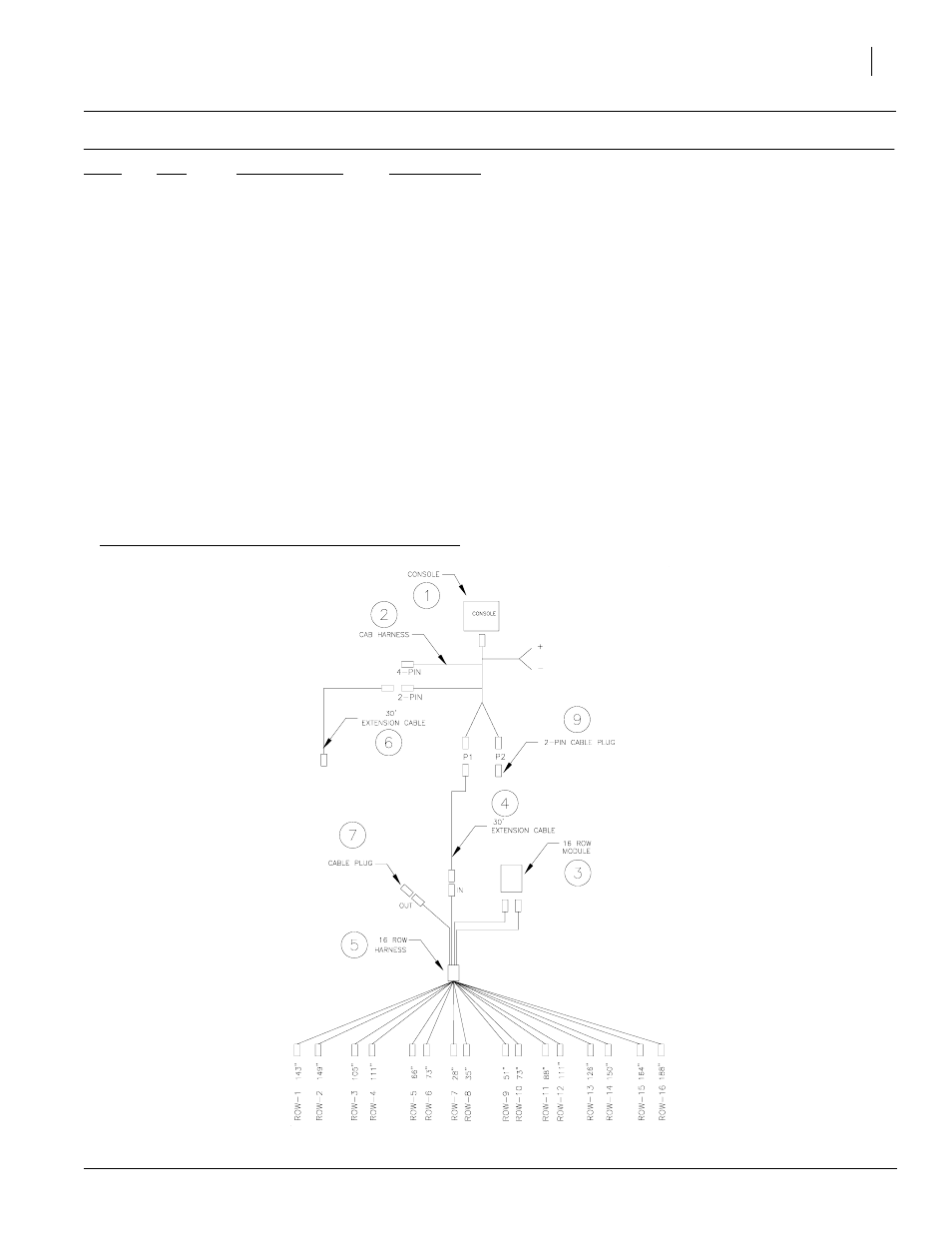

25P 16 Row TR Monitor Harness Schematics
Note: For further schematic illustration, refer to the DJ manual supplied in the Monitor System Package.
