Great Plains 3-Point No-Till Precision Seeding System - Manual (Page 21)

4/8/2004 298-284m
Great Plains Mfg., Inc.
21 Installation Instructions
Ref# Qty Part Number Description
1. 1 466822000S1 Seed Manager Console*
2. 1 466820134S1 Seed Manager 4WD Cad Harness
3. 2 467751130S1 16-Row Module
4. 1 467751206S1 Seed Manager 485 Module Extension 30’
5. 1 467551203S1 Seed Manager 1585 Module Extension 15’
6. 2 467751456S1 16-Row Harness 2520P 9.5
7. 1 466820835S1 Speed Sensor Extension Cable 30’
8. 1 464211340 Seed Manager Module Cable Plug
9. 2 110116416 TY Wrap Bundle (Not Shown)
10. 1 464211330 Seed Manager 2-Pin Cable Plug
11. 1 298-282K Hardware Bundle (Not Shown, for parts listing refer to page 25)
*NOTE: Refer to DJ manual for Console installation.
298-367A cont.

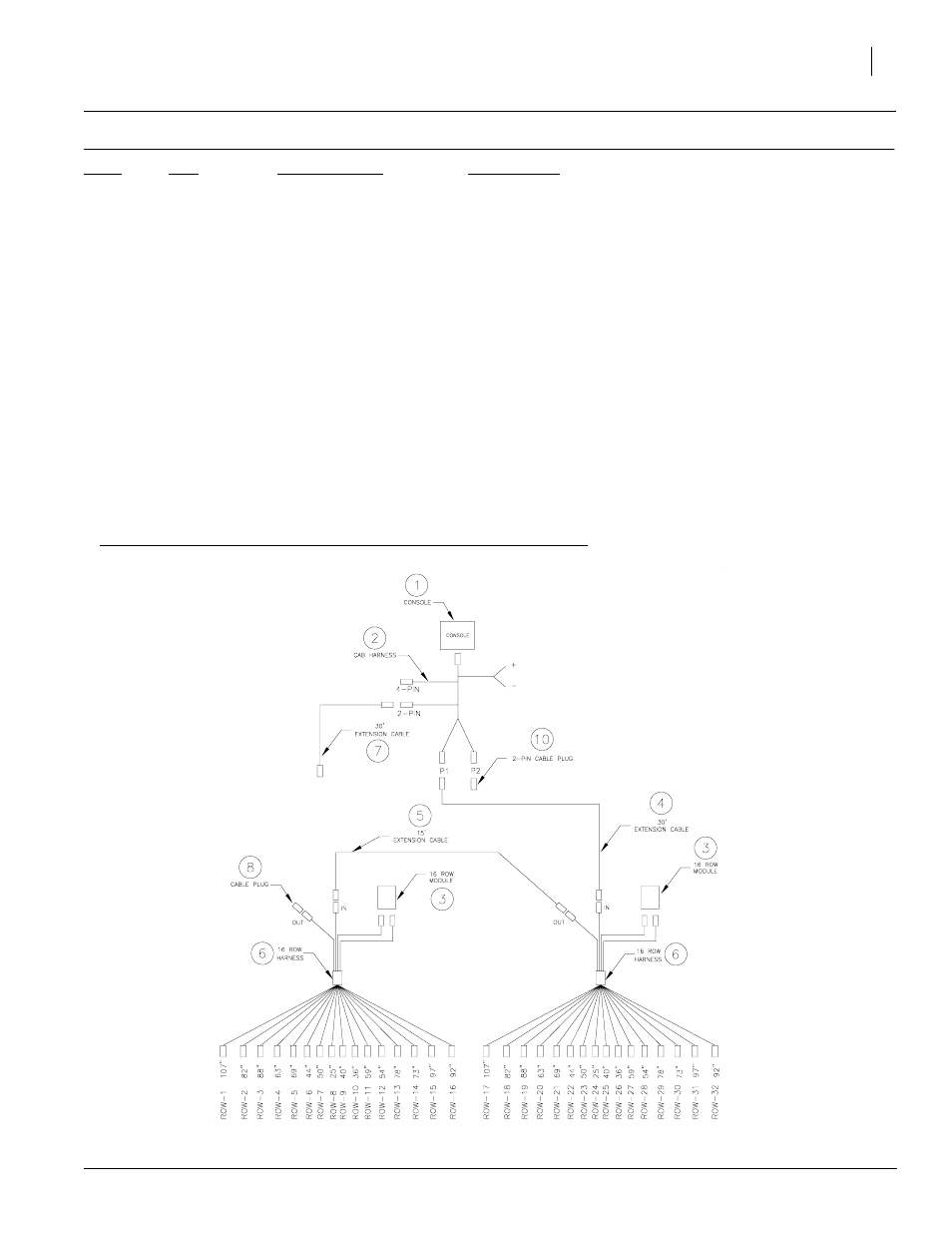

25P 32 Row 9 1/2" & 8/10/10/10 Monitor Harness Schematics
Note: For further schematic illustration, refer to the DJ manual supplied in the Monitor System Package.
