6
PTO DRIVELINE
1. Clean paint from gearbox input shaft.
2. Slide the PTO driveline onto the gearbox input shaft, using a 3/8” x 1-3/4”
square key. Tighten set screws securely.
3. Install the transport saddle with halfband on auger tube directly behind the
boot. Use 7/16” x 1-1/4” bolts and locknuts.
4. Rotate transport saddle upwards or downwards until the PTO driveline clears
the hopper winch handle. Tighten bolts.
5. Secure the PTO drive guard to guard attach plate using 3/8” x 3/4” bolts and
washer locknuts, then tighten bolts (see Figure 7.).
6. Slide PTO drive guard over PTO driveline, then attach to gearbox using two
1/2” x 1" bolts and lock washers as shown in Figure 7.
7. Place PTO in transport position (place in transport saddle and secure with
saddle pin and hair pin).

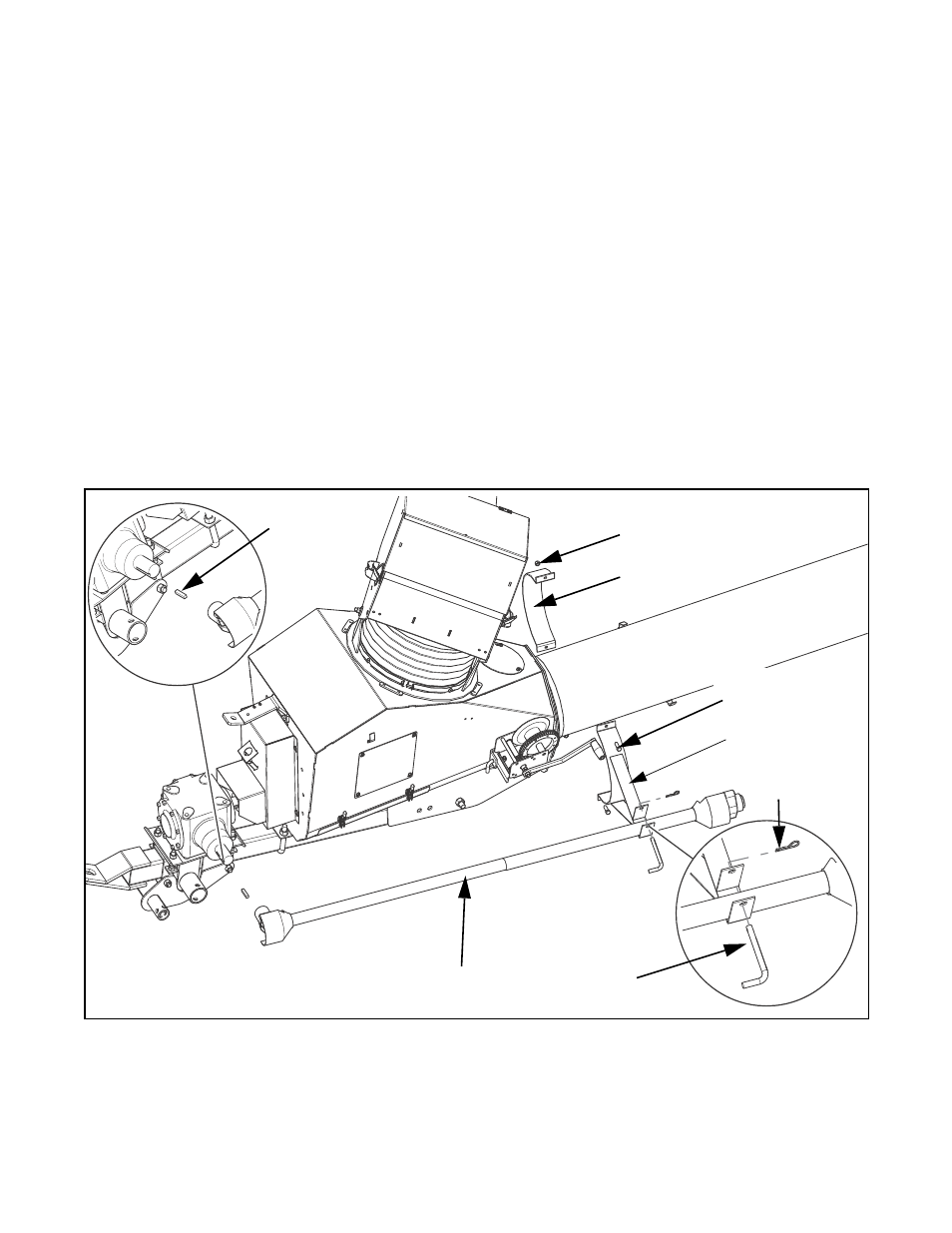

Figure 6 Installing the PTO Driveline
PTO TRANSPORT
SADDLE [17259]
7/16” LOCKNUTS [19898]
SADDLE
PIN [17181]
HAIR PIN [19643]
HALF BAND [18987]
3/8” X 1-3/4”
SQUARE KEY
[17066]
PTO DRIVELINE [17260]
7/16” X 1-1/4”
BOLTS [18698]
