Wheatheart X13 1000RPM PTO - Manual (Page 4)

4

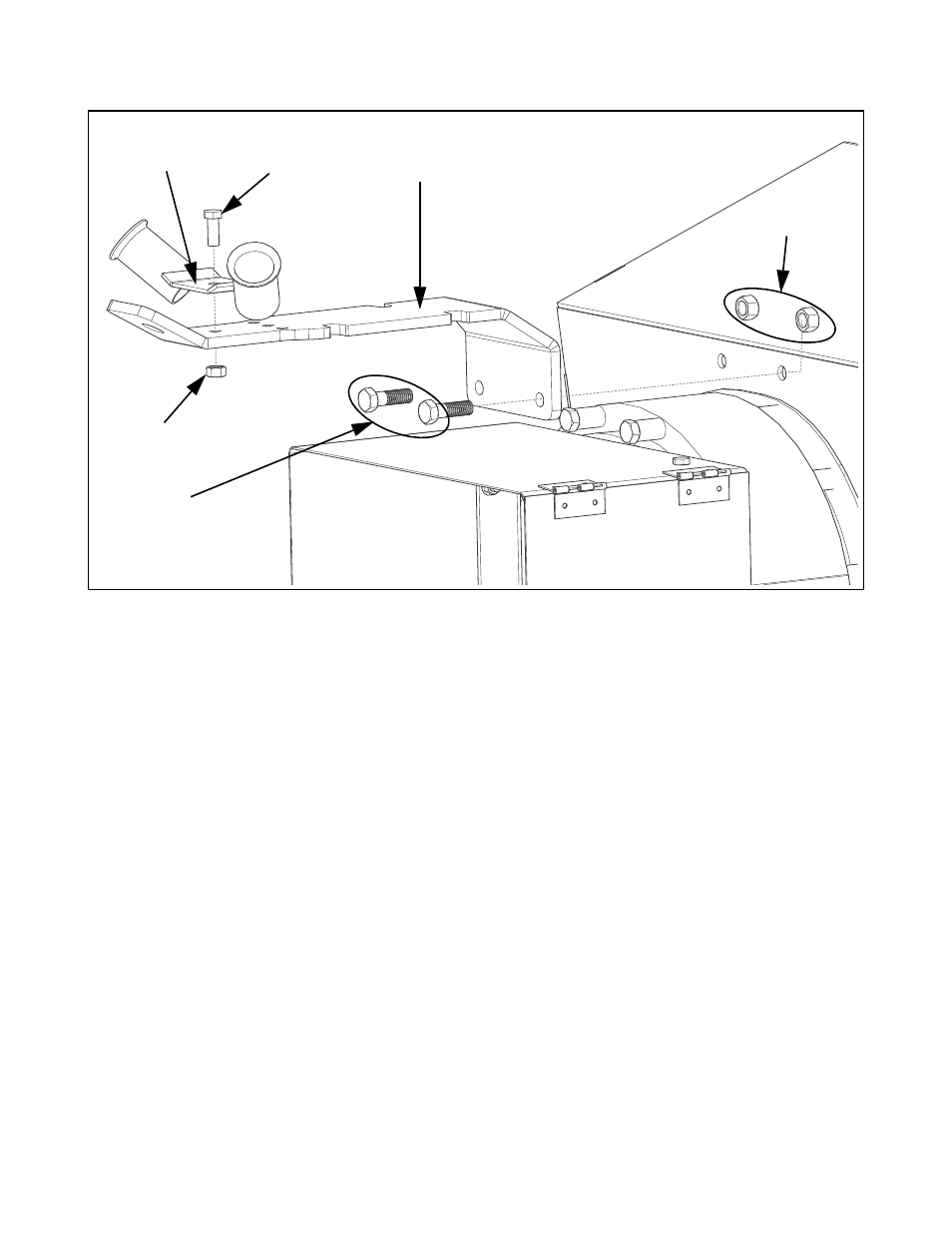

Figure 3 Installing PTO Transport Strap and Double Hose Holder
Note: Support boot securely so that the tow bar can be repositioned.
12. Remove the 3/4” x 5-1/2” bolt from tow bar (see Figure 4).
13. Loosen the two u-bolt 3/4” locknuts until the tow bar can move freely.
14. Slide the tow bar out of the boot channel until the hole in the tow bar lines up
with the last hole (closest to the intake end of the auger) in the boot channel.
15. Insert the 3/4” x 5-1/2” bolt through the last hole in the boot channel bolt hole
and secure the bolt with a 3/4” locknut.
16. Tighten the two u-bolt 3/4” locknut fully.
PTO TRANSPORT
STRAP [20043]
1/2” X 1-1/2” BOLTS
[19589]
1/2” LOCKNUTS
[17750]
DOUBLE HOSE
HOLDER [17467] 3/8” X 1” BOLT
[18955]
3/8” LOCKNUT [17402]
