3
6. Insert 1-1/4” short plug shaft into the upper hole in the gearbox. Secure with a
set screw.

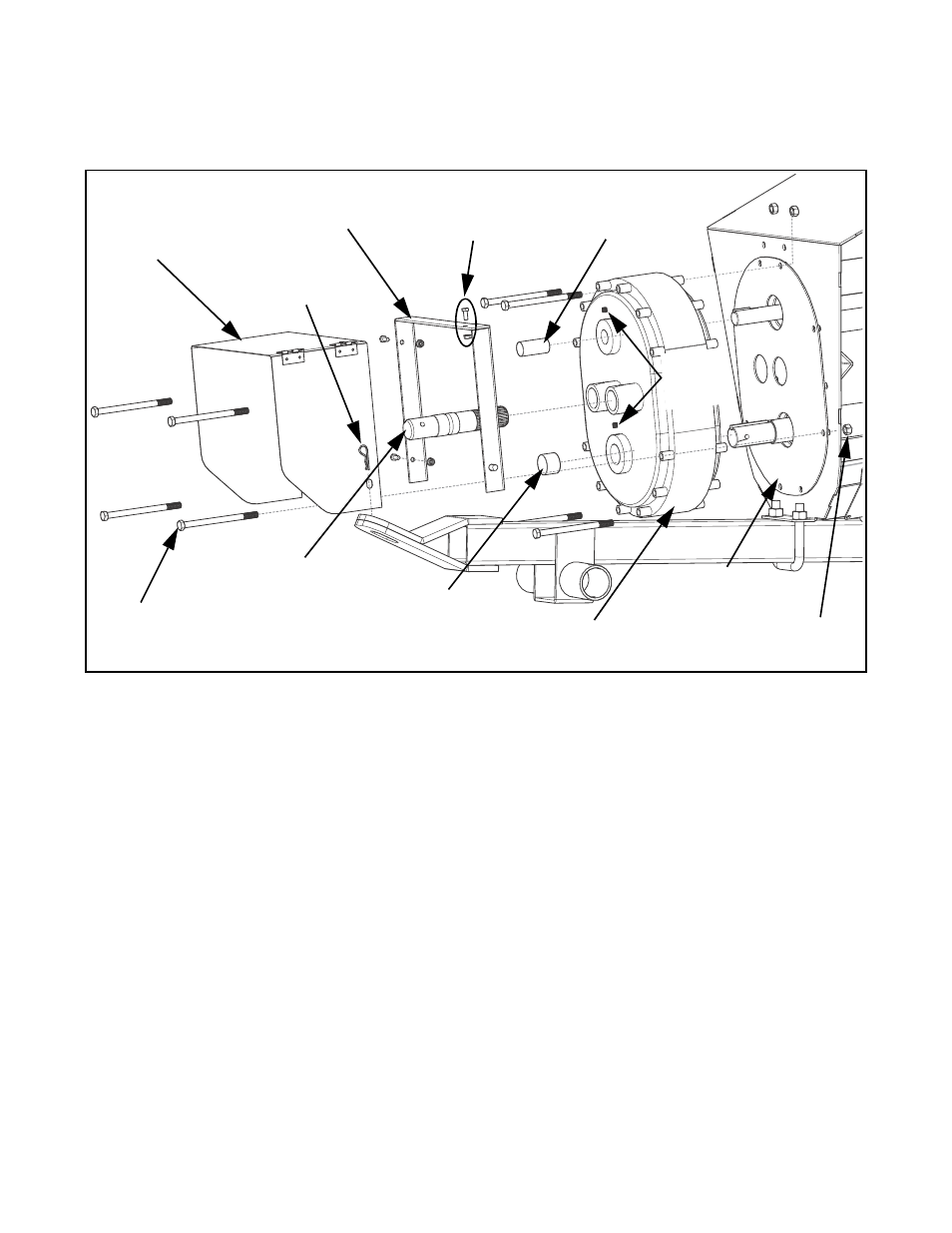

Figure 2 1000 RPM PTO Drive Installation
7. Insert 1-3/4” short plug shaft into the lower hole in the gearbox. Secure with a
set screw.
Note: Secure the set screws inside the shafts to gearbox.
8. Put the other four 1/2” x 7" mounting bolts through shield bracket, gearbox,
and front plate. Connect bolts with 1/2” locknuts. Tighten bolts and nuts
securely.
9. Install PTO shield onto shield bracket with three 5/16” x 3/4” bolts and
nuts.Tighten bolts and nuts securely. Secure the right hand side shield with a
3/16” x 1-1/4” hair pin through the snap pin.
10. Attach PTO transport strap to boot with two 1/2” x 1-1/2” bolts and nuts.
Tighten securely (see Figure 3).
11. Install the double hose holder to the strap with 3/8” x 1” bolt and 3/8” hex nut.
Tighten securely.
BOOT-SEALING
PLATE [29996]
GEARBOX [27710]
SPLINED STUB
SHAFT [28305]
1/2” X 7” MOUNTING
BOLT [27719]
PTO SHIELD
[20041]
SNAP PIN [19463]
1/2” LOCKNUT
[19599]
SHIELD BRACKET
[20040]
1-3/4” SHAFT
[27722]
5/16” X 3/4” BOLTS
[19538] & 5/16” WHIZ
NUTS [19980]
1-1/4’ SHAFT
[27721]
SET
SCREWS
[19608]
