I N D U S T R I A L C L U T C H P R O D U C T S
Model HC
D
A
B
C
D
E
H
I
F
J
K
G
M
N
L
COME
HOME
FEATURE
ACTUATION
OIL INLETS
COOLING
OIL INLETS
MAX.
MAX.
MAX.
K'W'Y.
+.000"
-.003"
+.003"
-.000"
OPTIONAL
DRIVE RING

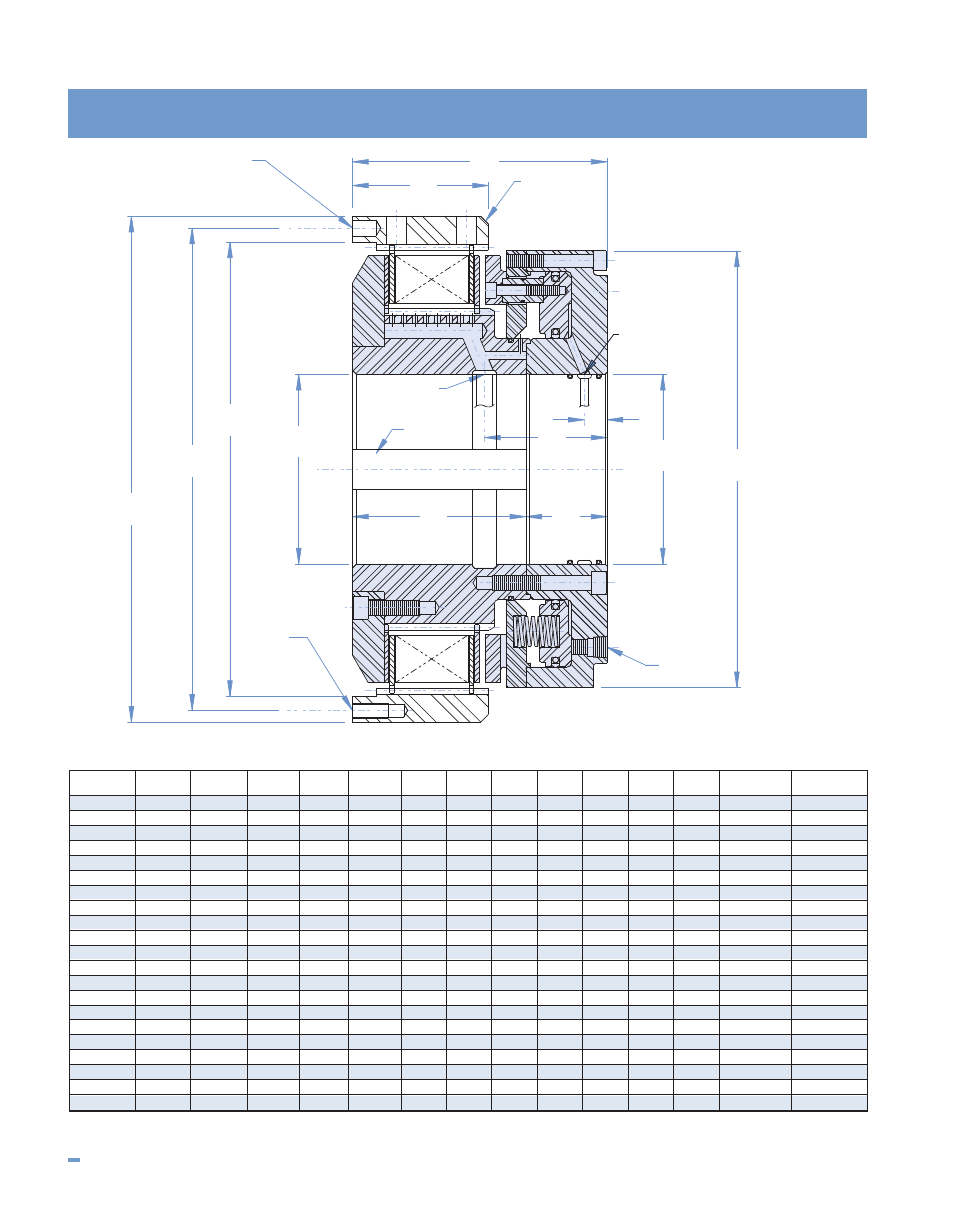

DIMENSIONAL DATA
All dimensions in inches
Clutch
Model
A
B
C
D
E
F
G
H
I
J
K
L
M
N
HC-8-6
10.124
9.4375
8.750
3.000
8.31
3.50
0.51
6.35
2.68
3.81
2.57
0.75
(12) - M10
(4) - .375
HC-8-8
10.124
9.4375
8.750
3.000
8.31
3.50
0.51
6.95
3.28
4.40
2.57
0.75
(12) - M10
(4) - .375
HC-8-10
10.124
9.4375
8.750
3.000
8.31
3.50
0.51
7.55
3.88
5.00
2.57
0.75
(12) - M10
(4) - .375
HC-10-6
11.749
11.063
10.375
4.000
9.81
3.63
0.56
6.54
2.97
4.24
2.38
1.00
(12) - M10
(4) - .500
HC-10-8
11.749
11.063
10.375
4.000
9.81
3.63
0.56
7.25
3.61
4.88
2.38
1.00
(12) - M10
(4) - .500
HC-10-10
11.749
11.063
10.375
4.000
9.81
3.63
0.56
7.89
4.25
5.52
2.38
1.00
(12) - M10
(4) - .500
HC-13-6
15.998
15.250
14.375
6.000
13.81
4.63
0.72
8.09
3.58
4.77
3.32
1.25
(12) - M12
(4) - .500
HC-13-8
15.998
15.250
14.375
6.000
13.81
4.63
0.72
8.80
4.30
5.48
3.32
1.25
(12) - M12
(4) - .500
HC-13-10
15.998
15.250
14.375
6.000
13.81
4.63
0.72
9.52
5.02
6.20
3.32
1.25
(12) - M12
(4) - .500
HC-15-6
18.373
17.375
16.375
6.500
15.75
4.43
0.78
9.06
4.37
5.74
3.31
1.50
(12) - M16
(4) - .625
HC-15-8
18.373
17.375
16.375
6.500
15.75
4.43
0.78
10.00
5.31
6.68
3.31
1.50
(12) - M16
(4) - .625
HC-15-10
18.373
17.375
16.375
6.500
15.75
4.43
0.78
10.94
6.25
7.62
3.31
1.50
(12) - M16
(4) - .625
HC-16-6
19.998
19.000
18.000
7.500
17.25
5.11
1.38
9.29
4.37
5.75
3.54
1.50
(12) - M16
(4) - .625
HC-16-8
19.998
19.000
18.000
7.500
17.25
5.11
1.38
10.23
5.31
6.69
3.54
1.50
(12) - M16
(4) - .625
HC-16-10
19.998
19.000
18.000
7.500
17.25
5.11
1.38
11.17
6.25
7.63
3.54
1.50
(12) - M16
(4) - .625
HC-18-6
21.998
20.750
19.500
8.000
18.63
5.50
1.50
10.96
5.82
7.13
3.81
1.50
(12) - M20
(4) - .750
HC-18-8
21.998
20.750
19.500
8.000
18.63
5.50
1.50
12.23
7.10
8.41
3.81
1.50
(12) - M20
(4) - .750
HC-18-10
21.998
20.750
19.500
8.000
18.63
5.50
1.50
13.51
8.38
9.69
3.81
1.50
(12) - M20
(4) - .750
HC-20-6
24.998
23.750
22.500
9.000
20.63
6.50
1.75
12.04
6.19
7.66
4.37
1.50
(12) - M20
(4) - .750
HC-20-8
24.998
23.750
22.500
9.000
20.63
6.50
1.75
13.32
7.47
8.94
4.37
1.50
(12) - M20
(4) - .750
HC-20-10
24.998
23.750
22.500
9.000
20.63
6.50
1.75
14.60
8.75
10.22
4.37
1.50
(12) - M20
(4) - .750
NOTES: 1.) Use certified drawing dimensions only for final layouts.
2.) DXF and IGES files available upon request.
3.) Dimensions subject to change without notice.
4.) All threaded fasteners are metric.
