5

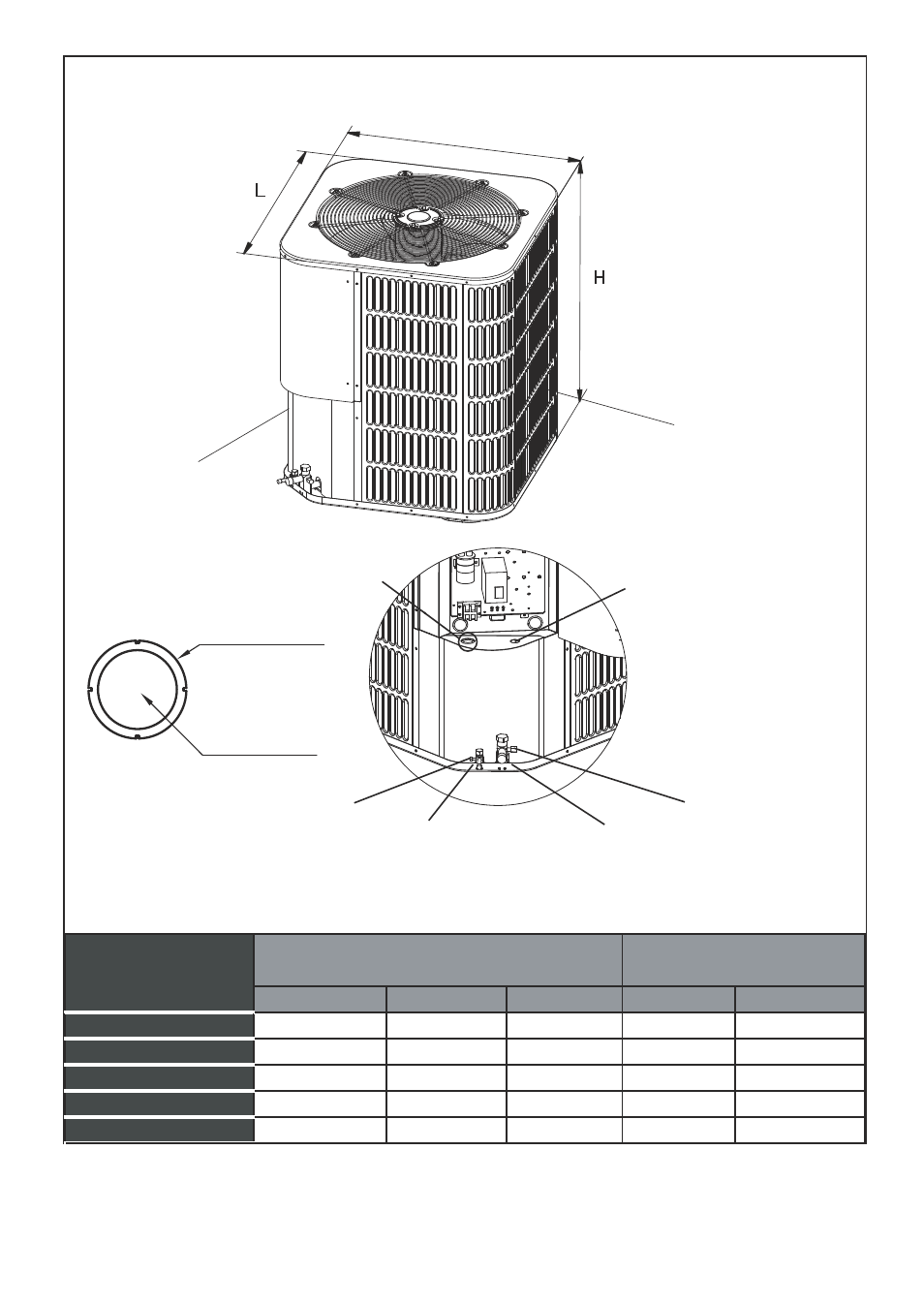

FIG.2 DIMENSIONS
DIMENSIONAL DATA
"H" in. [mm] "W" in. [mm] "L" in. [mm] Liquid in. Vapor in.
18 24-15/16[633] 28[710] 28[710] 3 /8 3 /4
24 29-1/8[740] 29-1/8[740] 3 /8 3 /4
30 29-1/8[740] 29-1/8[740] 3 /8 3 /4
36 29-1/8[740] 29-1/8[740] 3 /8 7/8
42 29-1/8[740] 29-1/8[740] 3 /8 7/8
MODEL SIZE
Dimensions (Inches)
Refrigerant Connection
Service Valve Size
24-15/16[633]
24-15/16[633]
33-3/16[843]
33-3/16[843]
AIR DISCHARGE: ALLOW 60”
MINIMUM CLEARANCE.
VAPOR LINE
CONNECTION
CONTROL WIRING
7/8” (22.2mm)
KNOCKOUT
1-11/32” (34.5mm)
LIQUID LINE
CONNECTION
SERVICE
FITTING
SERVICE
FITTING
POWER WIRING
SEE DETAIL A
DETAIL A
HOLE
1-3/32” (27.8mm)
SERVICE ACCESS
ALLOW 24” CLEARANCE
AIR INLETS
LOUVERED PANELS
ALLOW 18”
MINIMUM
CLEARANCE
NOTE: GRILL APPEARANCE
MAY VARY.
W
