Page 18

18
10.0 WIRING DIAGRAM
CAUTION
These units must be wired and installed in accordance with all National and
Local Safety Codes.
9.1 MAINTENANCE
. Dirt should not be allowed to accumulate on the outdoor coils or other parts in the air
circuit. Clean as often as necessary to keep the unit clean. Use a brush, vacuum
cleaner attachment, or other suitable means.
2.
The outdoor fan motor is permanently lubricated and does not require periodic oiling.
3.
If the coil needs to be cleaned, it should be washed with Calgon Coilclean (mix one
part Coilclean to seven parts water). Allow solution to remain on coil for 30 minutes
before rinsing with clean water. Solution should not be permitted to come in contact
with painted surfaces.
4. Refer to the furnace or air handler instructions for filter and blower motor maintenance.
5. The indoor coil and drain pan should be inspected and cleaned regularly to assure
proper drainage.
CAUTION
It is unlawful to knowingly vent, release or discharge refrigerant into the open air
during repair, service, maintenance or the final disposal of this unit. When the
system is functioning properly and the owner has been fully instructed, secure the
owner’s approval.
1.

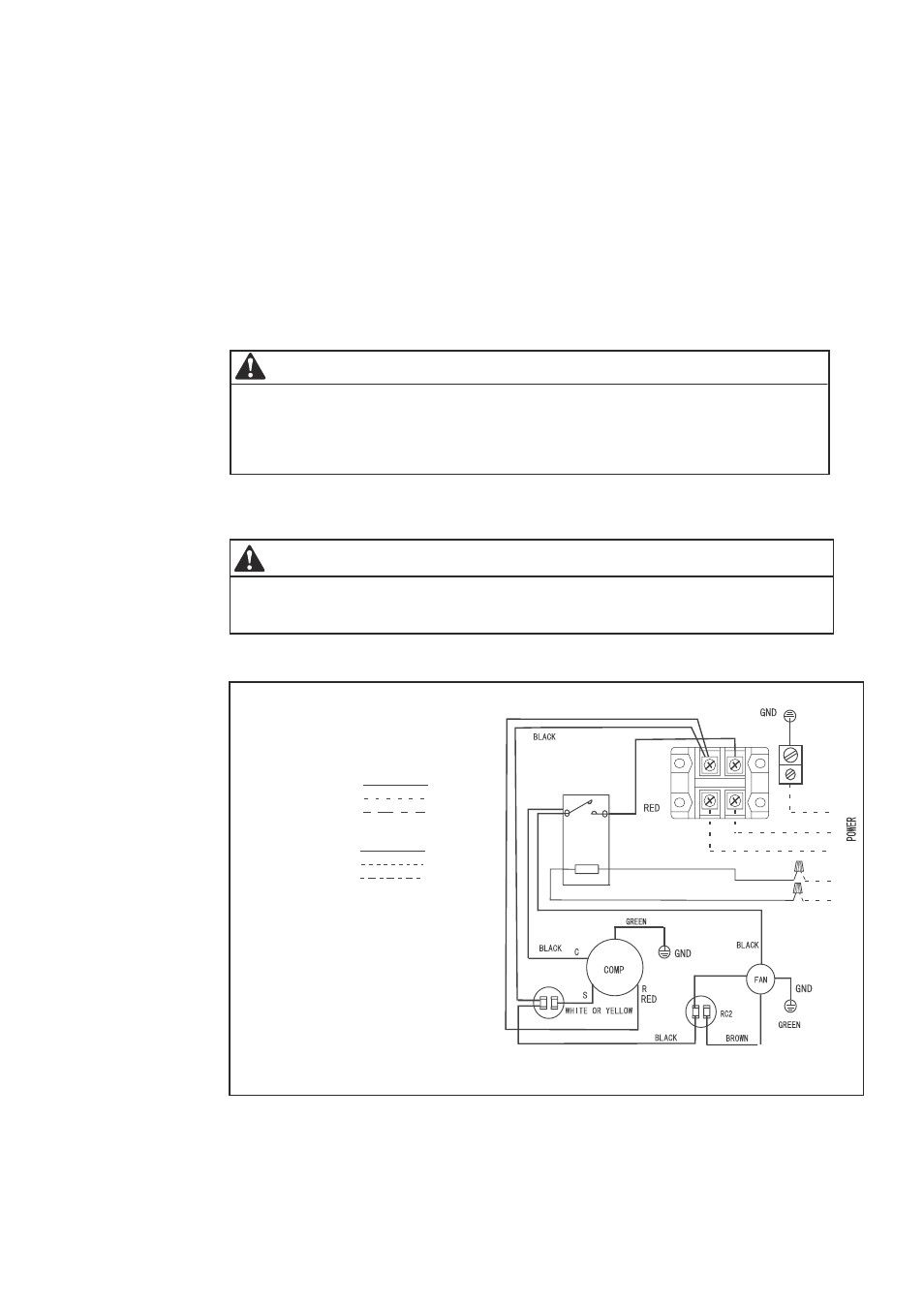

Fig.12 Outdoor Unit Wiring Diagram for A/C Systems(208/230V 1P 60Hz).
CC
COMPRESSORCONTACTOR
RC1
RUN CAPACITOR1
RC2
RUN CAPACITOR2
COMP
COMPRESSOR
LINEVO LTAGE
FACTORYSTANDARD
FIELDINSTALLED
OPTIONAL
LOW
FACTORY
VOLTAGE
FACTORYSTANDARD
FIELDINSTALLED
FACTORYOPTIONAL
USECOPPERCONDUCTORSONLY
WARNING:
CABINETMUSTBEPERMANMENTLY GROUNDE D
ANDALLWIRINGTOCONFORMTO I.E.C, N.E.C,
C.E.C, C.L.C, ANDLOCALCODESA S APPLICABLE
REPLACEMENTWIREMUSTBETHESAMEGAUG
E
AND INSULATION TYPE ASORIGINALWIRE.
ORANGE
A2
A1
T1
L1
BLACK
YELLOW
C
Y
RC1
L1
L2
CC
L1
L2
GND
T
A
T
S
O
M
R
E
H
T
O
T
Terminal Block
