How To Set The Regeneration Cycle Program:
The regeneration cycle program on your water condi-
tioner has been factory preset, however, portions of
the cycle or program may be lengthened or shortened
in time to suit local conditions.
3200 & 3210 Series Timers (Figure to Right)
To expose cycle program wheel, grasp timer in
upper left-hand corner and pull, releasing snap
retainer and swinging timer to the right.
To change the regeneration cycle program, the
program wheel must be removed. Grasp program
wheel and squeeze protruding lugs toward cen-
ter, lift program wheel off timer. (Switch arms may
require movement to facilitate removal)
Return timer to closed position engaging snap
retainer in back plate. Make certain all electrical
wires locate above snap retainer post.
Timer Setting Procedure for 3200 & 3210
Timer
How To Change The Length Of The Backwash
Time:

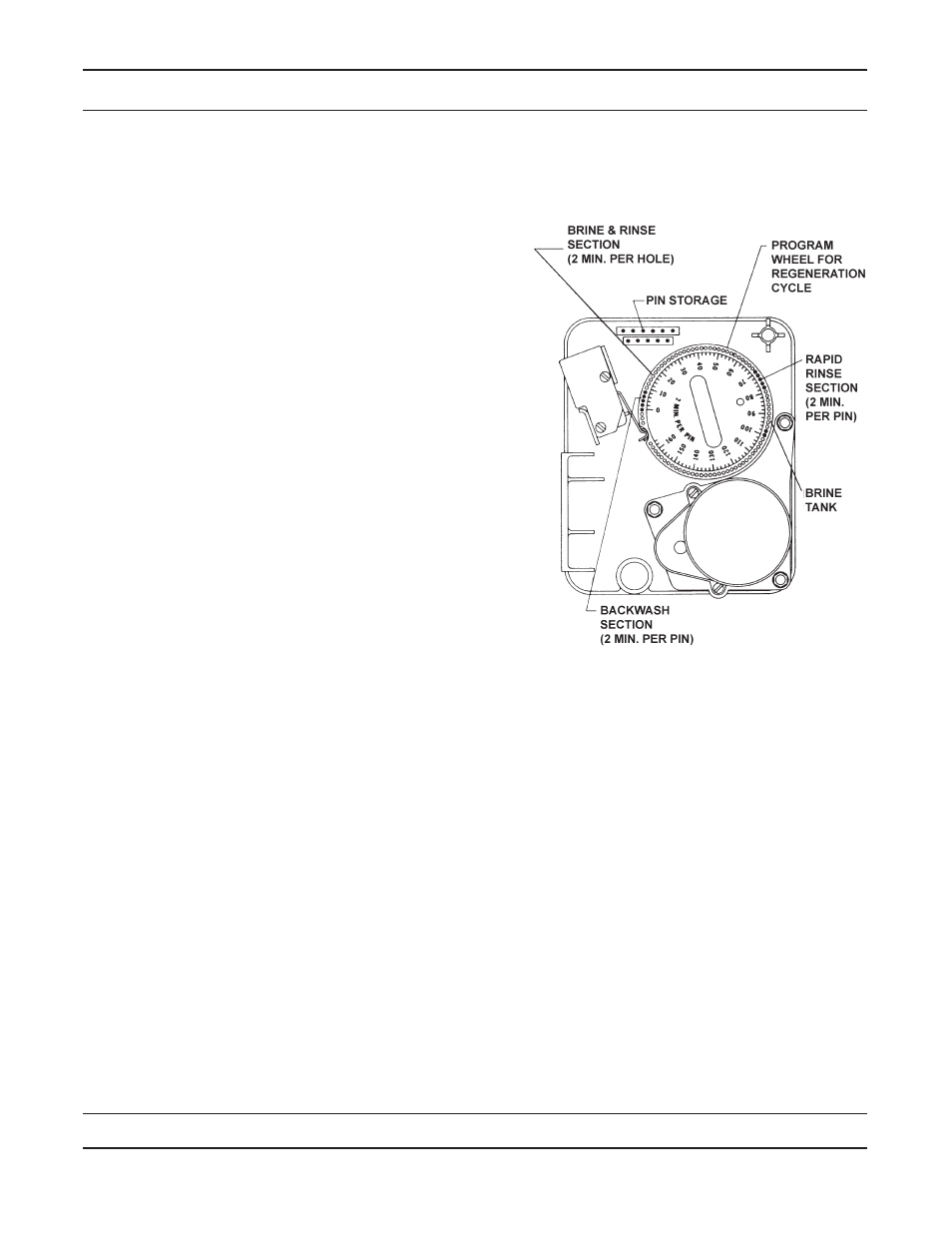

The program wheel as shown in the drawing is in the
service position. As you look at the numbered side of
the program wheel, the group of pins starting at zero
determines the length of time your unit will backwash.
EXAMPLE: If there are six pins in this section, the time
of backwash will be 12 min. (2 min. per pin). To change
the length of backwash time, add or remove pins as
required. The number of pins times two equals the
backwash time in minutes.
How To Change The Length Of Brine And Rinse
Time:
The group of holes between the last pin in the
backwash section and the second group of pins
determines the length of time that your unit will
brine and rinse (2 min. per hole.)
To change the length of brine and rinse time, move
the rapid rinse group of pins to give more or fewer
holes in the brine and rinse section. Number of
holes times two equals brine and rinse time in
minutes.
1.
2.
3.
1.
2.
How To Change The Length Of Rapid Rinse:
The second group of pins on the program wheel
determines the length of time that your water condi-
tioner will rapid rinse. (2 min. per pin.)
To change the length of rapid rinse time, add or
remove pins at the higher numbered end of this
section as required. The number of pins times two
equals the rapid rinse time in minutes.
How To Change The Length Of Brine Tank Refill
Time:
The second group of holes in the program wheel
determines the length of time that your water condi-
tioner will refill the brine tank (2 min. per hole.)
To change the length of refill time, move the two
pins at the end of the second group of holes as
required.
The regeneration cycle is complete when the outer
microswitch is tripped by the two pin set at end of
the brine tank refill section.
The program wheel, however, will continue to rotate
until the inner micro-switch drops into the notch on
the program wheel.
1.
2.
1.
2.
3.
4.
Regeneration Cycle Program Setting Procedure
(Brine Tank Refill Separate from Rapid Rinse)
