Page 75

KONA v10.5
www.aja.com
75
HDMI Screen in 4K
Mode
The HDMI screen allows you to make the same selections previously described for
Standard Mode when an SD, HD, or 2K format is selected (refer to
).

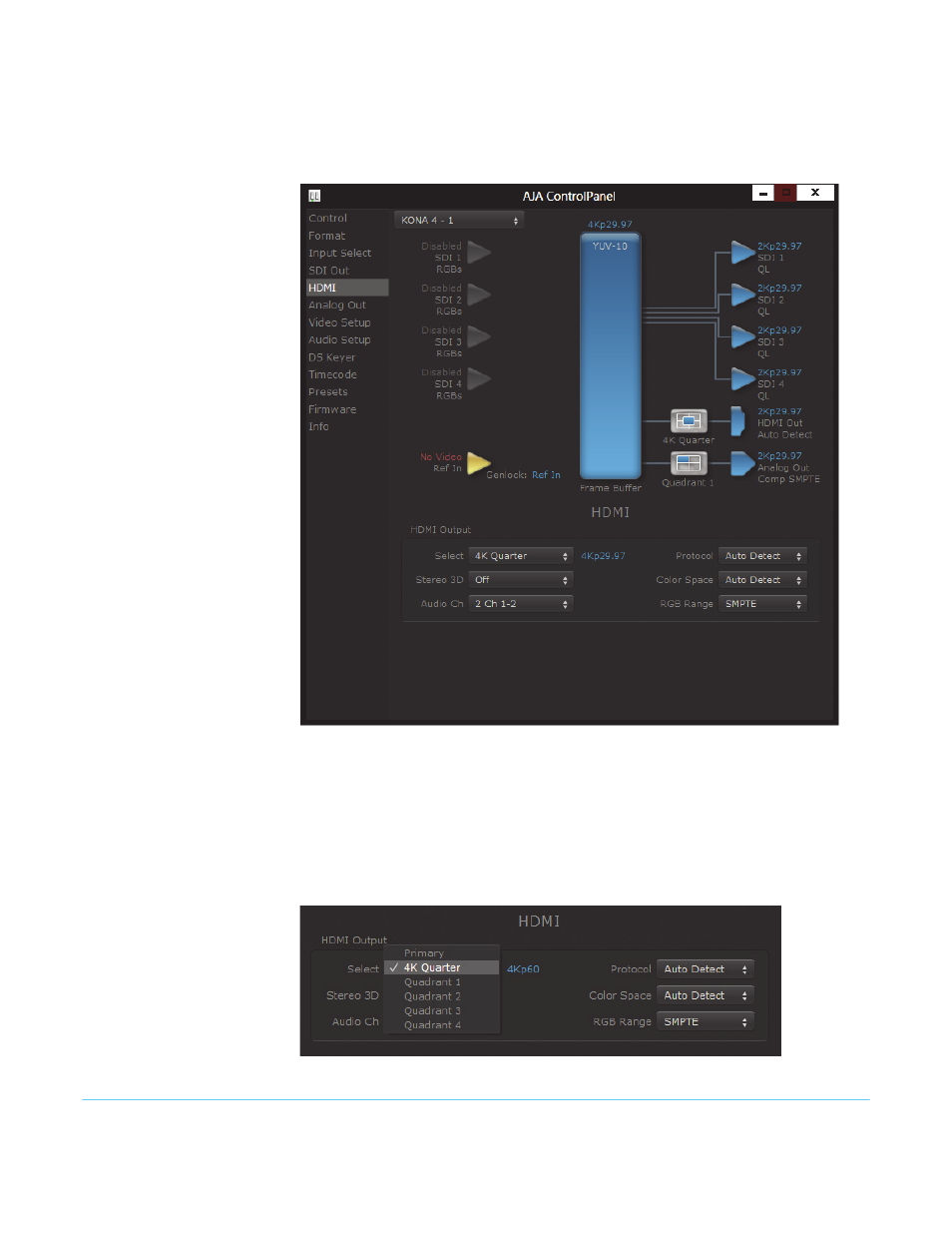

Figure 70. HDMI Output Screen with Quad HD Output Configuration
Exclusive to UHD/4K formats, an HDMI monitor output Select menu is available to
choose:
• Primary – the full 4K or UHD format
• 4K Quarter – (in KONA 4) a downconversion to 2K x 1080 in 4K or 1920 x 1080 for UHD.
• A single Quadrant (1, 2, 3, or 4) of the 4K or UHD signal (see the discussion on 4K
quadrant mapping at this beginning of this section).
Figure 71. HDMI 4K Quadrant Selection Menu
