KONA v10.5 www.aja.com 29
LHi Cable
Connections

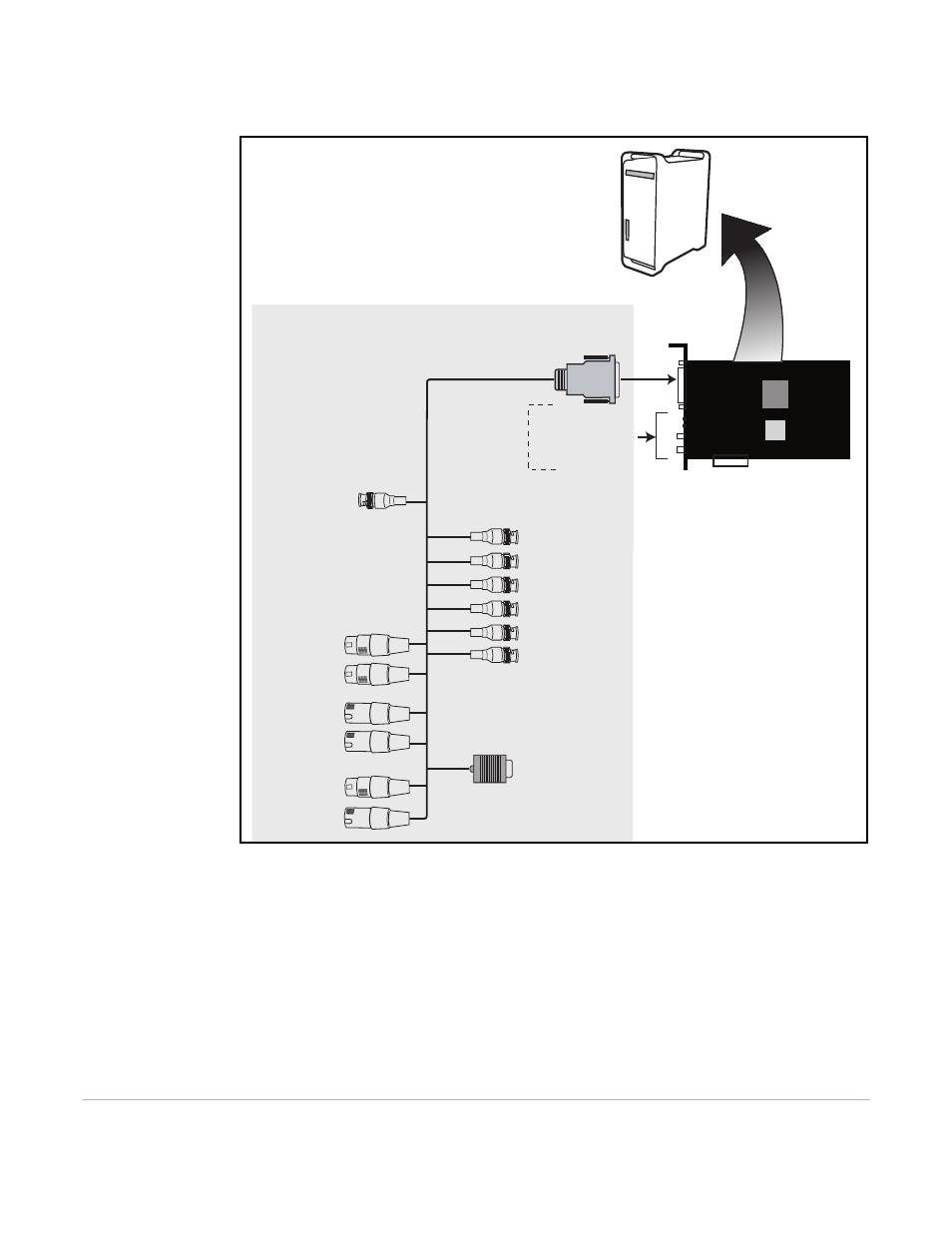

Figure 16. KONA LHi System Using The Breakout Cable
Typical System A figure on the following page shows typical system interconnections for a system with
digital A/V sources. Your system may differ depending on VTRs, audio monitoring, and
video monitoring.
1. If desired, connect your house reference sync to the KONA LHi Ref Loop connector
(BNC). The second KONA LHi Ref Loop connector on the KLHi-box (if used) can be
connected to the VTR or terminated with a 75-ohm terminator. If instead using LTC
timecode input, connect to the Ref Loop input.
2. Connect an HDMI Video Monitor to the KONA LHi HDMI Out connector. Or instead,
use the Component Analog Video Out BNC connectors to go to an analog monitor.
6 BNCs (Analog Connections):
Can be Configured for
Component,
Composite,
or Y/C
Standard Breakout Cable
KONA LHi
Installs in
PCI-Express Slot
in computer
Reference Input BNC
or LTC input
(switchable via KONA
Control Panel)
RS422
Machine Control
to VTR
(9-pin)
HDMI Input
HDMI Output
SDI Input BNC
SDI Output BNC
Y/CVBS In BNC
Pb/Y In BNC
Pr/C In BNC
Y/G/CVBS Out BNC
Pb/B/Y Out BNC
Pr/R/C Out BNC
green
blue
red
green
blue
red
Analog Audio
Channel 1 Input
Analog Audio
Channel 2 Input
Analog Audio
Channel 1 Output
Analog Audio
Channel 2 Output
AES Input
Channels 1 & 2
AES Output
Channels 1 & 2
60-pin connector
To KONA LHi
Balanced Audio
Analog Video
SD/HD/3G-SDI
and HDMI
Video/Audio
Connections
