Operating features – Wood’s Powr-Grip MT10FS10TAC User Manual
Page 7
Rev 25.0/9-13
5
MT-HV11AC: #35089

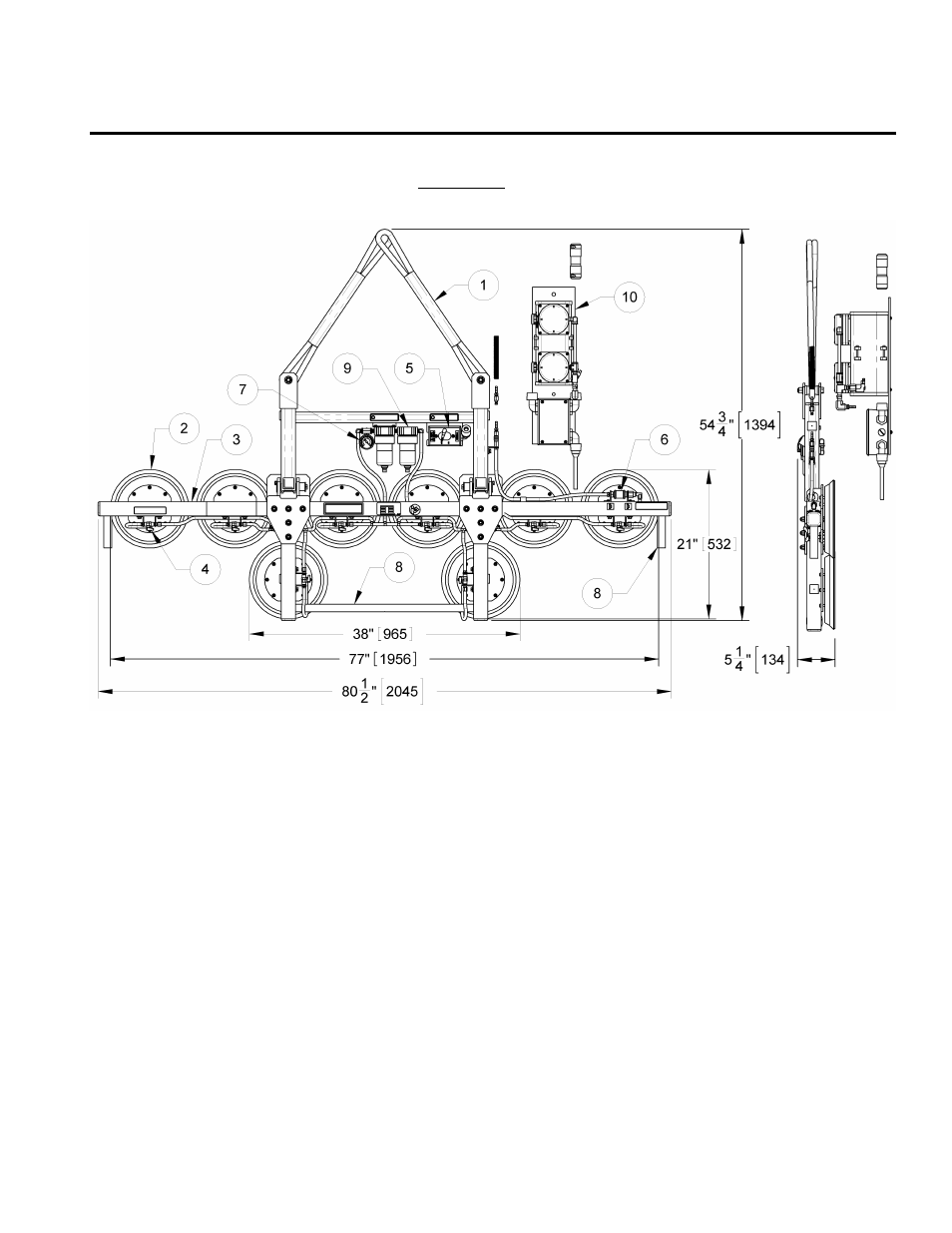

OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.
Standard MT8HV11FAC shown.
1 LIFT SLING
6 PAD FRAME CONTROL VALVE
2 VACUUM PAD
7 VACUUM GAUGE
3 PAD FRAME
8 CONTROL HANDLES
4 VACUUM PAD SHUTOFF
9 AIR FILTERS
5 POWER SWITCH
10 VACUUM PUMP
