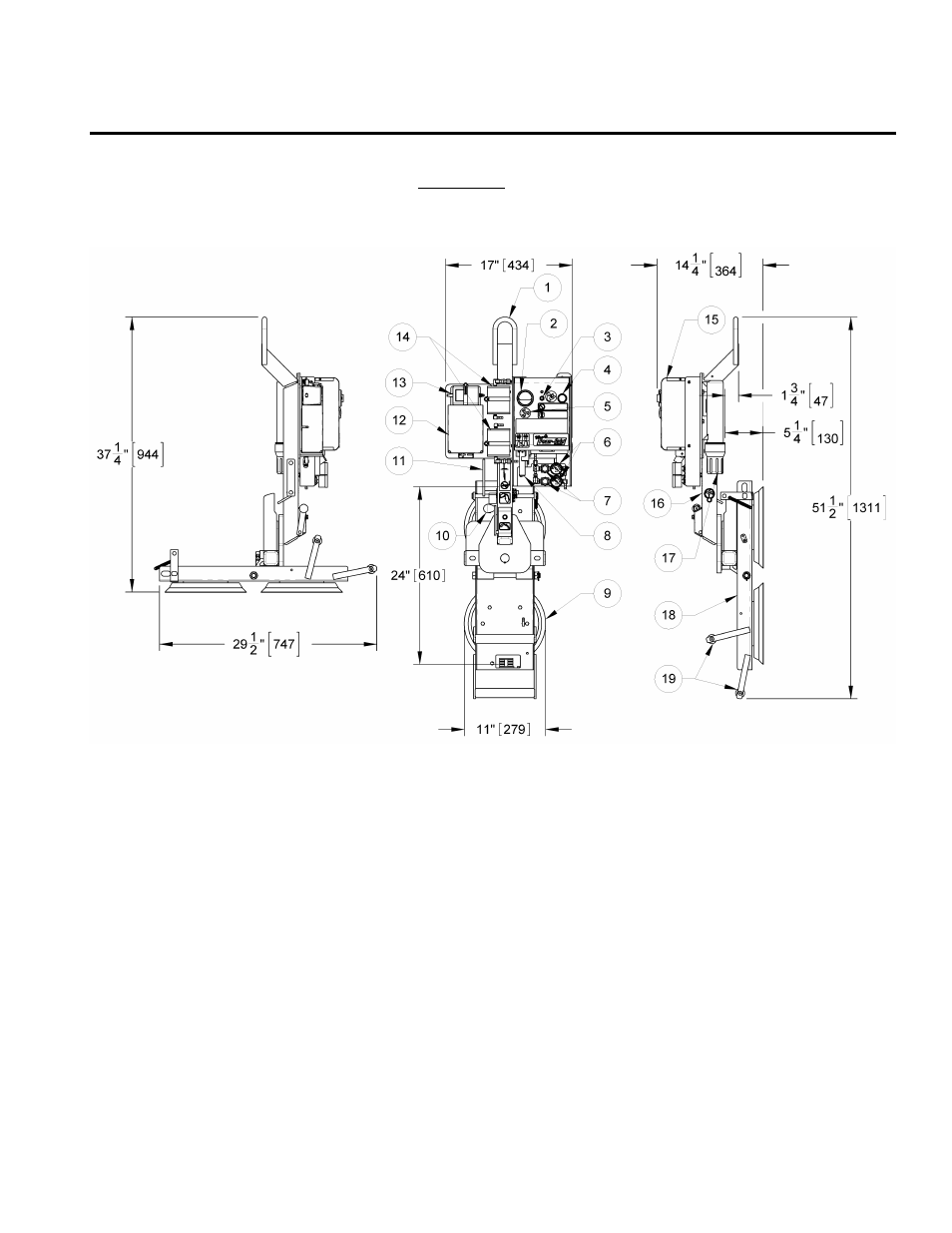

OPERATING FEATURES

Note: Components featured in the following instructions for assembling, operating or

maintaining the vacuum lifter are underlined on their first appearance in each section.

Standard P1HV1102DC shown.

1 LIFT BAIL

10 ROTATION RELEASE LEVER

2 BATTERY GAUGE

11 TILT RELEASE LEVER

3 BATTERY TEST BUTTON

12 BATTERY

4 LOW VACUUM WARNING LIGHT

13 BATTERY CHARGER

5 LOW VACUUM WARNING BUZZER

14 VACUUM RESERVE TANKS

6 VACUUM GAUGES

15 Enclosure with VACUUM PUMP and VACUUM SWITCHES

7 AIR FILTERS

16 LIFT BAR

8 VALVE HANDLE

17 INSTRUCTIONS CANISTER

9 VACUUM PAD

18 PAD CHANNEL

19 CONTROL HANDLES
