OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.

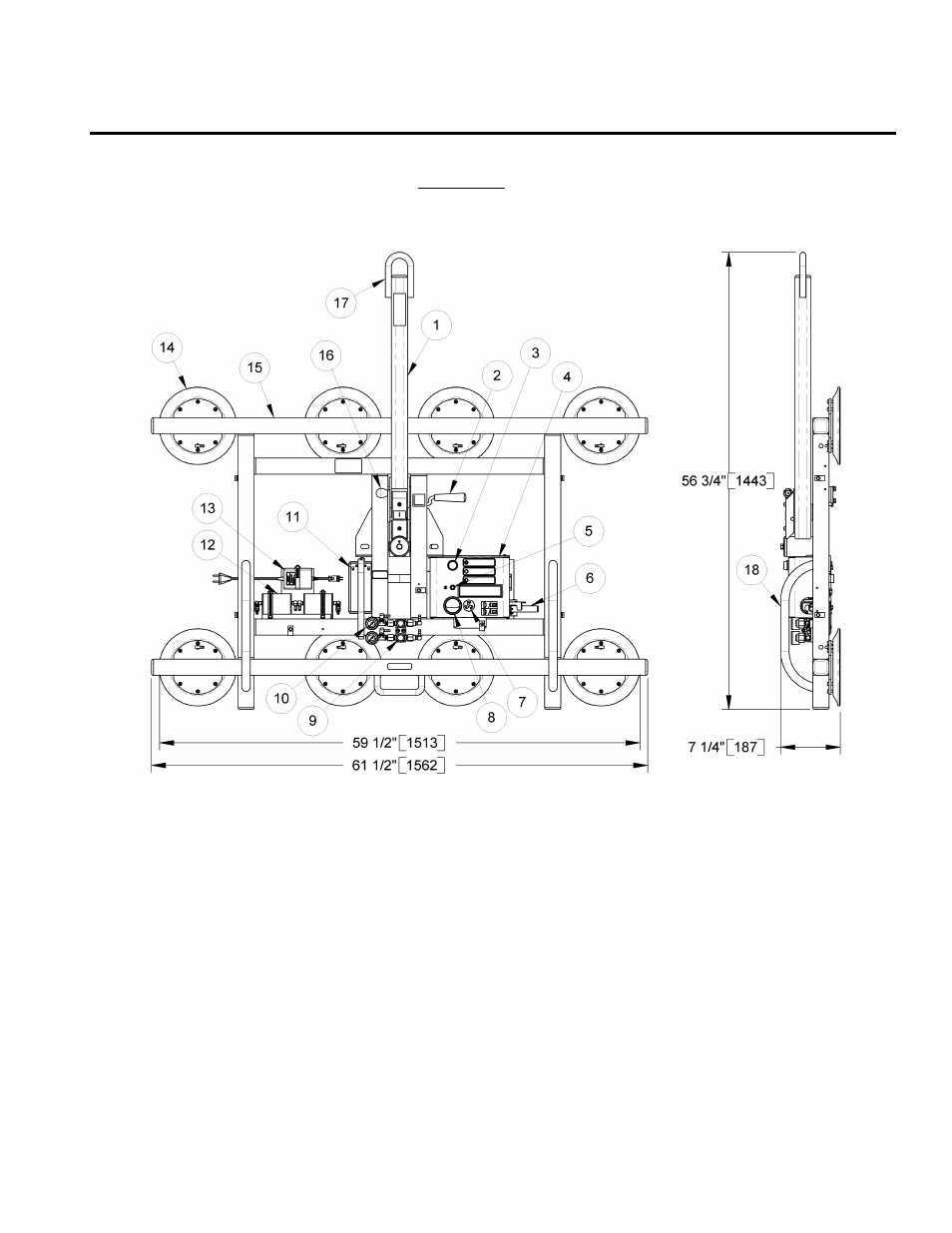

Standard PFHL89DCO shown with Dual Vacuum System option.
1 LIFT BAR
6 VALVE HANDLE
13 BATTERY CHARGER
2 TILT RELEASE LEVER
7 LOW VACUUM WARNING BUZZER
14 VACUUM PAD
3 LOW VACUUM WARNING LIGHT
8 BATTERY GAUGE
15 PAD FRAME
4 Enclosure with VACUUM PUMP
9 AIR FILTERS
16 ROTATION RELEASE LEVER
and VACUUM SWITCH
10 VACUUM GAUGES
17 LIFT BAIL
5 BATTERY TEST BUTTON
11 BATTERY
18 CONTROL HANDLE
12 VACUUM RESERVE TANKS
