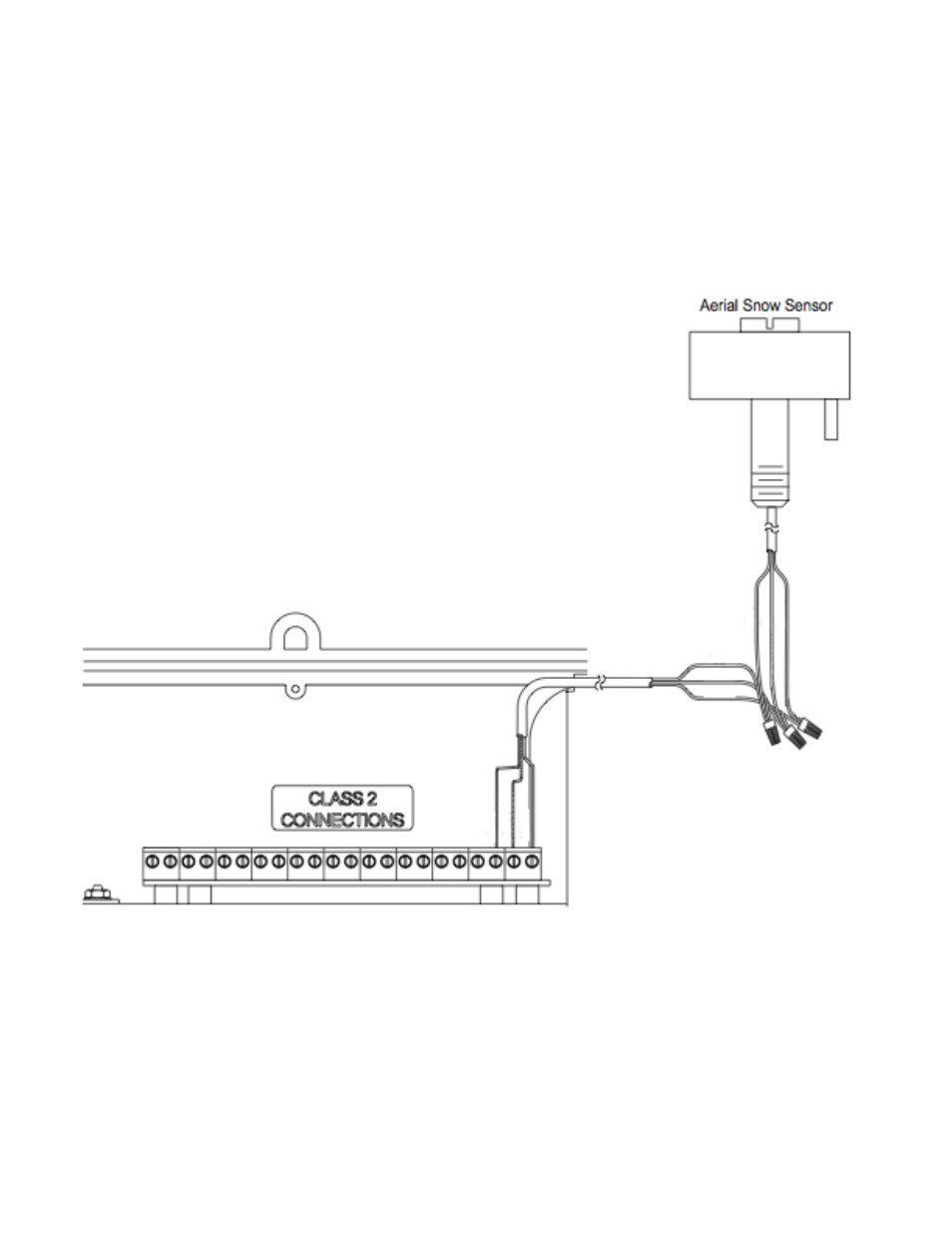

Figure 19: SCP-120 Sensor Connections

22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Red

Black

White

Red

Black

White

AIR-SS
