Pavement Ends 43911 Rear Bumpers - Manual (Page 2)

43911 pg 2 0411 Rev. A

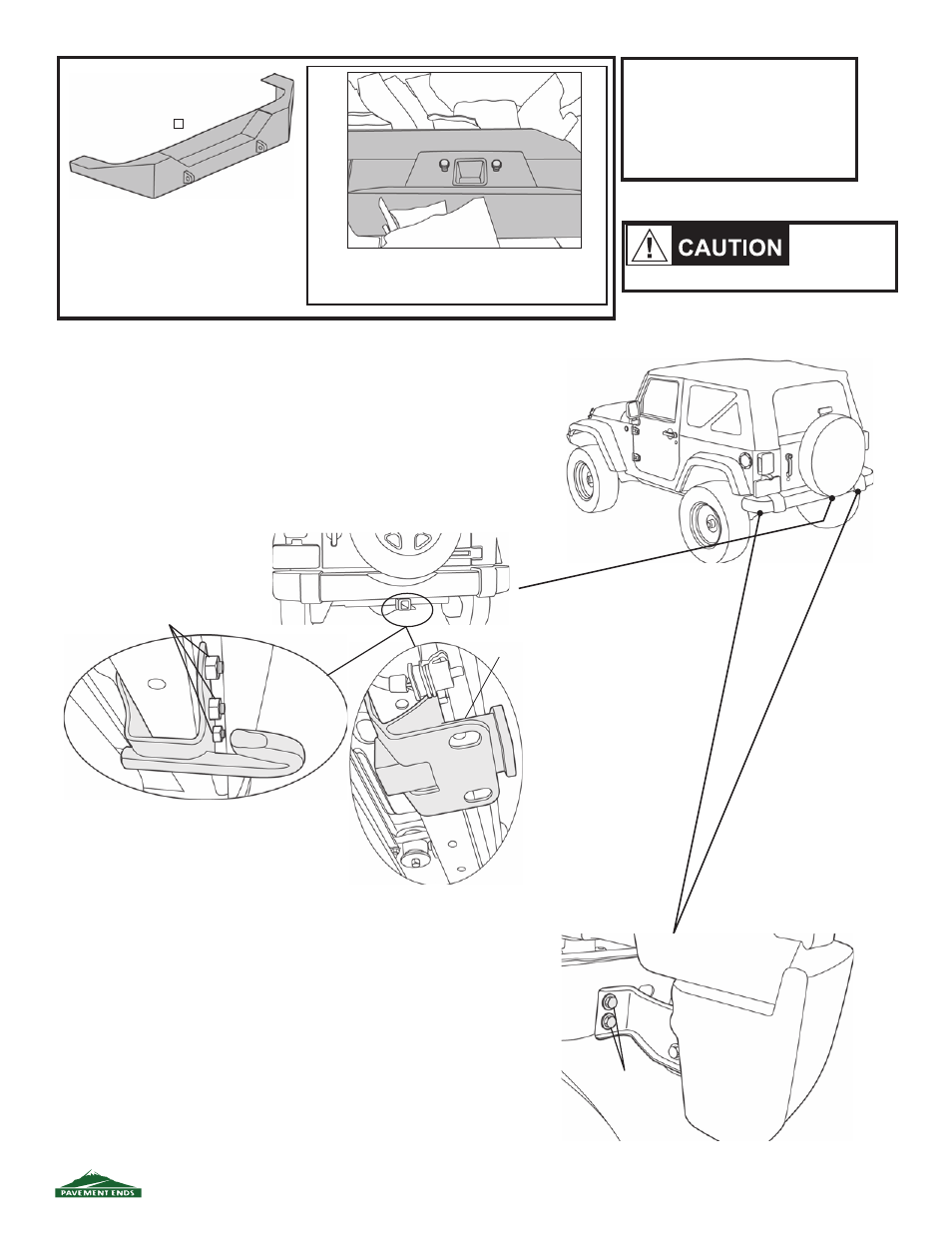

Step One
R EMOVE T OW H ITCH OR T OW H OOK
If you do not have a tow hitch or tow hook, proceed to Step 2.
If your vehicle is equipped with a tow hitch or tow hook, you
will need to remove it before you remove the factory bumper.
To remove a tow hitch, use a wrench with an 18mm socket
to remove the four (4) bolts that secure it to the bumper and
discard them.
If you have a tow hook, use a wrench with an 18mm socket
to remove the three (3) bolts that mount it to the bumper and
discard them.
Step Two
R EMOVE B OLTS ON END OF F ACTORY B UMPER
Use a socket wrench and 5/8" socket to
remove the two (2) bolts on each side of the
bumper that attach it to the frame. Set the
bolts aside to be re-used.
Tools Needed
Ratchet
18mm and 5/8" Sockets
Hammer
18mm and 5/8" Wrenches
Safety Glasses
Rear Bumper, Part
Number 43911, Qty - 1
Two or more
people may be
required to lift the bumper safely.
2 Hex Bolts
2 Lock Washers
2 Washers Already installed on Rear Bumper.
Remove the foam packaging to
access these parts.
Remove 4 Bolts that
Mount Tow Hitch
Remove 3 Bolts that
Mount Tow Hook
View from under bumper
View from
under bumper
Bumper
Remove Bolts
and Set Aside
