6. Install P/N 173167, BRACE-FRAME, LH to the left of
center, just above the frame with the “L” shaped plate
to the front. Fit the holes in the “L” shaped plate over
the pins installed in the previous step.
a. First secure the rear of P/N 173167 with two (2)
“U” bolts P/N 9D989 and four (4) 5/8-11 hex lock
nuts. Position the “U” bolts from below the tube
up into the rear plate of the weldment (See
Figure 1-5).
b. Secure the front of P/N 173167 by placing one
(1) flat washer P/N 1-861-010032-24 and one (1)
cotter pin, P/N 172810 on each pin as seen in
the figure below.
c. Place P/N 173534 below the front tube and
secure with four (4) 5/8-11 x 6 hex head bolts.
Orient the bolts from the bottom upward when
possible. Secure the bolts with 5/8-11 hex lock
nuts.

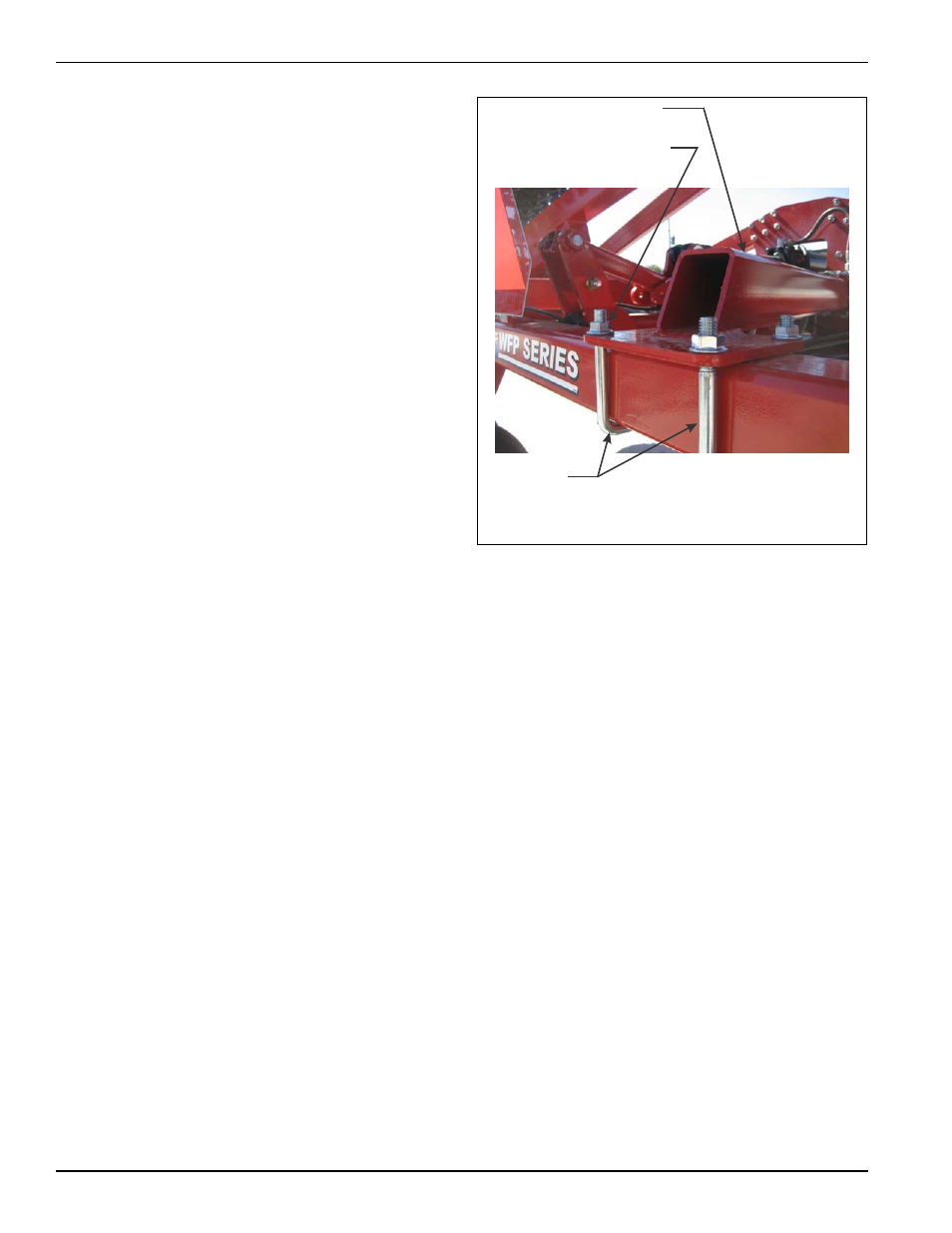

Figure 1-5
BRACE - FRAME, LH
5/8-11 HEX LOCK NUT
U-BOLT
photo 2b
