BAttEry rEpLAcEmENt
1. Open the battery compartment by pulling the compartment lid at the
indentations, away from the trigger (see Thermometer Attributes
section).
2. remove and recycle exhausted batteries.
3. replace 2 x AAA alkaline batteries observing the polarity indicated
on the inside markings.
4. return compartment lid and make sure it locks into place.
Diameter at Spot
Distance to Object
0.5”
1”
2”
4”
6”
12”
24”
48”
DistANcE tO spOt rAtiO
The distance-to-spot ratio is a representation of how focused the IR sensor
is on the measurement area. The closer you are to the surface you are
measuring, the smaller the area of measurement is.
The IR2000 has a 12:1 distance-to-spot ratio. This means that if you are
12 feet away from an air vent, the vent should be 1 foot or less in diameter
in order to resolve the most accurate measurement.

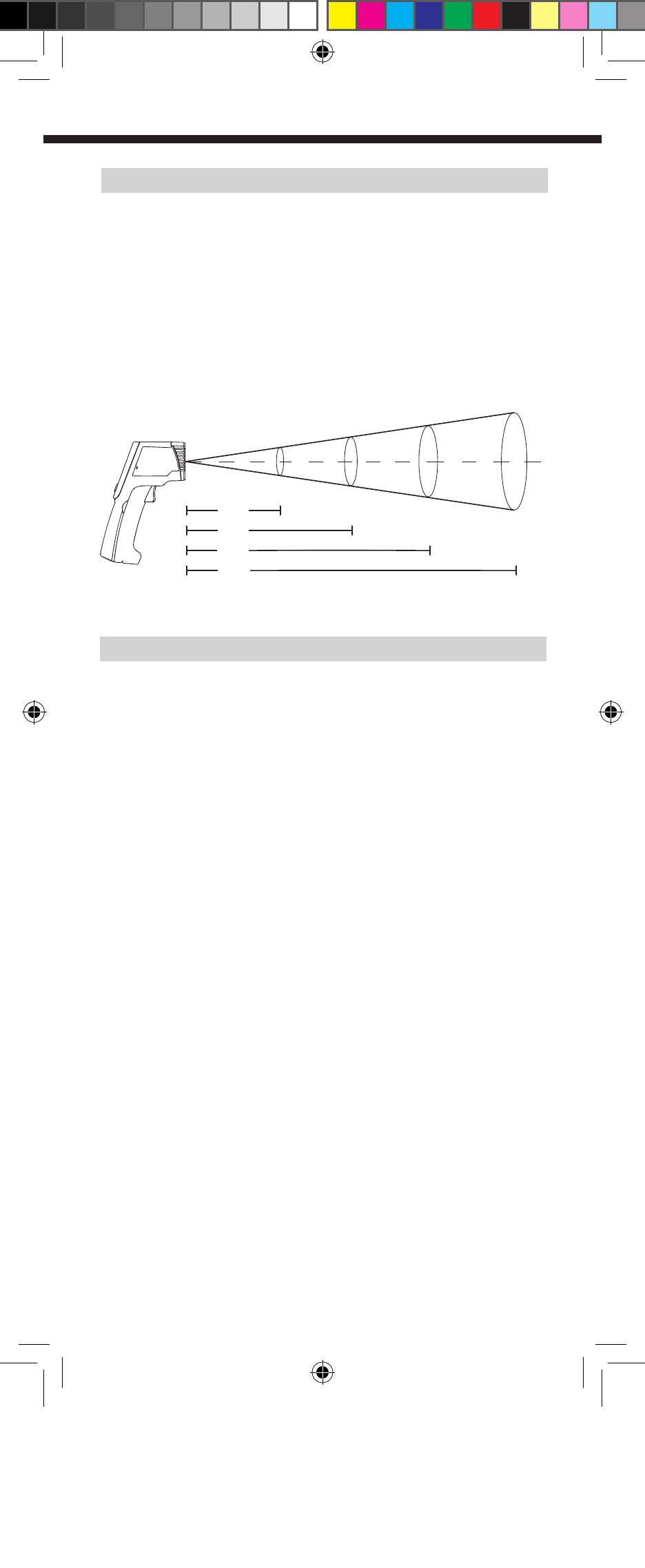

Below is an illustration of other example measurements.
