Klein Tools IR2000 - Manual (Page 3)

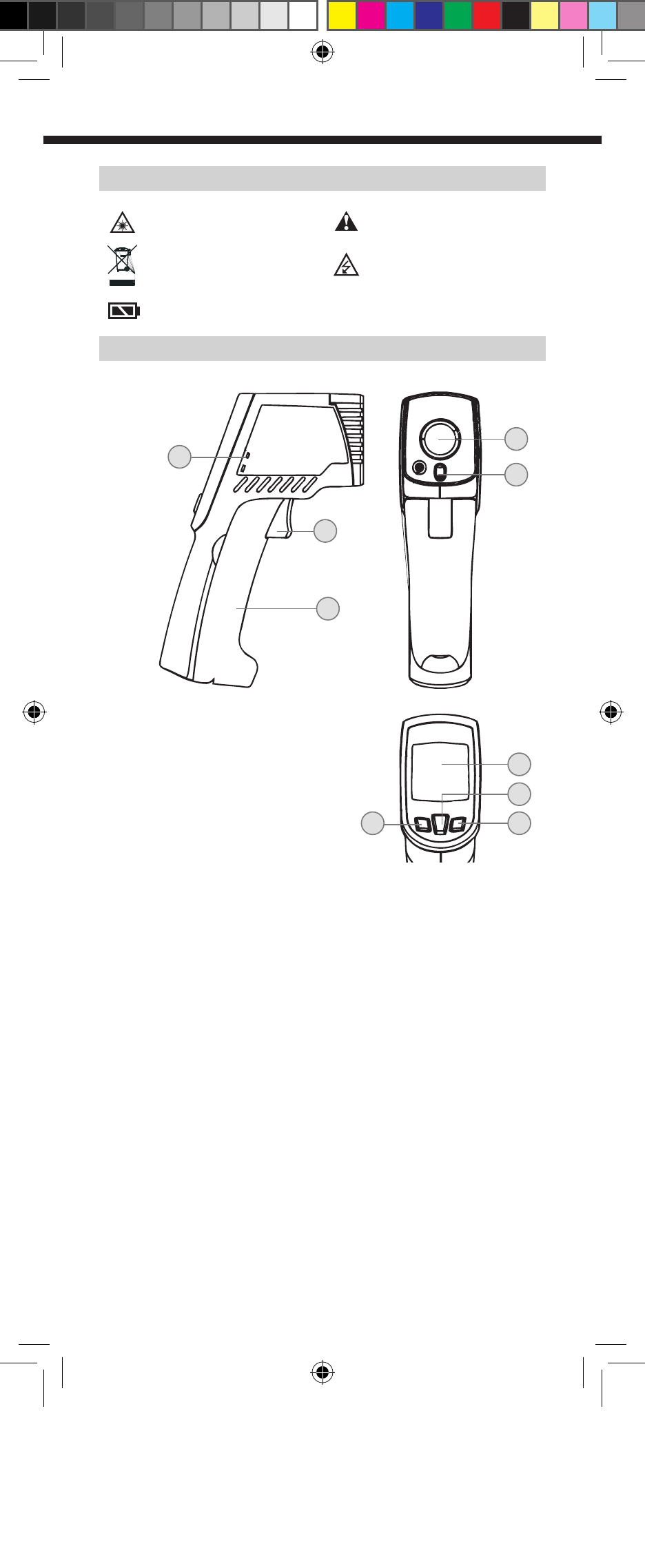

tHErmOmEtEr AttriButEs
symBOLs
Laser Warning or caution
Follow safe disposal
procedures
Dangerous levels
Battery
1. trigger:
Initiates measurement.
2. thermocouple input:
Optional K-Type thermocouple
measurement.
3. ir sensor:
Collects temperature data.
4. Battery compartment:
Pops forward to store 2 x AAA batteries.
5. Dual Laser:
Provides an approximate target area for making measurements.
6. LcD screen:
Displays measurement and additional information.
7. mode Button:
Changes the mode of the secondary display.
8. Down Button:
Changes temperature scale, decreases threshold, decreases
emissivity, or toggles laser depending on the mode.
9. up Button:
Enters auto-scan (trigger lock) mode, increases threshold, increases
emissivity, or toggles backlight depending on the mode.
1
2
3
4
5
9
7
8
6
