10
USB:
This symbol means the EUROSTAR station is communicating via
a USB cable.
The symbol no longer appears if no USB cable is being used for
communicating with the station.
Home:
This symbol means that the Wireless Controller is connected to the
EUROSTAR station and is communicating with the EUROSTAR
station via the charging contacts.
The symbol no longer appears if the Wireless Controller is removed
from the EUROSTAR station.
Battery pack (rechargeable battery):
This symbol indicates the charging status of the RB 1 battery
pack within the Wireless Controller.
The charging symbol appears if the Wireless Controller
- is connected to a PC via a USB cable
- is connected to a EUROSTAR station via a USB cable
- is connected to the power supply unit OS 1.0 via a USB cable
- is connected to the EUROSTAR station via the charger contacts.
Gear ratio (speed range):
The stirrer has two different speed ranges:
Range I: low speed / high torque.
Range II: high speed / low torque.

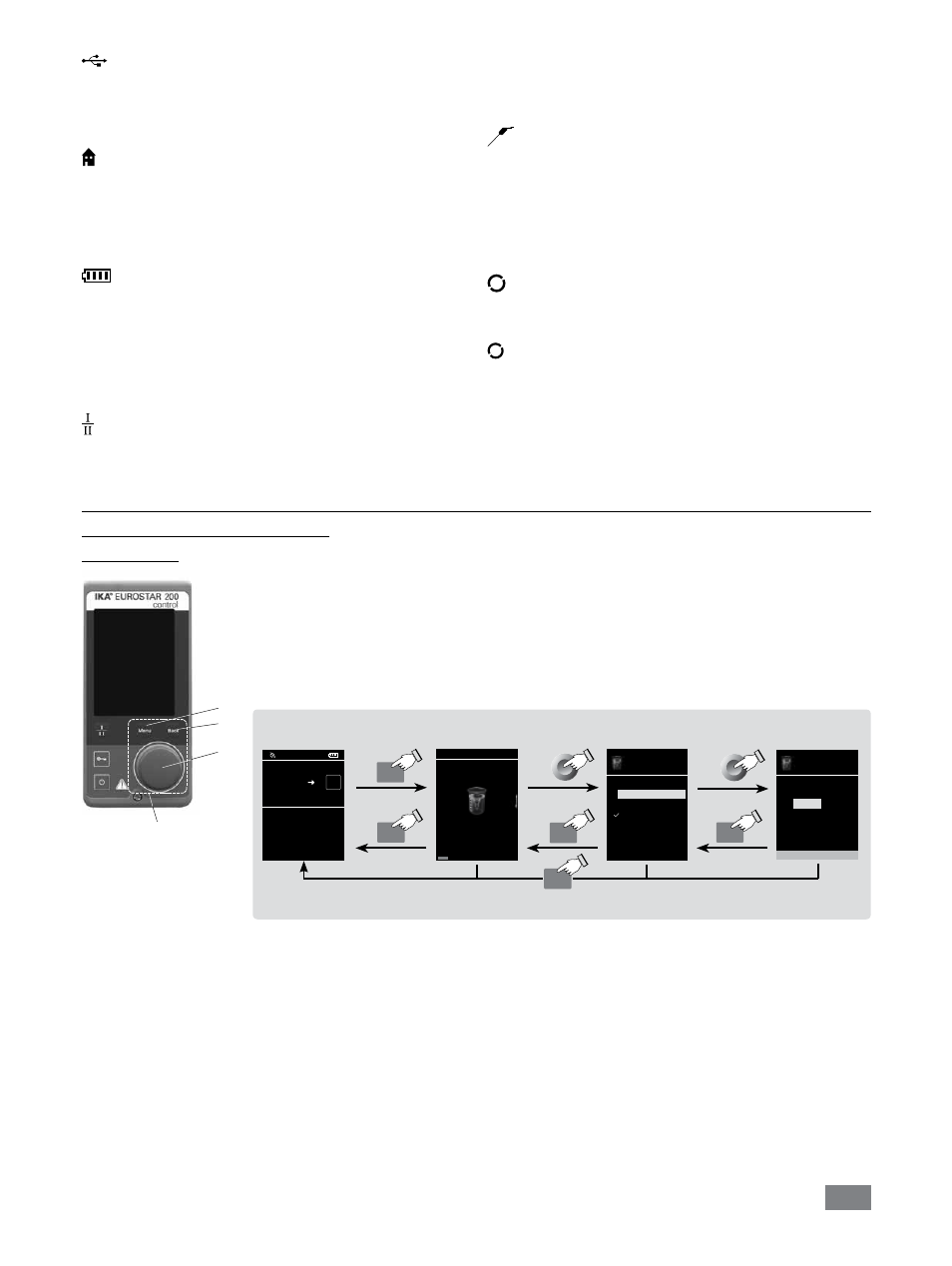

Navigation controls in
the menu
B
N
O
Navigation menu and menu structure
Navigation menu
Navigation menu:  Press the “Menu“ button (N) and turn the rotary/push knob (B)
 Press the "Back" button (O) or the "Menu" button (N)
Note: If you press the “Menu“ button (N), the system skips directly back to the working screen.
If you press the “Back“ button (O), the system skips back to the previous display.
Menu
Tempe
Stirring
Torque Calibration
Stirring
Intermittent Mode
Torque Display
Torque Limit
Speed Limit
LIMIT Speed limit:
This symbol indicates upper speed limit set for the stirrer. The setting
of the EUROSTAR in delivery status is the maximum permissible
speed of the stirrer.
Temperature sensor:
This symbol appears when the temperature display is active in the
display.
PC
controlled
PC control:
This symbol means that either the EUROSTAR station or the
Wireless Controller is connected to a computer and the stirrer is
being controlled from the computer.
Continuous mode:
This symbol indicates that the stirrer is in continuous mode and
indicates the direction of rotation of the stirrer.
00:00
Intermittent mode:
This symbol indicates that the stirrer is in intermittent mode.
 Press the "Menu" button (N).
 Select the menu by turning the rotary/push knob (B) to the right or left to select the desired menu or
sub-menu, which can then be selected by pressing the rotary/push knob.
 Press or turn the rotary/push knob (B) again to select the desired menu option and edit the values or
settings, or activate/deactivate a function.
 Turn the rotary/push knob (B) to "OK" and press the "Back" button (O) or "Menu" button (N) to end the
procedure and return to the previous menu or working screen.
Note: The menu option activated is highlighted yellow in the display.
 Stirring
Speed Limit
Speed Limit
2000
rpm
OK
Menu
Back
Menu
Back Back
B
0
0
actual rpm
set rpm
Torque:
0
Ncm
Reset Torque  Back
Timer:
00:00:00
I
