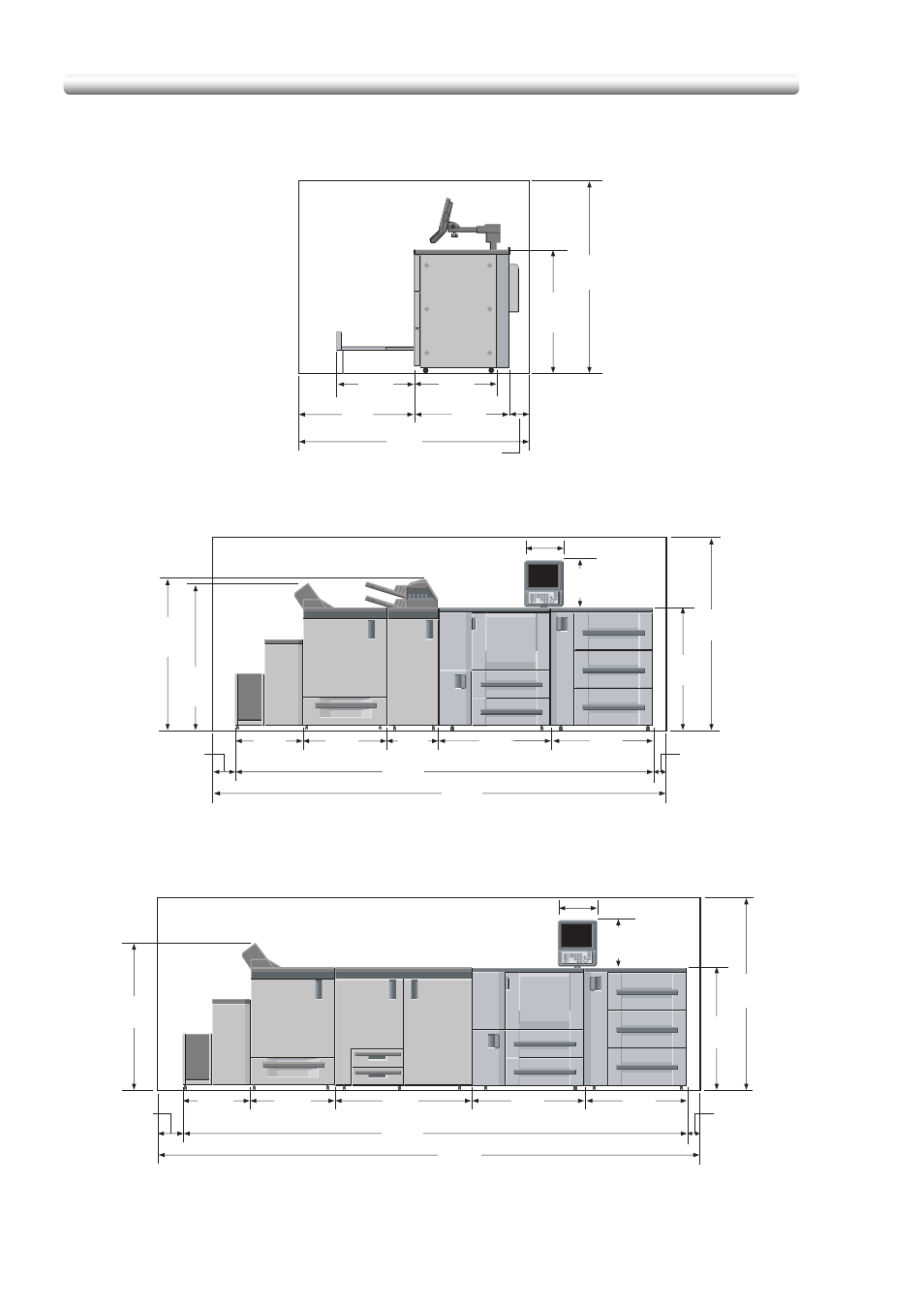

1050P/1050eP Installation Space (continued)

10

37.4

(950)

30.5

(775)

7.9(200)

40.2

(1020)

62.2

(1580)

Unit: inches (mm)

26.6

(675)

30.2

(766)

75.8

(1925)

Main body + PF-701 + SD-506 (Side view)

15.3

(389)

12.0(306)

134.1

(3405)

145.9

(3705)

31.8

(807)

3.9

(100)

35.2

(895)

29.1

(740)

22.2

(563)

15.7

(400)

7.9

(200)

48.5

(1231)

48.1

(1223)

Unit: inches (mm)

Main body + PF-701 + FD-503 + PB-502

62.2

(1580)

40.2

(1020)

Main body + PF-701 + SD-506 + PB-502

15.3

(389)

62.2

(1580)

12.0(306)

164.4

(4175)

176.2

(4475)

31.8

(807)

3.9

(100)

35.2

(895)

7.9

(200)

40.2

(1020)

48.1

(1223)

Unit: inches (mm)

46.1

(1170)

29.1

(740)

22.2

(563)
