Hardware Description
1.1 Hardware Interface
• 24 x Port 10/100Mbps auto-negotiation RJ45 port
• All
ports
support
auto
MDI/MDIX, no need to use
cross-over cables
1.2 Panel
1.2.1 Front Panel
The front panel of the Switch consists of LED indicators, and
24 10/100Mbps ports. The figure below shows the front panel
of the Switch.

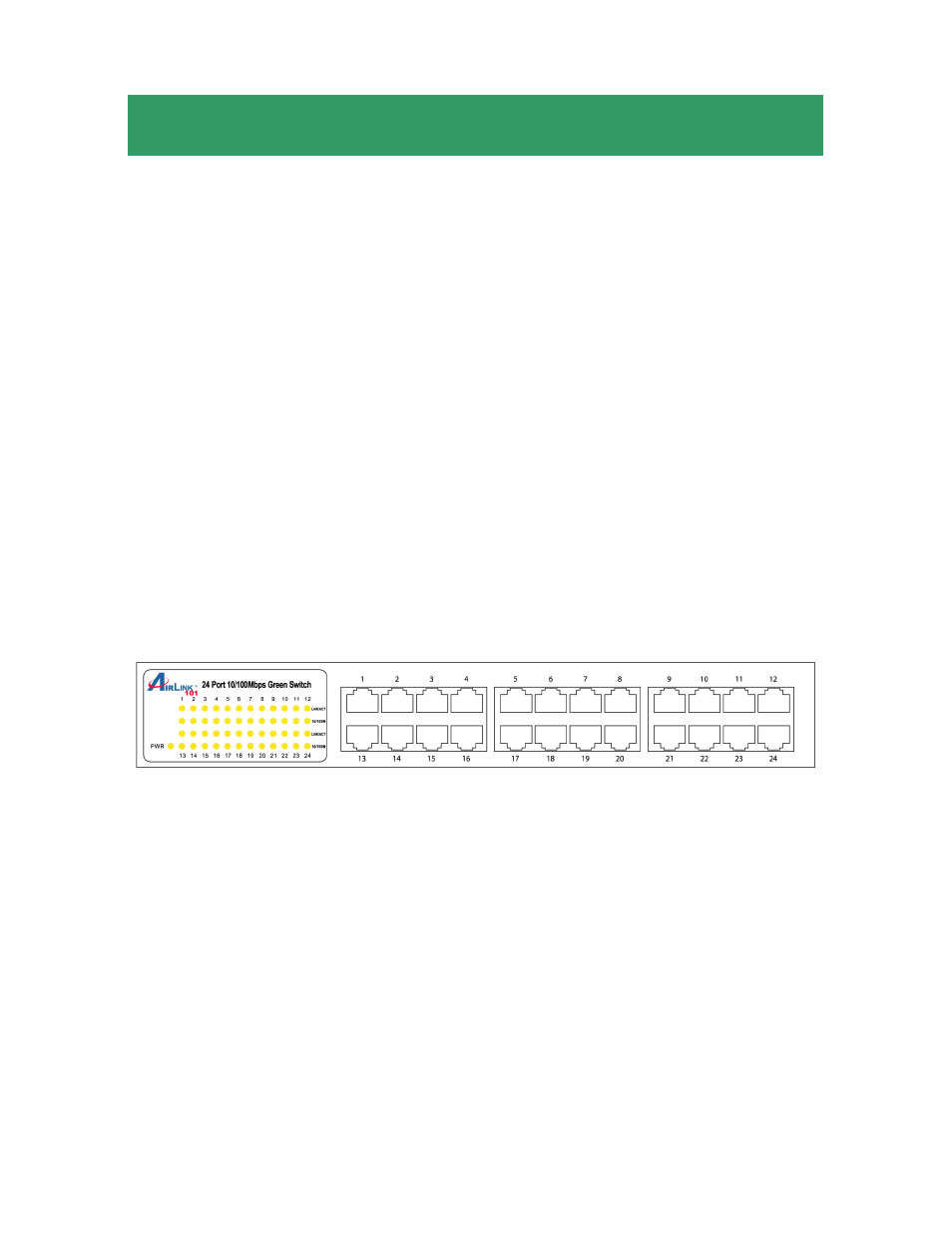

Figure 1-1 Front Panel View of the Switch
• 10/100Mbps Ports (Port 1~24): These ports support
10/100Mbps, and can operate in Half/Full Duplex transfer
modes. These ports also support automatic MDI/MDI-X
crossover detection, offering true “plug and play” function.
• LED Indicators: Comprehensive LED indicators display
the status of the Switch and the network (see Section
1.2.3).
