9. Remove bearing housing (134) from shaft (122)
with bearings (112A) (Fig. 85). 10. Remove bearing locknut (136) and bearing
lockwasher (382) (Fig. 86).
11. Remove outboard bearing (112A).
NOTE: When pressing bearings off the shaft,
use force on the inner race only.
NOTE: Save bearings for inspection.
ALL MODELS
DISASSEMBLY OF BEARING FRAME
1. Remove oil fill plug (113A), oil drain plug (408A),
sight glass (319), sight oiler plug (408J), four (4)
oil mist/grease connection plugs (408H), and oil
cooler inlet and outlet plugs (408L, 408M) or oil
cooler from bearing frame (228A).
2. MTX, LTX: Remove bearing frame foot-to-frame
bolts (370F), and frame foot (241).
ANSIFAM IOM - 5/08
67
6

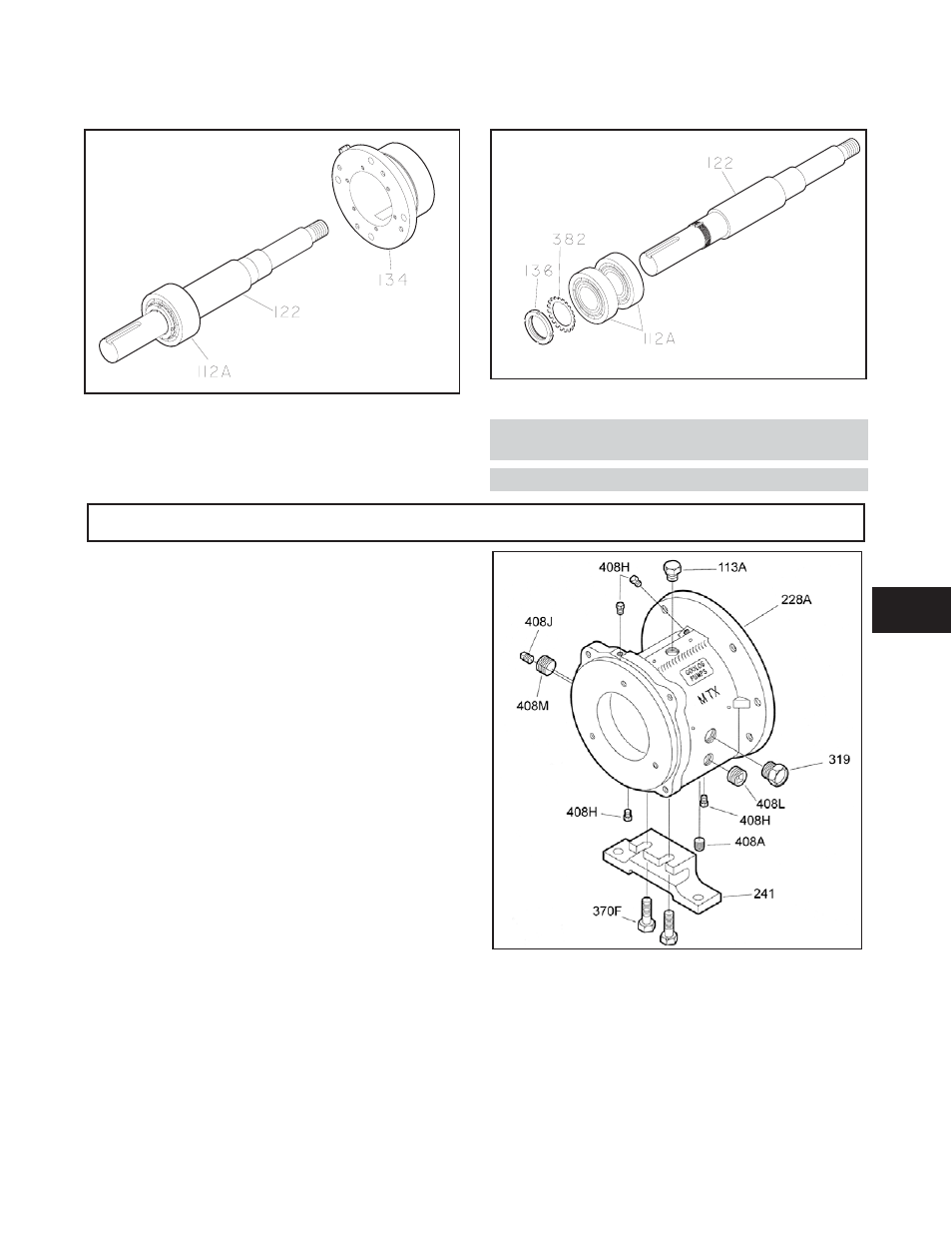

Fig. 87
