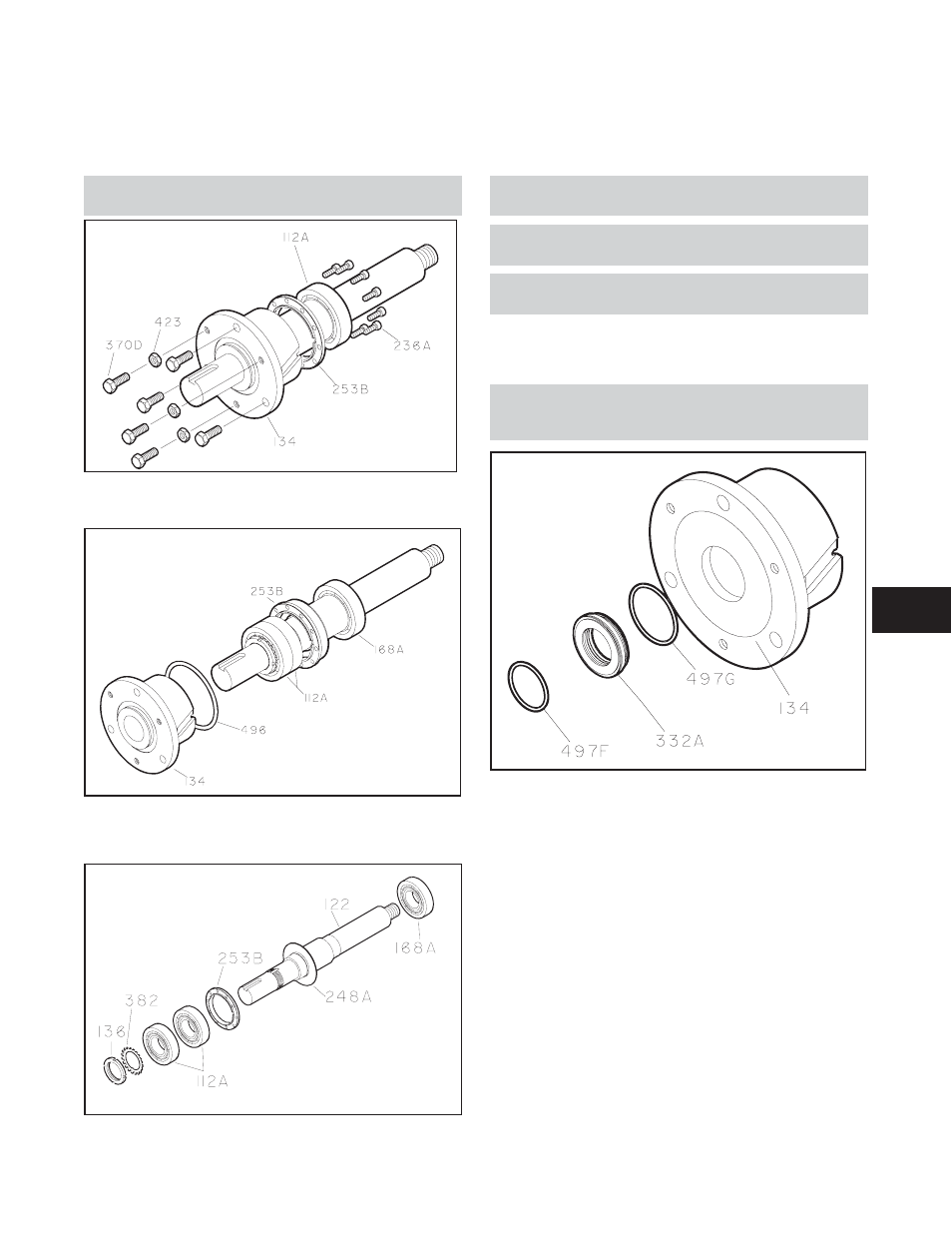

3. Remove jack screws (370D) with nuts (423)
(Fig. 68).
4. Remove clamp ring screws (236A). Separate
clamp ring (253B) from bearing housing (134).
NOTE: Clamp ring cannot be removed from the
shaft until bearings are removed.
5. Remove bearing housing (134) from shaft (122)
with bearings (112A, 168A) (Fig. 69).
6. Remove bearing housing O-ring (496).
7. Remove inboard bearing (168A) (Fig. 70).
8. Remove bearing locknut (136) and bearing
lockwasher (382).
9. Remove outboard bearings (112A). Remove
clamp ring (253B).
NOTE: When pressing bearings off shaft, use
force on inner race only.
NOTE: Save bearings for inspection. Do not
reuse bearings.
NOTE: Do not remove oil flinger (248A) unless it
is damaged.
10. Remove outboard labyrinth seal (332A) from
bearing housing (134). Remove O-rings (497F),
(497G) if necessary (Fig. 71).
NOTE: Labyrinth oil seal O-rings (497F, G) are
part of 3196 maintenance kits or can be
obtained separately.
ANSIFAM IOM - 5/08
63
6
Fig. 68
Fig. 69
Fig. 70
Fig. 71
