Parts Listings and Cross-Sectionals
S-group with bearing frame — stainless steel

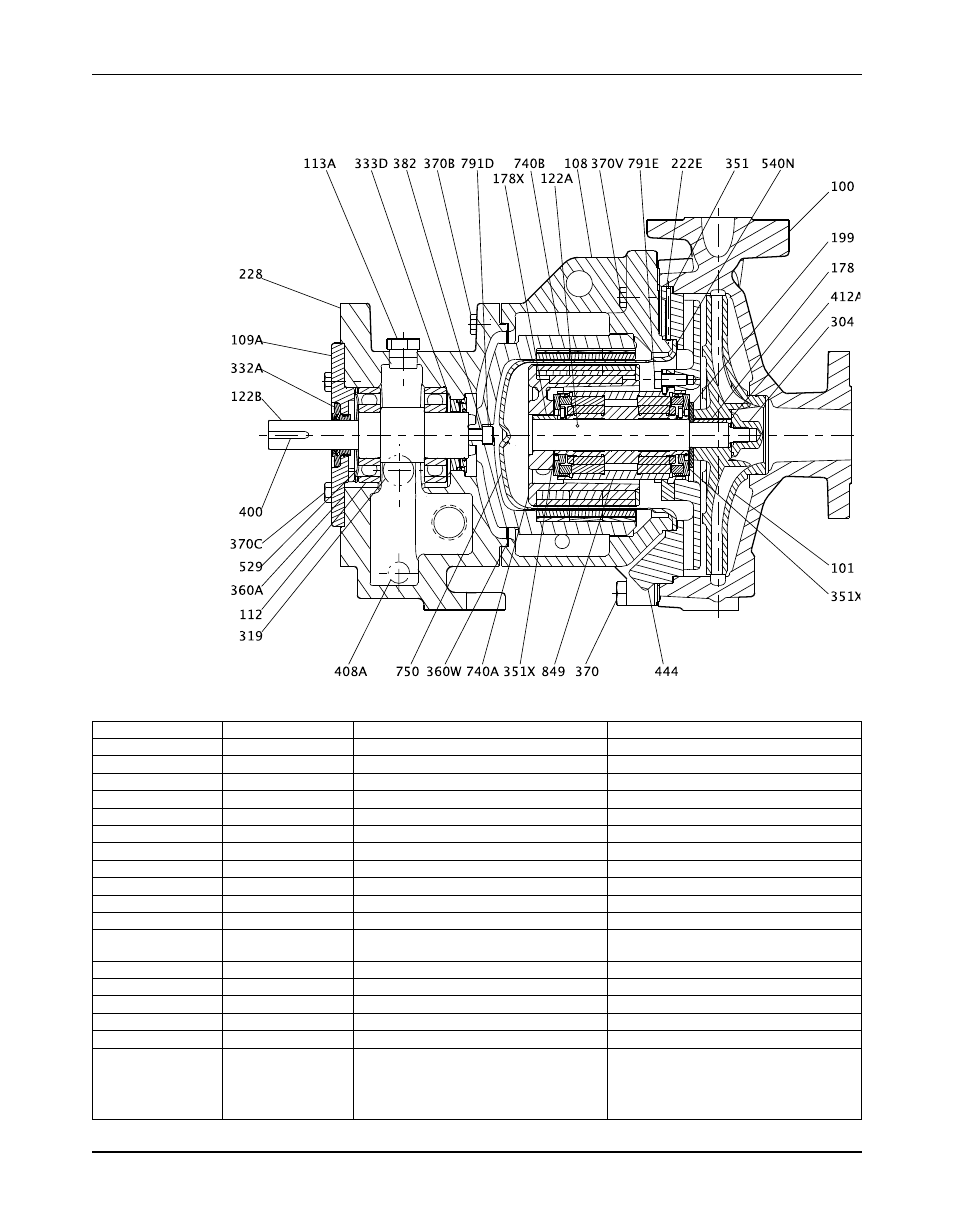

Cross-sectional drawing
Parts list
Item Quantity Part name Material
100 1 Casing Stainless steel (1.4408)
101 1 Impeller Stainless steel (1.4408)
108 1 Frame adapter Ductile iron
109A 1 Frame end cover Ductile iron
112 2 Ball bearing Steel
113A 1 Fill plug Steel
122A* 1 Driven shaft Duplex SS (1.4462)
122B 1 Drive shaft Steel 4140
178 1 Impeller key 303SS
178* 1 Driven carrier key Stainless steel (1.4571)
199 1 Distance washer Stainless steel (1.4571)
222E 3 Adapter-to-backplate setscrew (6 in. Steel
pumps)
228 1 Bearing frame Cast iron
304 1 Impeller nut Duplex SS (1.4517)
319 1 Sight window Steel/glass
332A 1 Labyrinth oil seal (coupling end) Bronze/SS
333D 1 Labyrinth oil seal (radial end) Carbon-filled Teflon
351 1 Backplate-to-case gasket Optional gasket material:
• Aramid fiber/EPDM (standard)
• White gylon (optional)
• Fawn gylon (optional)
78 Model 3296 EZMAG Installation, Operation, and Maintenance Manual
