Maintenance

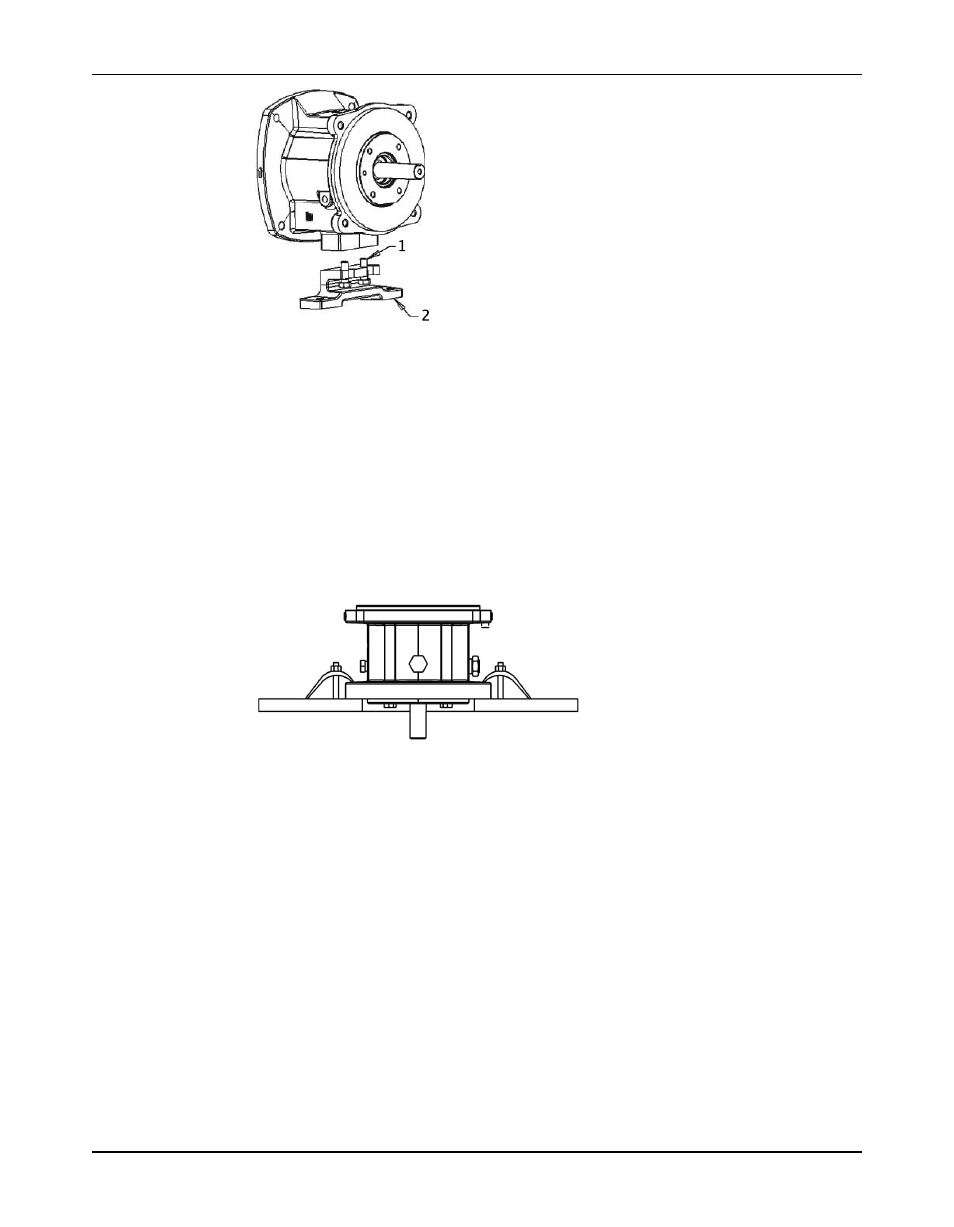

1. Foot-to-frame hex screw (370F)
2. Frame foot (241)

Figure 11: Frame foot (M-group only)

4. Insert the end-cover gasket (360A) into the bearing frame.
5. Mount the bearing-end cover (109A) using the hex screws (370C).
6. Press the inboard labyrinth seal (333D) and the outboard labyrinth seal (332A) into the

corresponding bores on the bearing frame.
Press the seals until they are fully-seated in the bore. Make sure to keep the oil return slot
on the inside of the seal at the 6 o’clock position.

7. Mount the bearing frame foot (241) with hex screws (370F) and lockwashers (M-group

only).

8. Clamp the pre-assembled bearing frame assembly in a vice with the motor end of the shaft

facing downwards.
