Assemble the TaperBore PLUS

™

seal chamber

1. Apply a liberal amount of an anti-galling compound, such as Loctite Nickel Anti-seize, to the shaft

sleeve (126) bore and shaft (122).

2. Slide the sleeve onto the shaft.
3. Install the cartridge seal on the sleeve.
4. Use an eye bolt, strap, and sling as required.

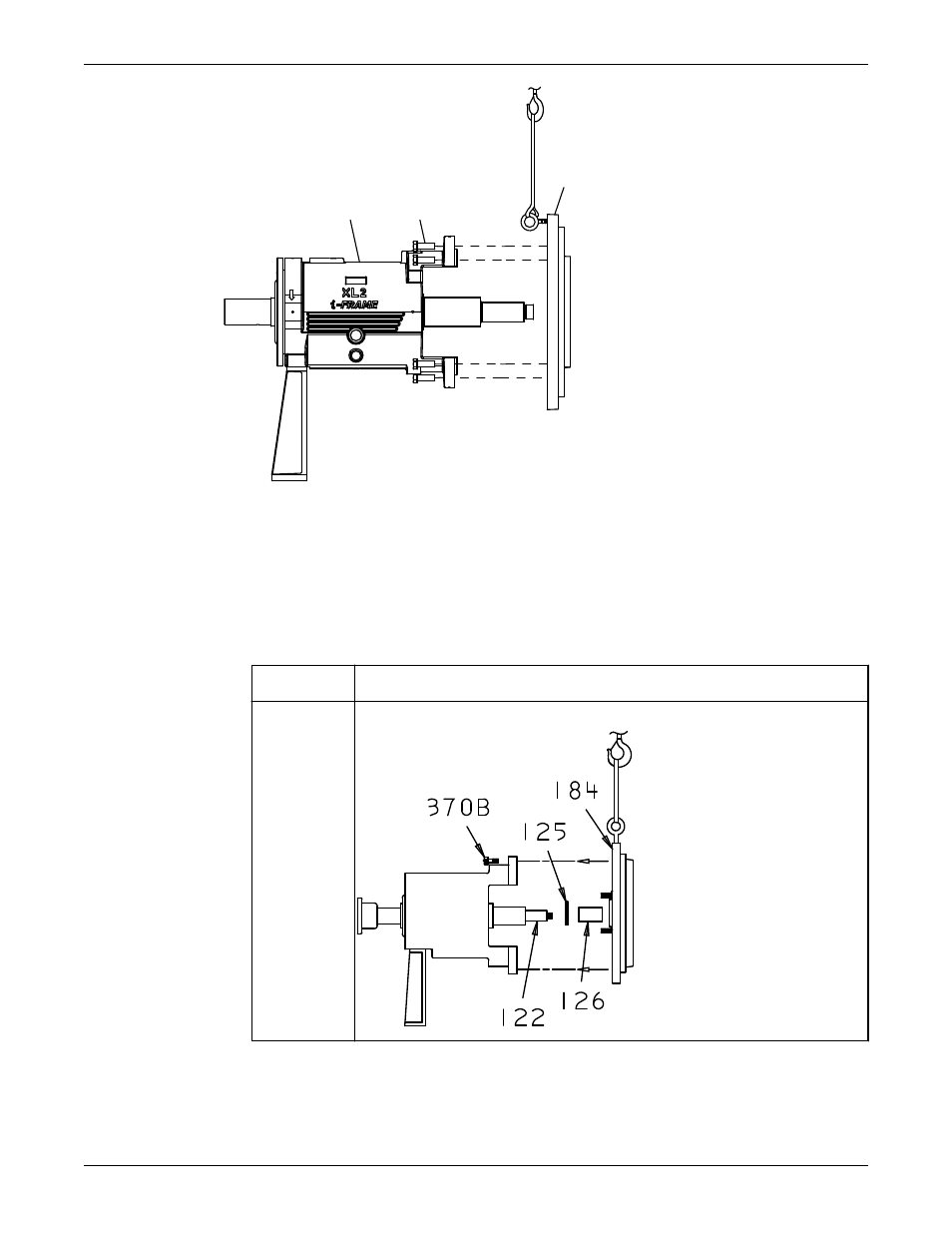

5. Install the seal chamber (184):

If your pump

group is...

Then...

S, M, L, and XL Install the seal chamber (184) and hex head bolts (370B) on the bearing frame (228).
