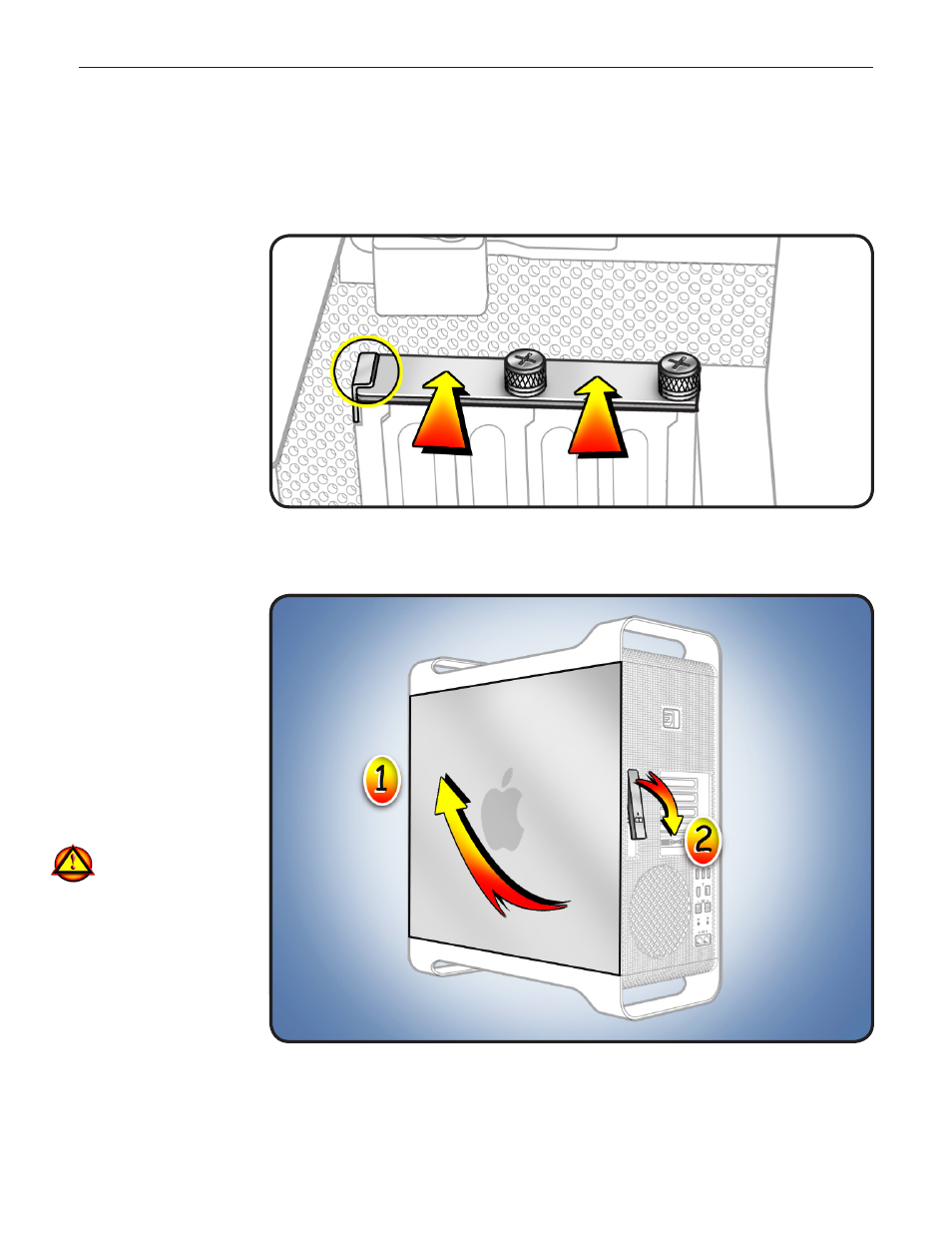

If card is held in place
4
by retention bar, slide
PCIe fan to the right
to lock card in place.
5
Replace PCI bracket
and tighten screws.
Note: Slide bracket
under circled tab
before securing
screws.
Closing the
Computer
1
Replace access panel.
Note: Make sure
latch is up before you
replace panel. If latch
is down, panel will
not seat correctly.
Push latch down
2
to close and secure
access panel.
Warning: Never turn
on computer unless
all its internal and
external parts are in
place and it is closed.
Operating computer
when open or missing
parts can cause
damage or injury.
