3-2 N9360A Multi UE Tester Quick Reference Guide
3 General Operation
Using a USB memory device
A USB memory device can be used to save and recall the test
procedures, to update the firmware of the Tester, and to save
screen images as image files.
Saving and Recalling Test Procedures:
All settings for Automatic Test, Manual Test, TX Analyzer,
Signal Generator, and Configuration can be saved into a test
procedure file.
To save a test procedure or to recall a pre-defined test
procedure, go to the [Configuration] screen, then the [File
Management] screen.
Updating the Firmware:
To update firmware of the Tester, press the FW Update softkey to
go to the [Firmware Update] screen on the [Configuration]
screen obtained from the [Top Menu] screen. Refer to the
“Firmware Update Screen” in the User's Guide for details.
Saving a Screen Image:
To enable this function, it is required to set the “Printer” input
field on the [Configuration] screen to
USB Memory
. Then, to save
a screen image into a USB memory device, press the Print Screen
softkey. The file format is PNG (Portable Network Graphics).

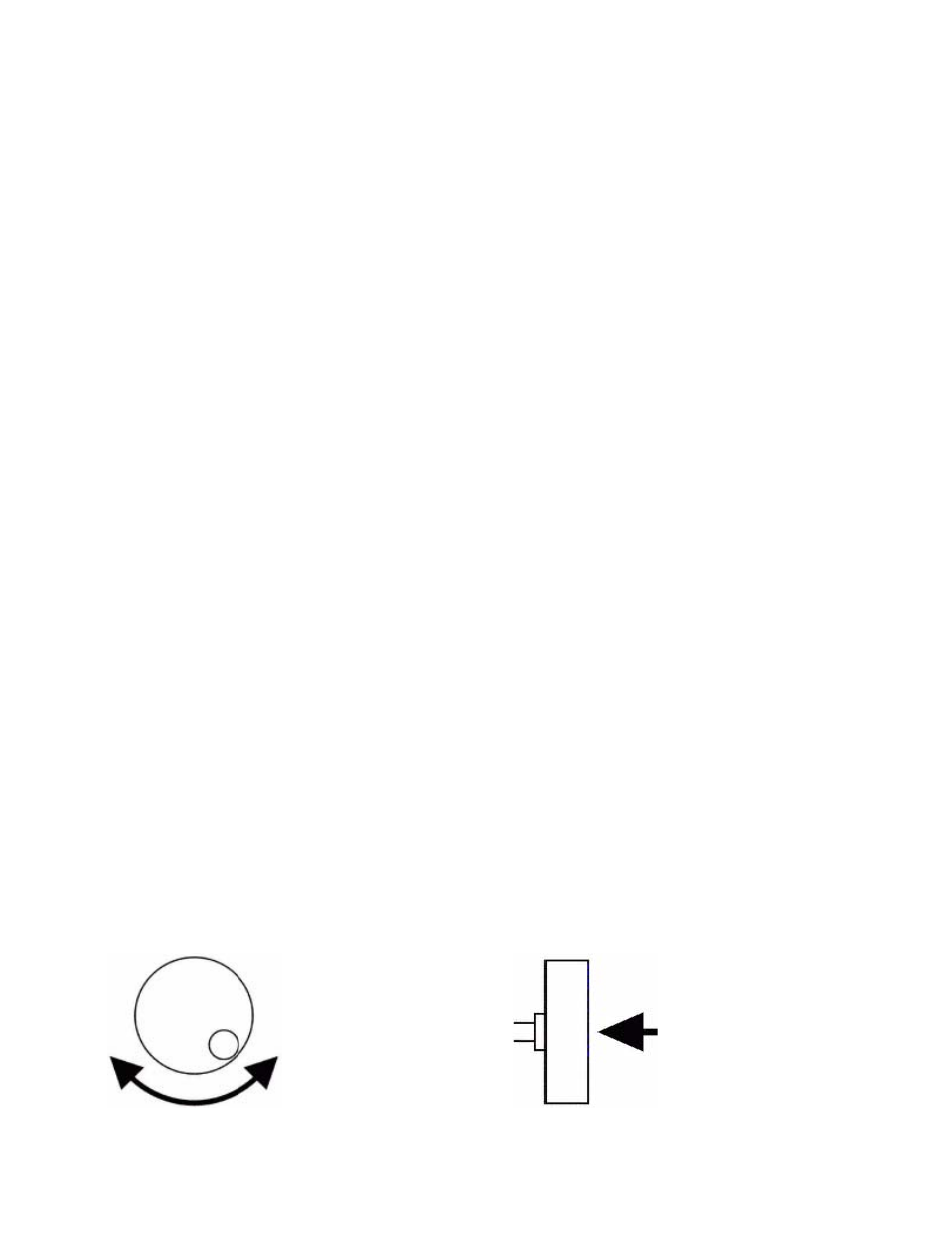

Using the Knob on the Front Panel
1. Rotate the knob to place
the cursor next to the input
field where you want to
change.
2. Push the knob to select
the field where you placed
the cursor.
3. Rotate the knob to
change the value in the
field.
4. Push the knob to set the
value.
