AIMB-221 User Manual

18

2.3

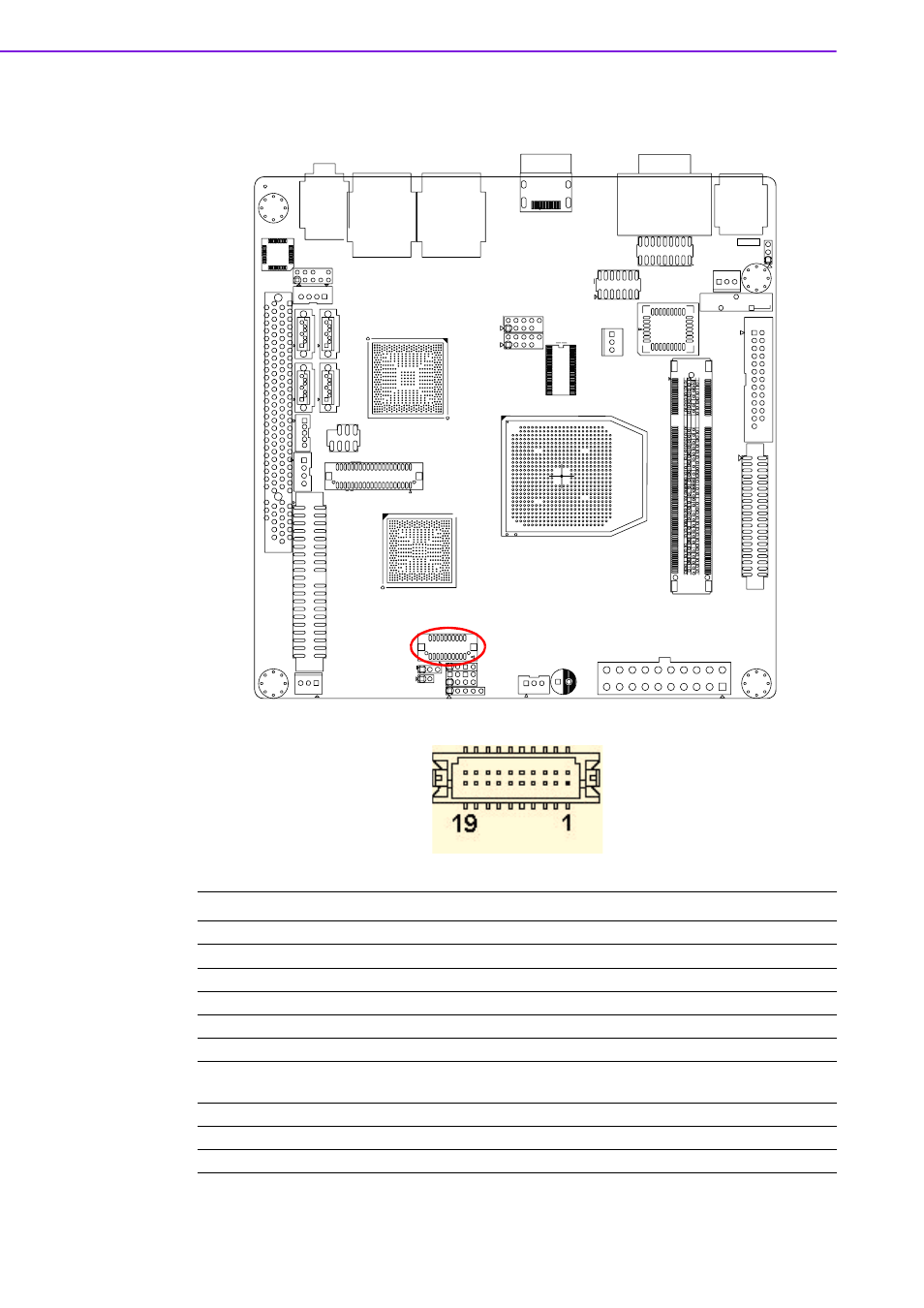

DVI2 (Optional)

Signal

PIN

PIN

Signal

VCC

2

1

DVI2_Tx0-

DVI2_TxC-

4

3

DVI2_Tx0+

DVI2_TxC+

6

5

GND

GND

8

7

DVI2_Tx1-

DVI2_DDCCLK

10

9

DVI2_Tx1+

DVI2_DDCAT

12

11

GND

PLUG_Detect

14

13

DVI2_Tx2-

NC

16

15

DVI2_Tx2+

NC

18

17

VCC

NC

20

19

NC
