40
Se
tu
p
DVD Player with
Component
Video Connectors For best results, use this connection if your DVD player has component
video (Y, P
B
, P
R
) jacks.

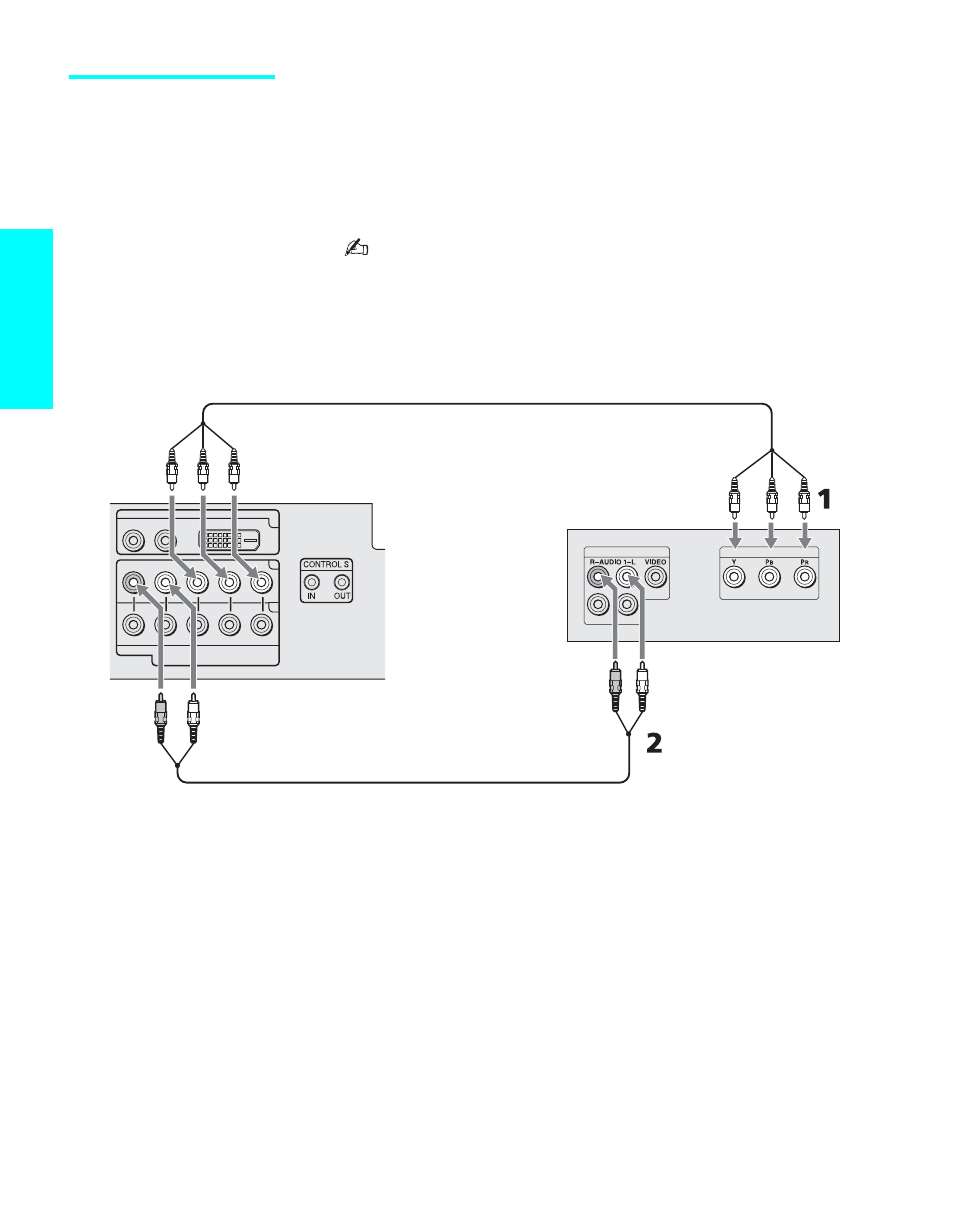

To connect a DVD player with component video connectors
1
Use three separate component video cables to connect the DVD player’s
Y, P
B
and P
R
jacks to the Y, P
B
and P
R
jacks (HD/DVD IN) on the TV.
The Y, P B and P R jacks on your DVD player are sometimes
labeled Y, C B and C R , or Y, B-Y and R-Y. If so, connect the
cables to their matching color jacks.
2 Use an audio cable to connect the DVD player’s audio output jacks to the
TV’s HD/DVD IN AUDIO input jacks.
DVI-HDTV IN
DVI-HDTV R -AUDIO- L
R -AUDIO- L Y P B P R
6
4
5
HD/DVD IN
(1080i/720p/480p/480i)
COMPONENT VIDEO OUT LINE OUT
Rear of TV
DVD player
Component video cable
Audio cable
