38
Se
tu
p
Satellite Receiver

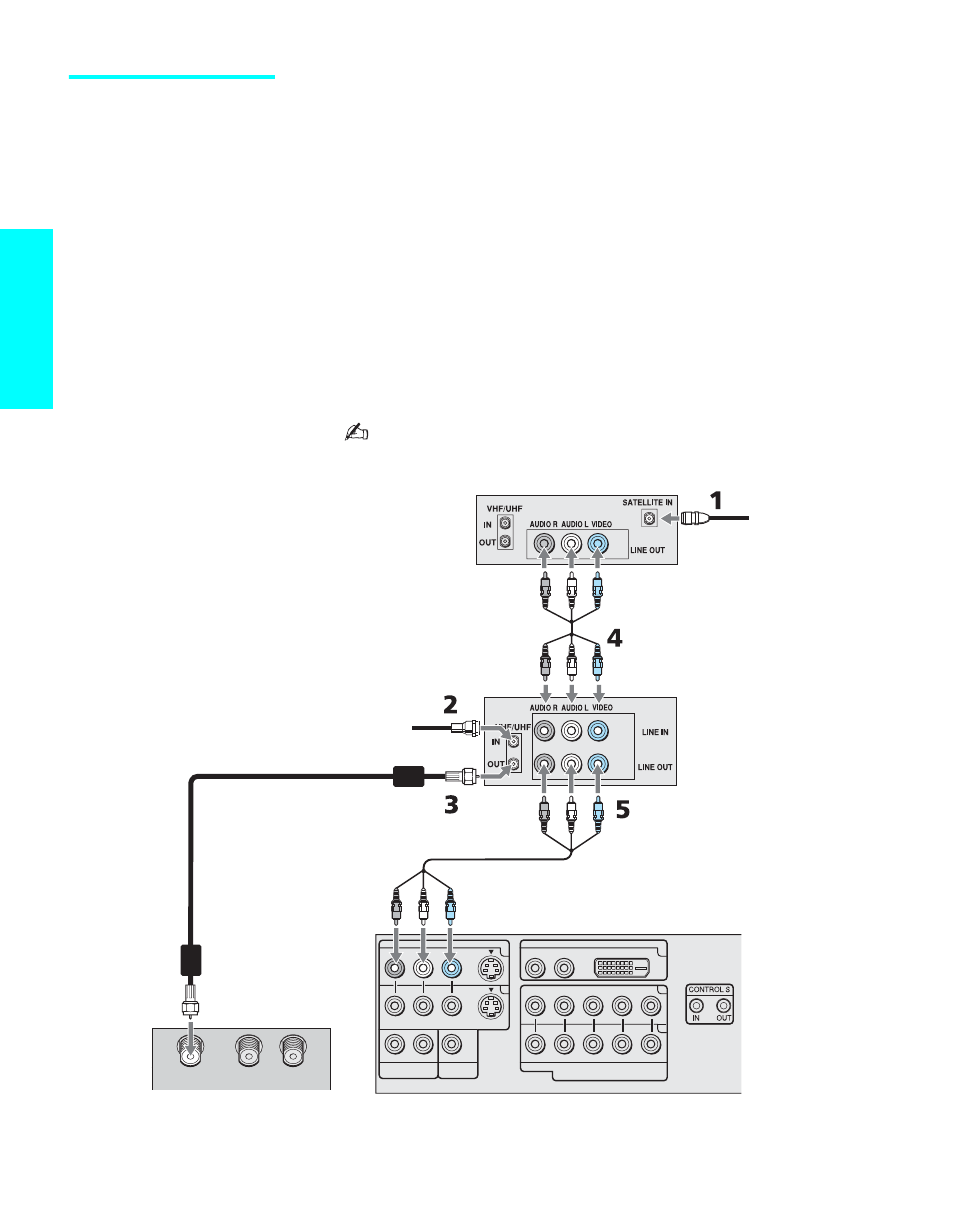

and VCR To connect a satellite receiver and VCR
1
Connect the satellite antenna cable to the satellite receiver’s satellite
input jack.
2
Connect the CATV cable to the VCR’s VHF/UHF input jack.
3
Use the supplied antenna cable to connect the VCR’s VHF/UHF output
jack to the TV’s VHF/UHF jack.
4
Use an A/V cable to connect the satellite receiver’s A/V output jacks to
the VCR’s A/V input jacks.
5 Use an A/V cable to connect the VCR’s A/V output jacks to the TV’s
A/V input jacks.
6 Run the Auto Setup program, as described in “Setting Up the Channel
List” on page 48.
Using S VIDEO jacks? See page 29.
VIDEO IN
AUDIO OUT
1
DVI-HDTV IN
DVI-HDTV R -AUDIO- L
R -AUDIO- L
R -AUDIO- L
(MONO)
R -AUDIO- L
WOOFER OUT
(VAR/FIX) (VAR)
Y P B P R
6
3
VIDEO S VIDEO
4
5
VHF/UHF
TO
CONVERTER
AUX
HD/DVD IN
(1080i/720p/480p/480i)
A/V cable
Satellite receiver
Antenna cable
(supplied)
Satellite
antenna
cable
CATV cable
A/V cable
VCR
Rear of TV
