Connecting a DVD Player with A/V Connectors

Use this hookup if your DVD player does not have component (Y, P

B

,

P

R

) jacks.

1

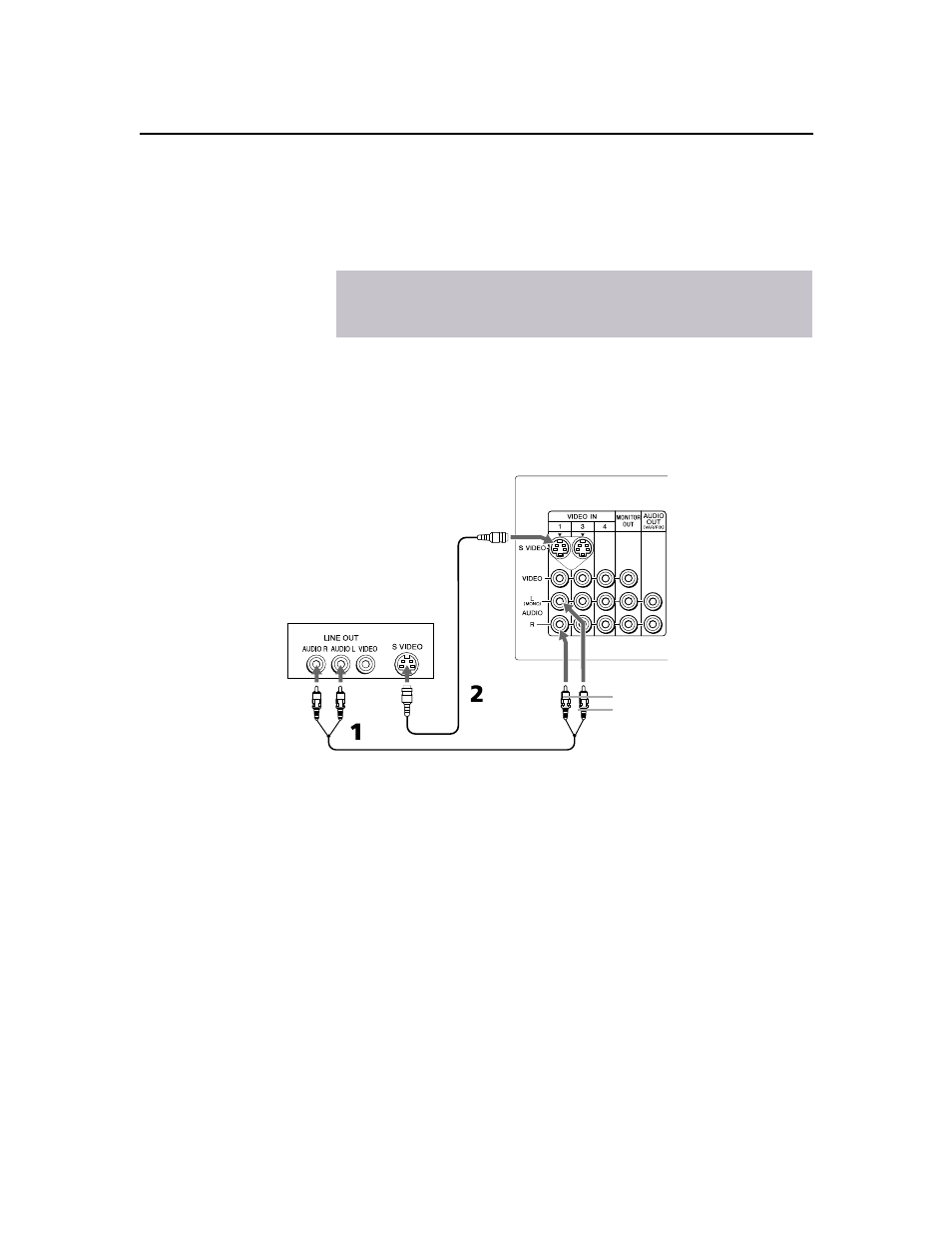

Using audio cables, connect the DVD player’s Audio OUT jacks
to the TV’s Audio IN jacks.

2

Using an S VIDEO cable, connect the DVD player’s S VIDEO jack
to the TV’s S VIDEO jack.

To switch between your TV and DVD
❑

Use the TV/VIDEO button on the TV’s remote control to switch from
one input device to another.

✍

An S VIDEO connection will give a good-quality video signal, but if your DVD
player has component video, that connection (described on the previous page)
will give an even better signal.

Audio cable

DVD player

S VIDEO

cable

AUDIO-R (red)
AUDIO-L (white)

TV
