Installing the TV
20

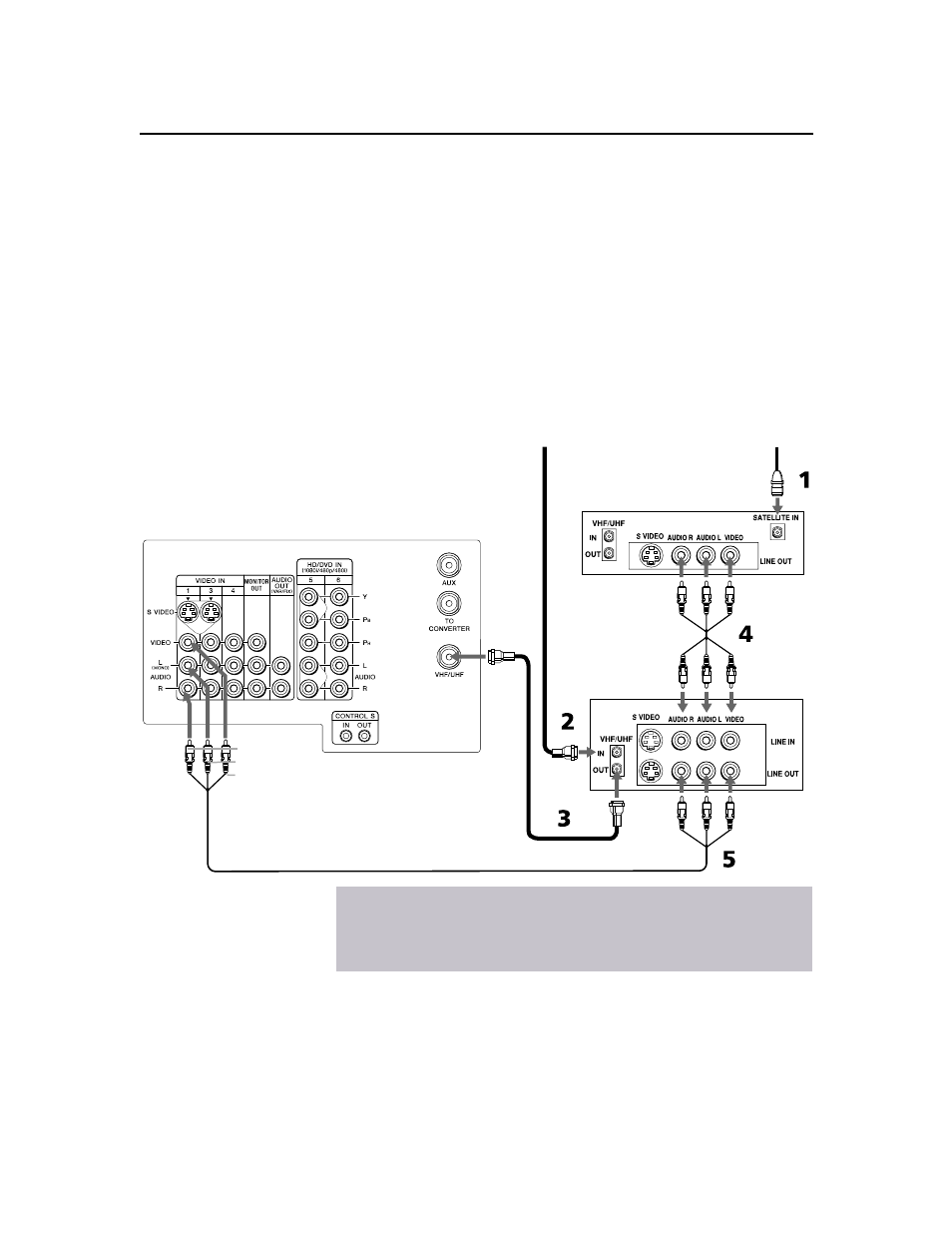

Connecting a Satellite Receiver with a VCR
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3 Using a coaxial cable, connect the VCR’s OUT jack to the TV’s
VHF/UHF jack.
4 Using an A/V cable, connect the satellite receiver’s Audio and
Video OUT jacks to the VCR’s Audio and Video IN jacks.
5 Using an A/V cable, connect the VCR’s Audio and Video OUT
jacks to the TV’s Audio and Video IN jacks.
TV
Satellite receiver
VCR
A/V cable
Coaxial
cable
CATV
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Satellite
antenna
cable
cable
✍
If the peripherals you are connecting have S VIDEO jacks, you can use S VIDEO
cables for improved picture quality (compared to combination audio/video
cables). Because S VIDEO cables carry only the video signal, you will need
audio cables for sound.
