Removing, Installing, and Replacing Components
43
10

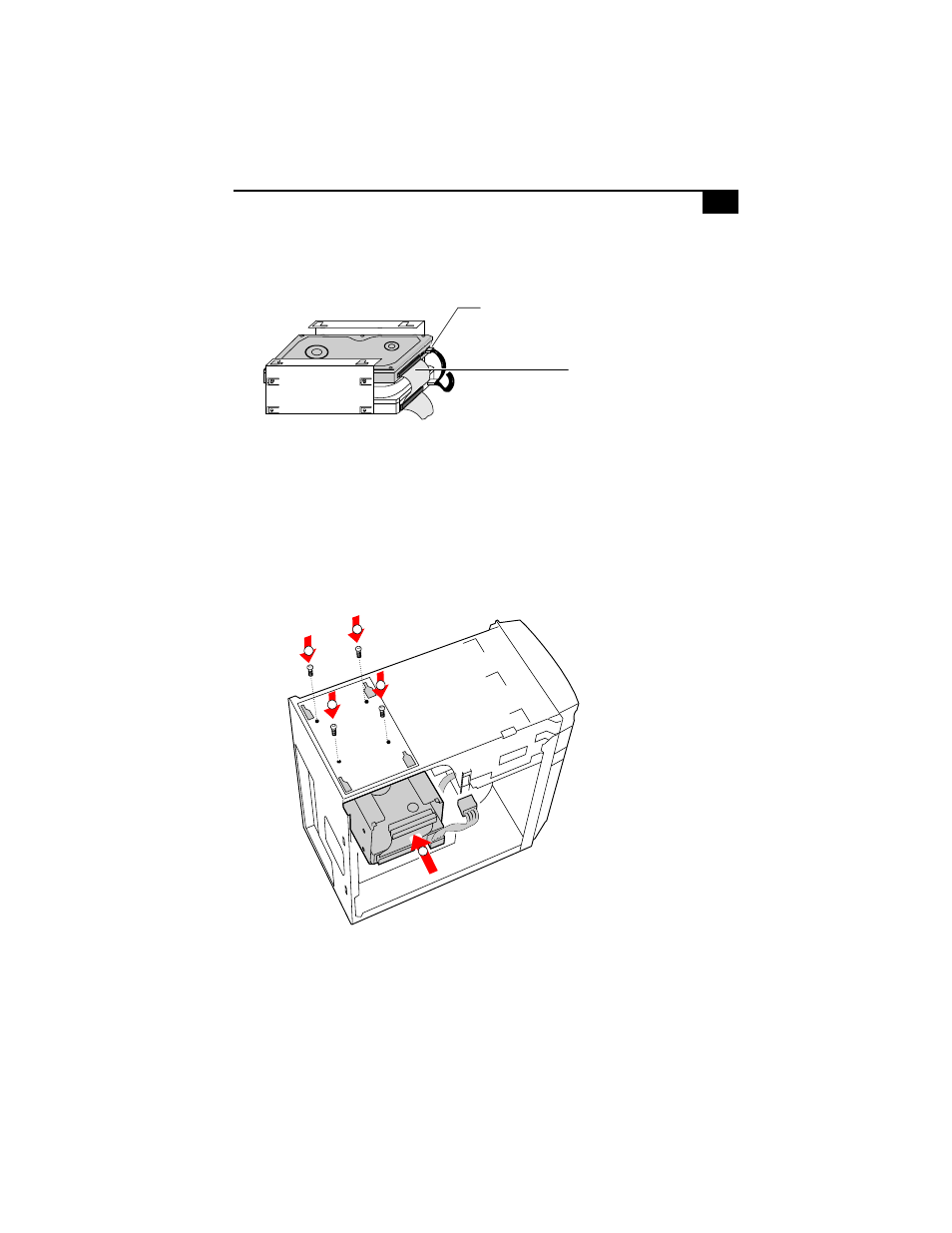

Connect the second power connector to the new drive.
11
Make sure the drive connector is connected securely to the
motherboard.
12
Lower the drive holder down and slide it back into the chassis (A in
next diagram). Be sure to align all four slots on the drive holder with
the tabs on top of the chassis.
13
Slide the drive holder back so that the tabs slip into the notches.
14
Replace the four screws (B) that secure the drive holder to the chassis.
15
Replace the cover (see
KY0085.VSD
Second power connector
Second drive connector
KY0086.VSD
B
B
B
B
A
