Installing an Add-In Card
1
Remove the cover (see
2
Locate an available expansion slot connector.
3
Remove the slot cover adjacent to the selected slot connector (see
4
Insert the add-in card into the PCI slot connector. Use a gentle rocking
motion, pressing down until the card is fully seated.
5
Replace the screw that secures the card.
6
Attach any necessary cables to the card (see the instructions that came
with the add-in card).
7
Replace the cover (see
8
Turn on the computer and follow any instructions that came with the
add-in card.
!
Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.
✍

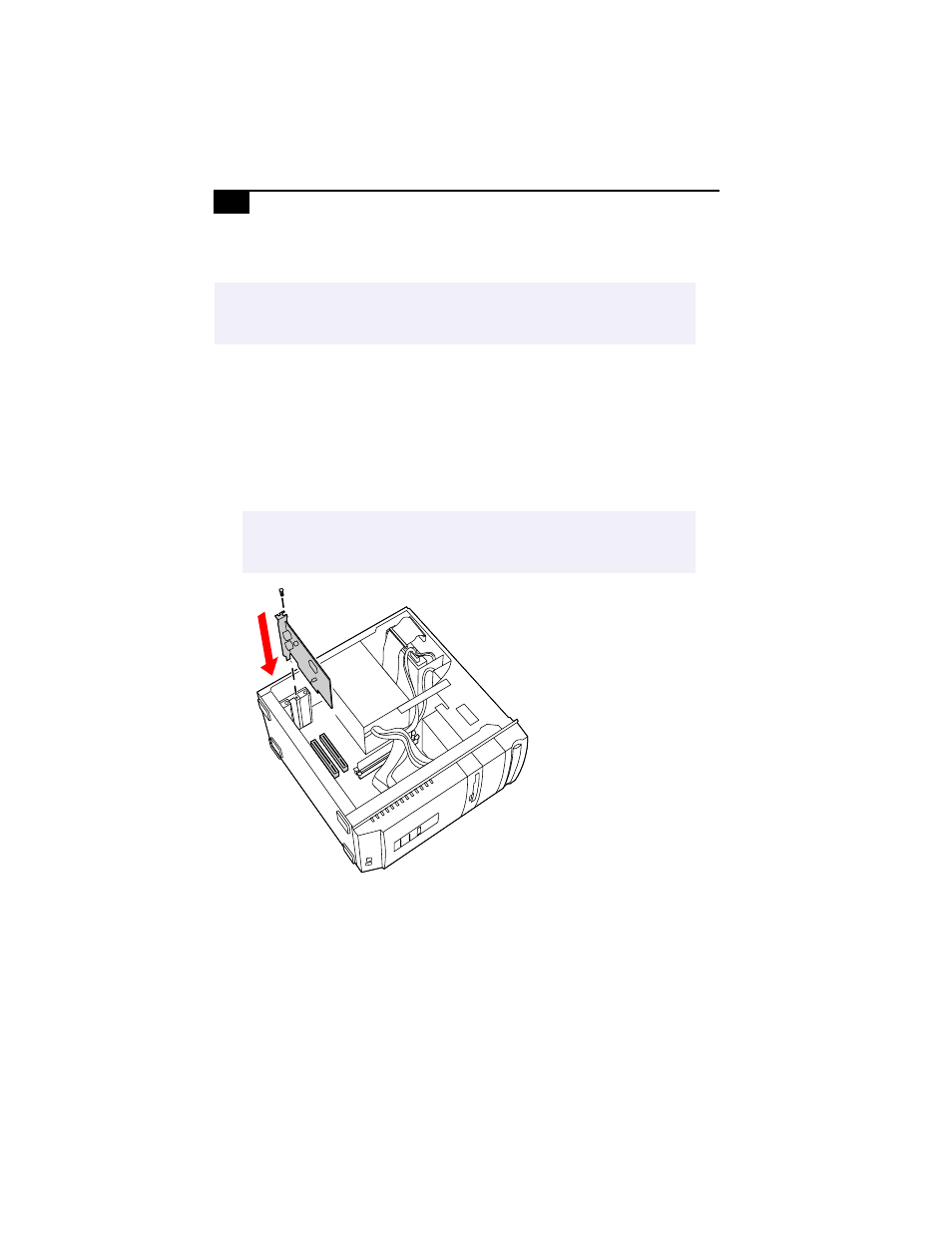

Align the card's bracket so that the bottom of the bracket fits into the slot at the
bottom of the chassis. Assure that the top of the bracket fits snugly against the
chassis lip after the card is fully inserted.
