VGN-NW Series Hard Disk Drive
Replacement Instructions
P/N 989200137 Rev. B 3/3

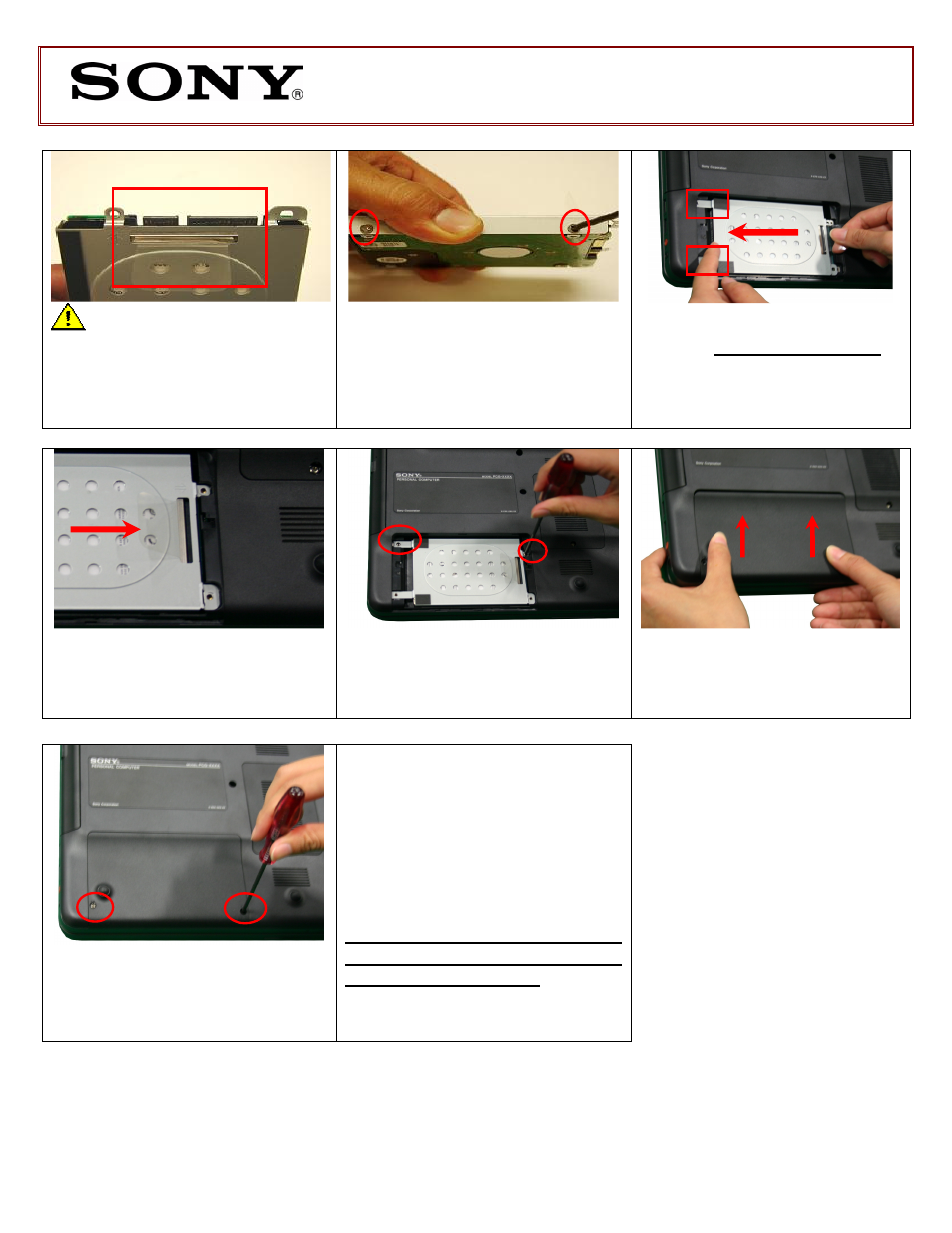

NOTE! Proper mounting of
HDD bracket can be verified with
the HDD connectors appearing
below plastic pull tab.
Step 13. Re-install the (4) previously
removed screws to properly mount the
HDD bracket to the HDD.
(HDD Reinstallation) Steps 14-18
Step 14. Insert the (2) left tabs of
the new HDD assembly into the (2)
slots in the HDD bay. Hold the HDD
on the sides to avoid damaging the
part.
Step 15. Attach the HDD assembly to
the HDD connector by sliding the
assembly to the right. Make sure the
screw holes are aligned correctly.
Step 16. Re-install the three (2) screws
holding the HDD assembly in place.
Step 17.
Re-attach the HDD access
cover by sliding it in the direction shown in
the picture.
Step 18. Re-install the HDD cover and
secure it with the two (2) screws previously
removed.
Step 19. Reinstall the battery pack and
reconnect the AC Adaptor.
Power on your computer and continue
with the recovery process by following
the instructions described on the back
of the recovery disk’s case.
Return the old HDD to Sony
following
the included
shipping instructions.
