C
o
n
nec
tio
n
s an
d Pr
epa
ra
tio
n
s
19 GB

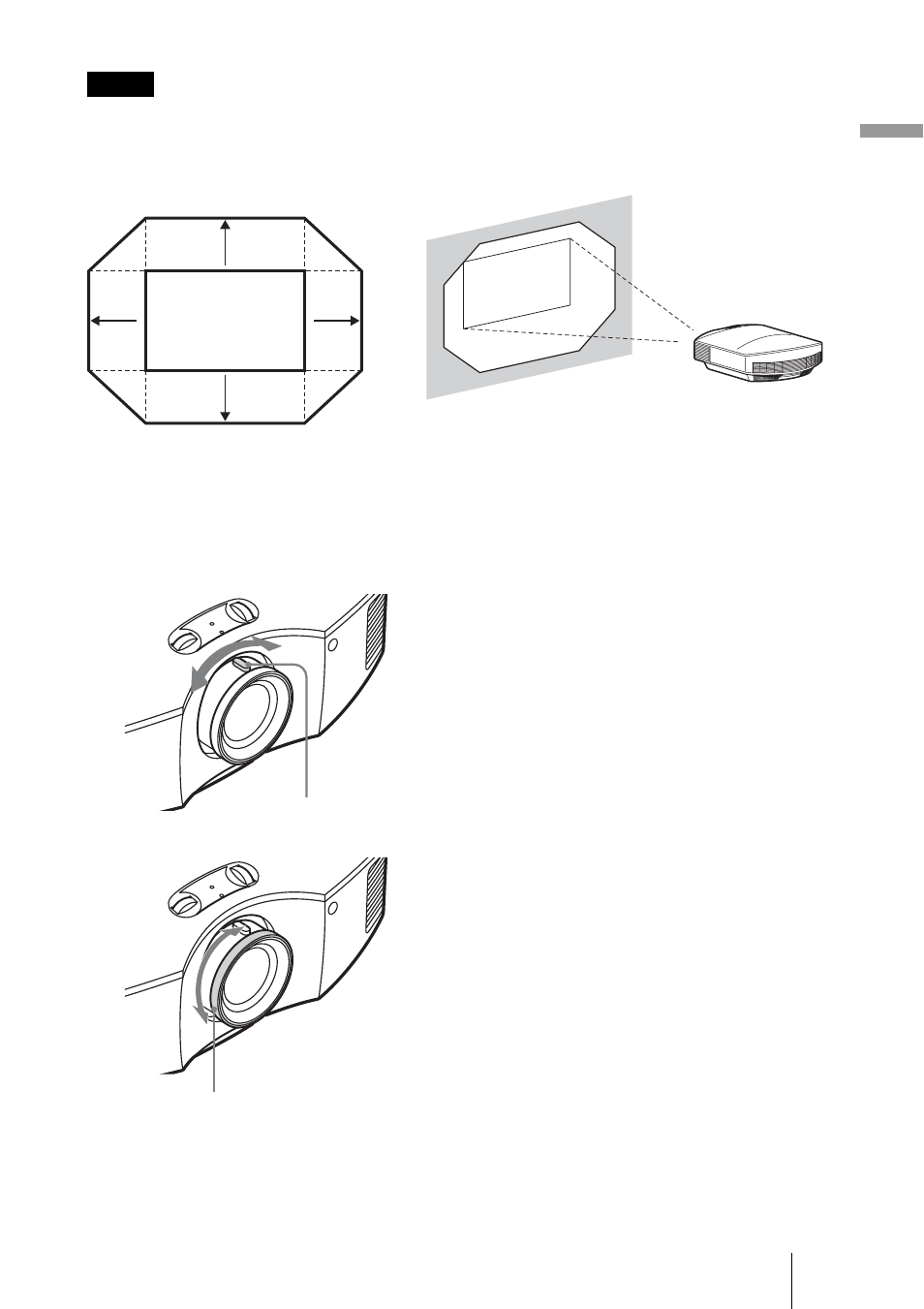

• The range to move the picture projected on the screen can be adjusted only within the octagon area
illustrated below. For details, see “Projection Distance and Lens Shift Range” ( 1 page 86).
• When you use both the horizontal and vertical lens shift features at the same time, the distance the
picture projected on the screen moves differ depending on how much the lens shift is adjusted.
Notes
5
Adjust the picture size using the
zoom lever.
6
Adjust the focus using the focus
ring.
Range of movement of
the projected picture
Projected Picture
H: Width of the projected picture
V: Height of the projected picture
0.71V
0.71V
0.25H 0.25H
Zoom lever
Focus ring
