6.7 JVC Dome
6.7.1 Materials and reference documents
JVC TK-C675 e TK-C676 Dome.
TK-C675 Programmer’s manual, version 1.00/Feb.1998.
TK-C675/C675B Programmer’s manual (supplement), version 0.01/Dec.1998.
TK-C676 Command Guide, Vers. 1.00, April 2002.
JVC CCTV Serial Communication Protocol, Basic Protocol Reference, version 2, Jan.1998.
6.7.2 Connecting the hardware to the dome

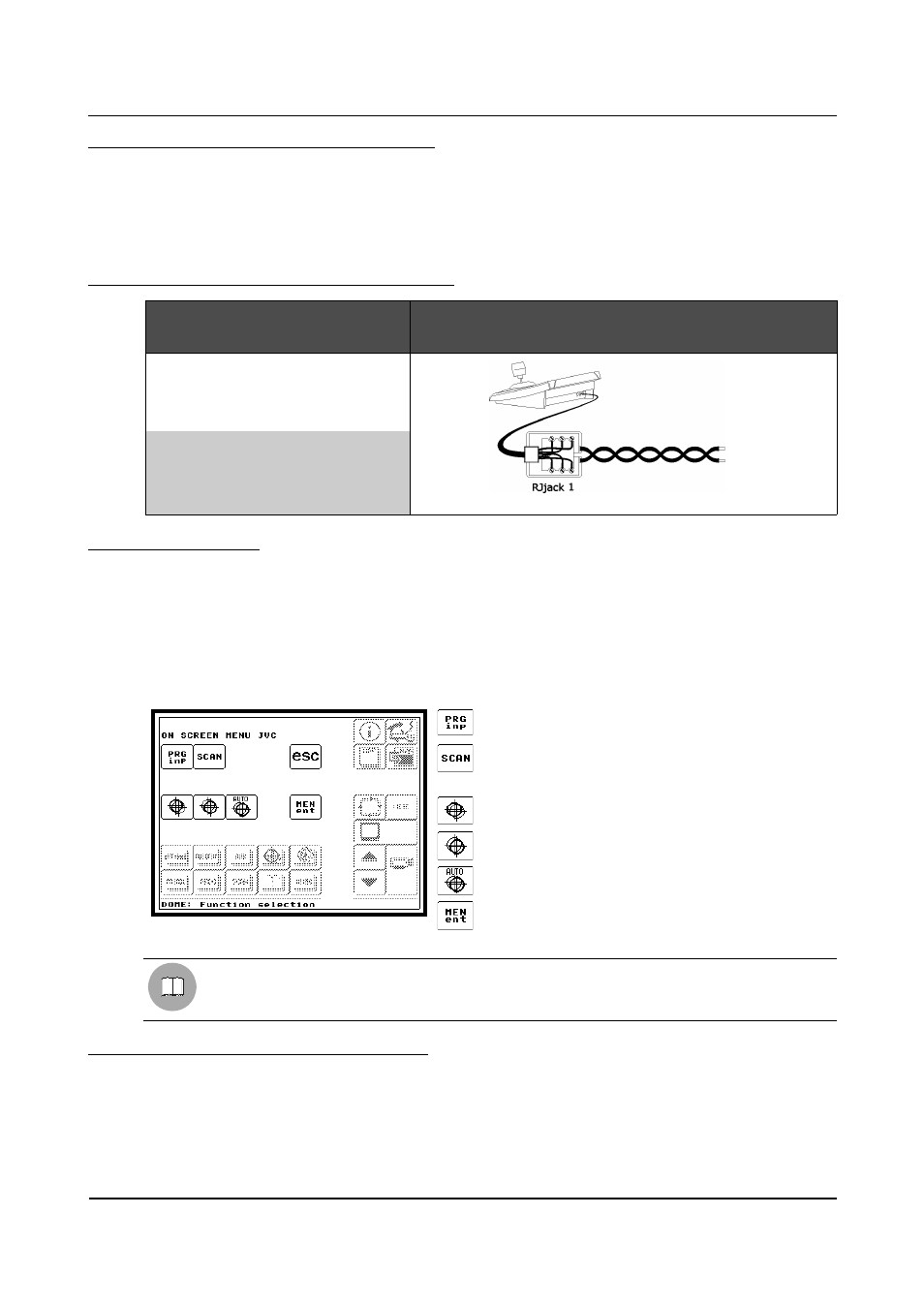

DCT RJjack1 DOME Connection diagram
RS485A white Rx+
RS485B yellow Rx-
6.7.3 Configuration
The dome is mainly configured by On Screen Menu.
Some parameters can be configured by inserting a special code.
For all dome configuration operations it is necessary to enable the "Setup telemetry" FUNCTION (see §
4.2.4.5 - Functions, page 35). Follow the general procedure to connect the dome directly to the keyboard and
a monitor to the dome video OUT (see § 6.19 - Operating procedure for setting a dome/receiver, page 137).
Go to the page for OSM dome configuration(see § 6.1.5 - Layout of the configuration menus, page 76) where
it is possible to make the settings for the various parameters.
ENTER/EXIT PROGRAMMING
To enter/exit the dome OSM.
SCAN KEY
For use in the dome AUTOPATROL menu to indicate
the chosen Preset position.
FOCUS FAR
To be used as indicated in the dome handbook.
FOCUS NEAR
To be used as indicated in the dome handbook.
AUTOFOCUS
To be used as indicated in the dome handbook.
ENTER MENU
To enter the submenus and confirm the changed
settings.
To move within the menus use the joystick. The ZOOM is used as indicated in the dome handbook.
WARNING: if Special codes 9 or 10 have been sent it is impossible to enter OSM mode. Special
code 11 must be sent..
6.7.4 Autoflip, Autopan, Aux, Focus, Iris
All these functions can be loaded by pressing the specific keys in the control menu area of the Main menu (see
§ 4.4 – Control menu area, page 45).
Refer to § 9.1 – Functions assigned to the most common graphics keys, page 164 e § 9.2.1 – Dome, page 165
to check which functions are available for the dome.
