4.2.4.1.3
Cameras connected to a DVR or MUX
The screen will have the appearance below only if the COMUNICATIONS/VIDEO/Type
parameter has been set to DVR/MUX.
The keyboard is able to manage up to 100 DVR's or MUX's, each of which can be set up with 100 cameras.

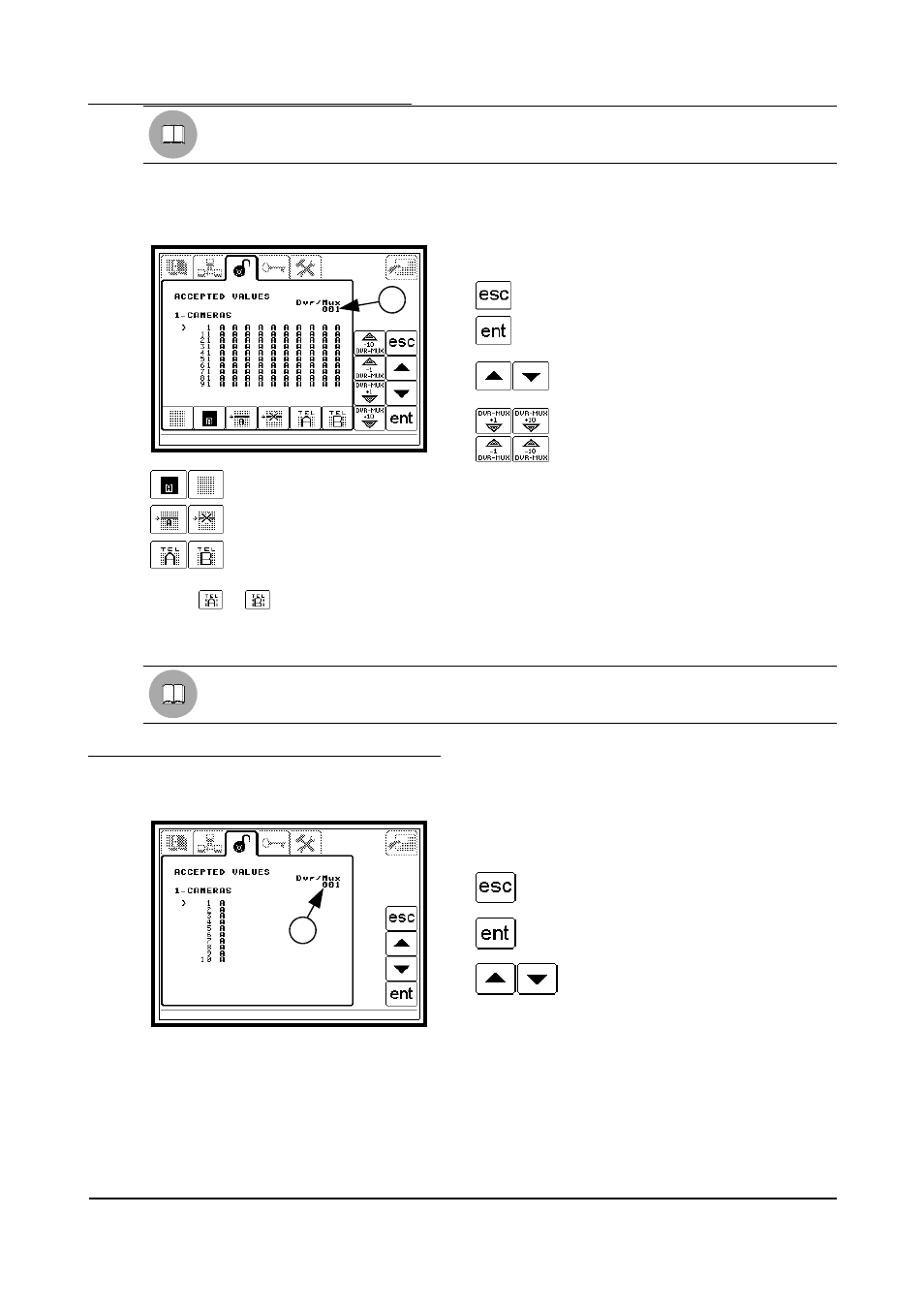

In this case the page graphics appear as in the illustration below and the string “DVR/MUX” followed by an
address is used to set up the cameras for the selected DVR or MUX.
1. Address of selected DVR/MUX
Exit menu key
Key for entering the menu to edit individual
cameras
Cursor shift keys
Keys for shifting up/down the DVR/MUX
Keys for activating/deactivating all the cameras on the page
Keys for activating/deactivating all the cameras on the line indicated by the cursor
Keys for selecting telemetry A/B
Use the
or
key to select the desired telemetry and proceed to activate the cameras using the row or
page keys. For activation/deactivation of individual cameras position the cursor on the desired line and press
the “
ent
” key to enter the menu for setting individual cameras.
Setting a camera number greater than the physical limits of the connected devices will be accepted
but will have no effect on the devices themselves.
4.2.4.1.4
Single cameras connected to
DVR or MUX
Position the cursor on the camera to be modified and press the “
ent
” key. The letter corresponding to the
number will change, showing either the letter “A” (telemetry A), “B” (telemetry B) or “
|
” (camera disabled).
1. Address of selected DVR/MUX
Exit menu key
Edit camera key
Cursor shift keys
