Phottix Odin for Sony - Manual (Page 2)

2

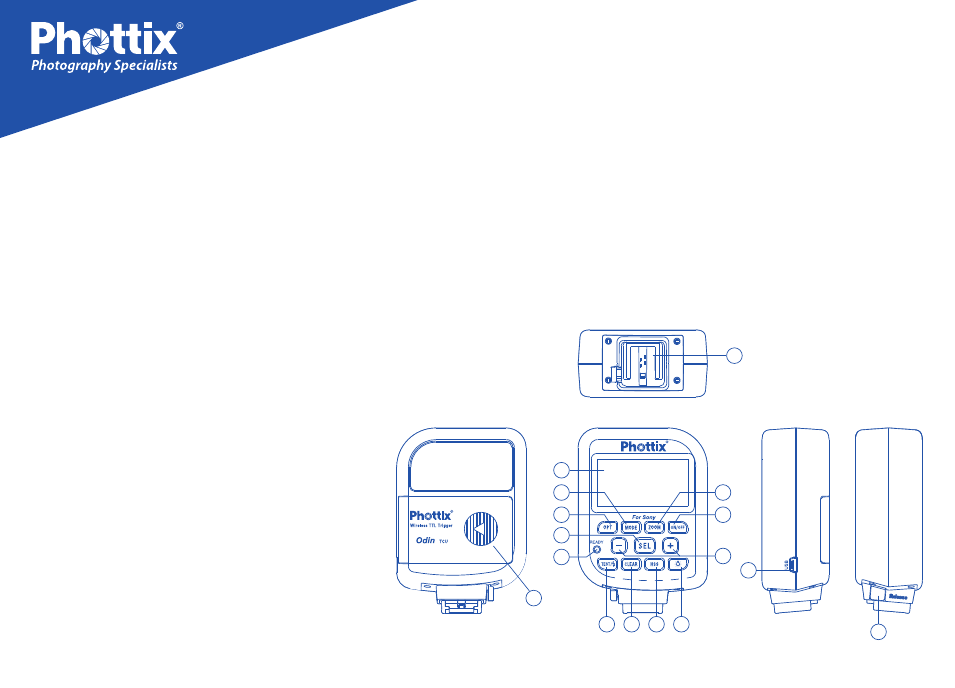

Parts
Transmitter Control Unit(TCU)
1. LCD Screen
2. Options Button
3. Mode Button
4. Zoom Button
5. Power Button
6. LED
7. + / - Buttons
8. Selection Buttons
9. Clear Button
10. High Speed Sync Button
11. Modeling Light Button
12. Test Button
13. Battery Compartment
14. Hot Shoe Lock Release
Button
15. Hot Shoe
16. USB port
16
14
15
13
1
3 4
5
7
12 9 10 11
2
8
6
