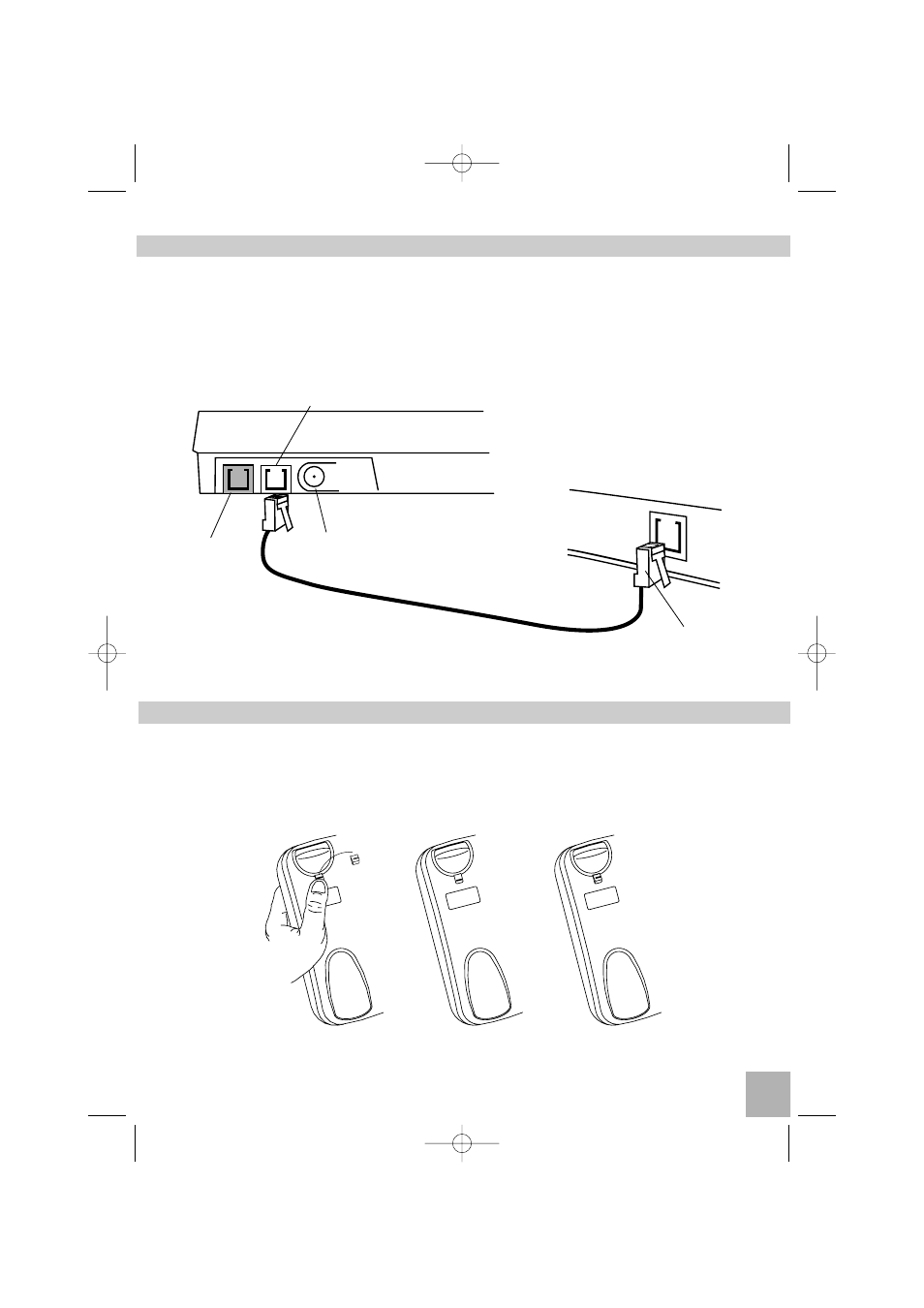

TELEPHONE CONNECTIONS
• This telephone is intented to be connected to an European analog PSTN line or
to an analog PBX line.
• Connect the telephone cord (C) located on the back left-hand side, and the other
end (D) to the telephone wall plug.
• If you use an adapter instead of batteries, plug it to the jack E. (This adapter is
not supplied with the telephone set.)
C
D
F
NOTE: The plug (F) enables a modem to be connected.
WALL MOUNTING
To wall mount the set, remove the peg and reinsert it upside down as shown in the
figure below.
Bore two 6mm-large horizontal holes spaced 70mm apart. Put two pegs in and
place in two screws (3.5mm diameter and 25mm long) without tightening them.
Place the cord in the slot situated under the set, then fix it onto the screws.
E
Wall mounted position
Horizontal position
