Mc Leod RST/RXT Modular Clutch - Manual

Installation Instructions for Kit #’s 6915, 6925 & 6975
The McLeod RST/RXT Modular Clutch Assembly is designed for extreme performance
applications. This clutch assembly is engineered to bolt directly onto the factory flywheel. Unlike most
clutch assemblies a typical clutch must be installed one component at a time. This system must not be
disassembled! Simply remove the factory clutch and install this entire assembly. If you ordered a
McLeod Flywheel with your clutch kit, it has been assembled to the flywheel for shipping purposes. Do
not disassemble the clutch kit to install the flywheel onto the crank. You only need to remove the base

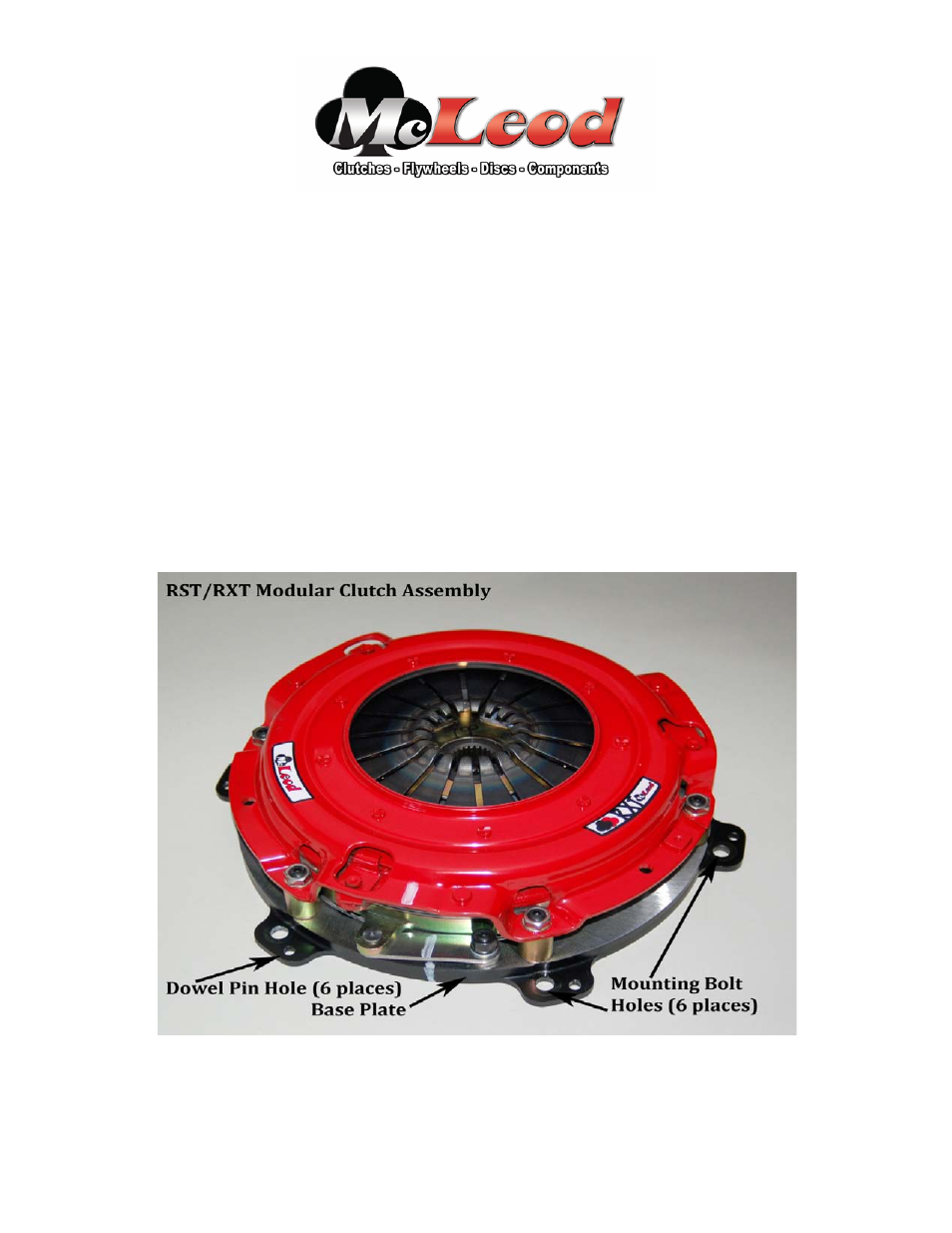

plate to flywheel bolts! The factory flywheel contains small dowel pins used to align this clutch along
with the pilot tool. Do not remove the dowel pins from the flywheel. Install the alignment tool into the
splines on the clutch discs. Align the dowel pin holes on the base plate with the dowel pins and slide the
assembly into position on the flywheel. The alignment tool must be pushed forward all the way into the
pilot bearing. See Figure 1. Use the factory bolts to secure the RST/RXT Modular Clutch assembly to the
flywheel. Torque bolts to factory spec.
DO NOT DISASSEMBLE THIS UNIT!!
I0003
