CHAPTER 4 OPTIONS
4–15
☛ ☛ ☛ ☛ 6.

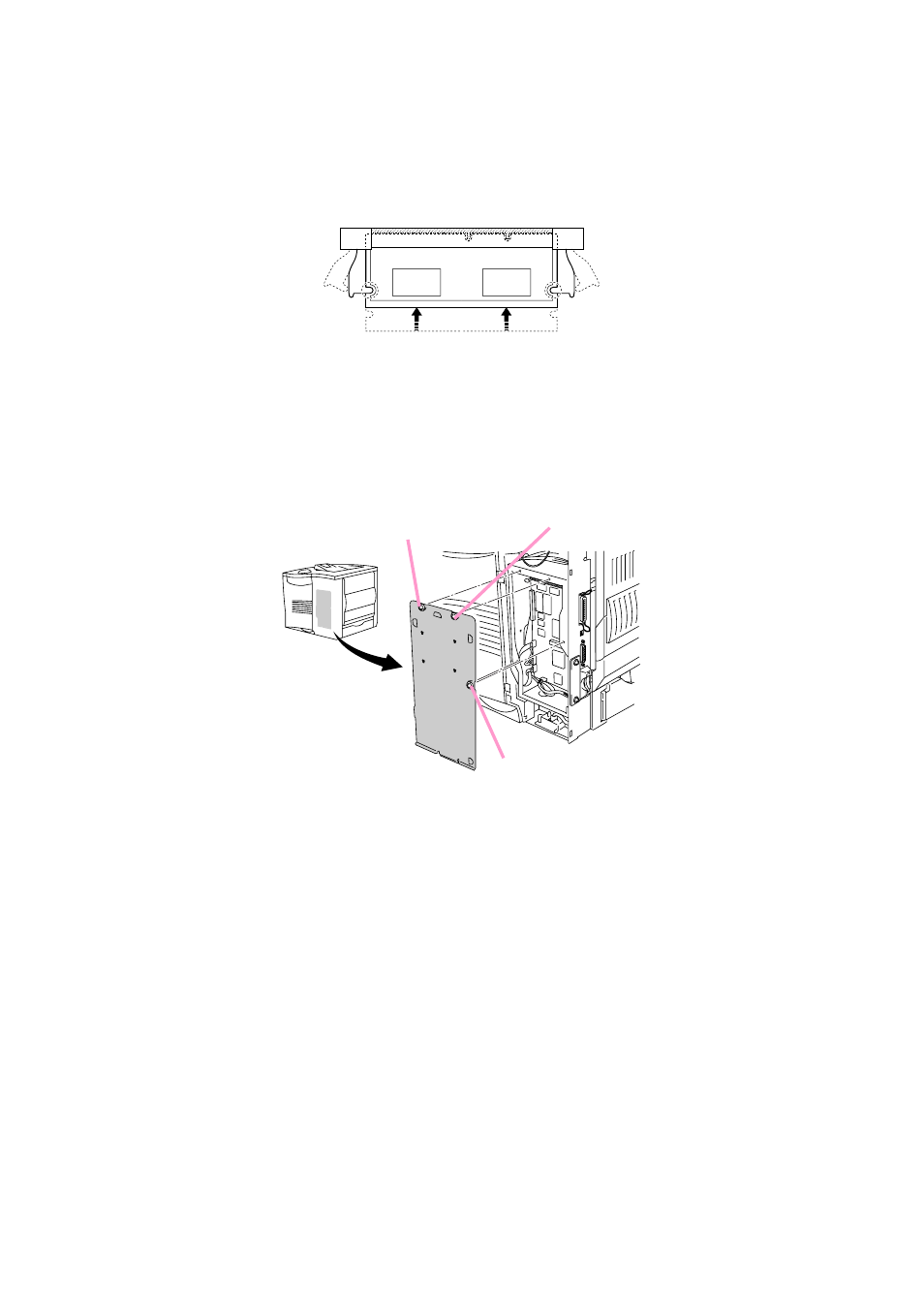

Press the DIMM straight into the slot (press firmly). Make sure the locks on
each side of the DIMM snap inward into place. (To remove a DIMM, the
locks must be released.)
Fig. 4-13
☛ ☛ ☛ ☛ 7. Secure the metal plate with the three screws in the order shown.
Fig. 4-14
☛ ☛ ☛ ☛ 8. Install the side cover.
☛ ☛ ☛ ☛ 9. Reconnect the interface cable from your computer.
Plug the power cord into the AC outlet, and then turn on the printer.
☛ ☛ ☛ ☛ 10. To check whether the DIMM has been installed correctly, you can print a
Test page “Print Configuration” that will print the current memory size.
To
print a “Configuration page,” see Chapter 3.
① ① ① ①
③ ③ ③ ③
② ② ② ②
