7-48

SM MX100-01E

26.

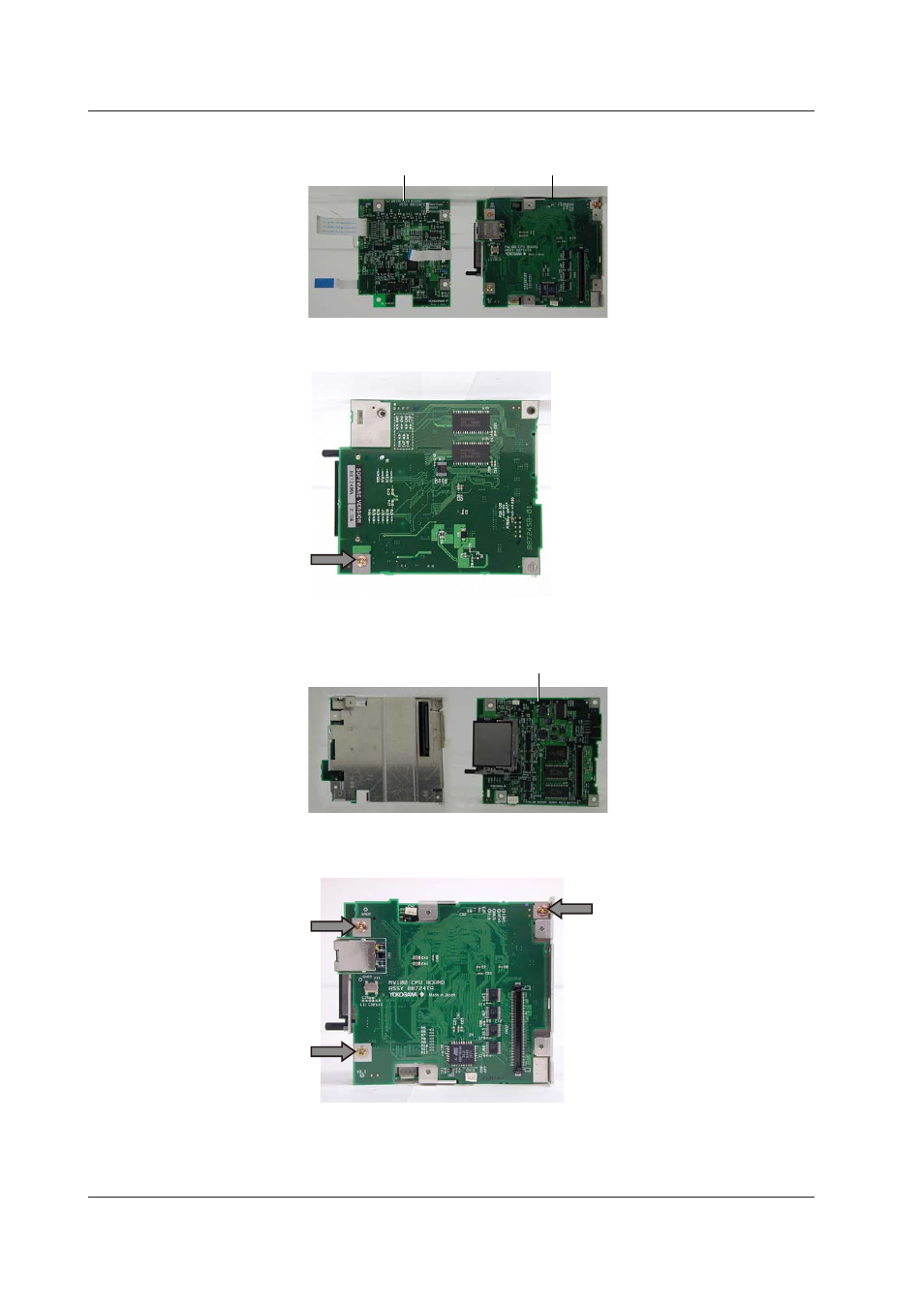

Remove the Driver board Assembly.

Driver board Assy

CPU board Assy

27.

Remove the screw from the Memory board Assembly.

28.

Remove the Memory board Assembly.

Memory board Assy

29.

Remove the 3 screws from the CPU board Assembly.
