In this example, GW_STATUS is allocated to register numbers 0 through 8, and BBR_STATUS of
BBR002 is allocated to register numbers 18 through 26.
In this case, the [Available Parameters] section of the [Input Registers] tab is configured as fol-
lows.
Items displayed in the tree
First level
: Device tag name
Second level : Device status (GW_STATUS,
BBR_STATUS, and DEV_STA-
TUS)
Field wireless device UAP ID
Third level : Field wireless device parameter
name
GW_STATUS and BBR_STATUS of BBR002 al-
located in the [Input Registers] section have their
input registers numbers (as a range) added to the
right of the parameter name.
The format is as follows: [i:xxx-xxx].

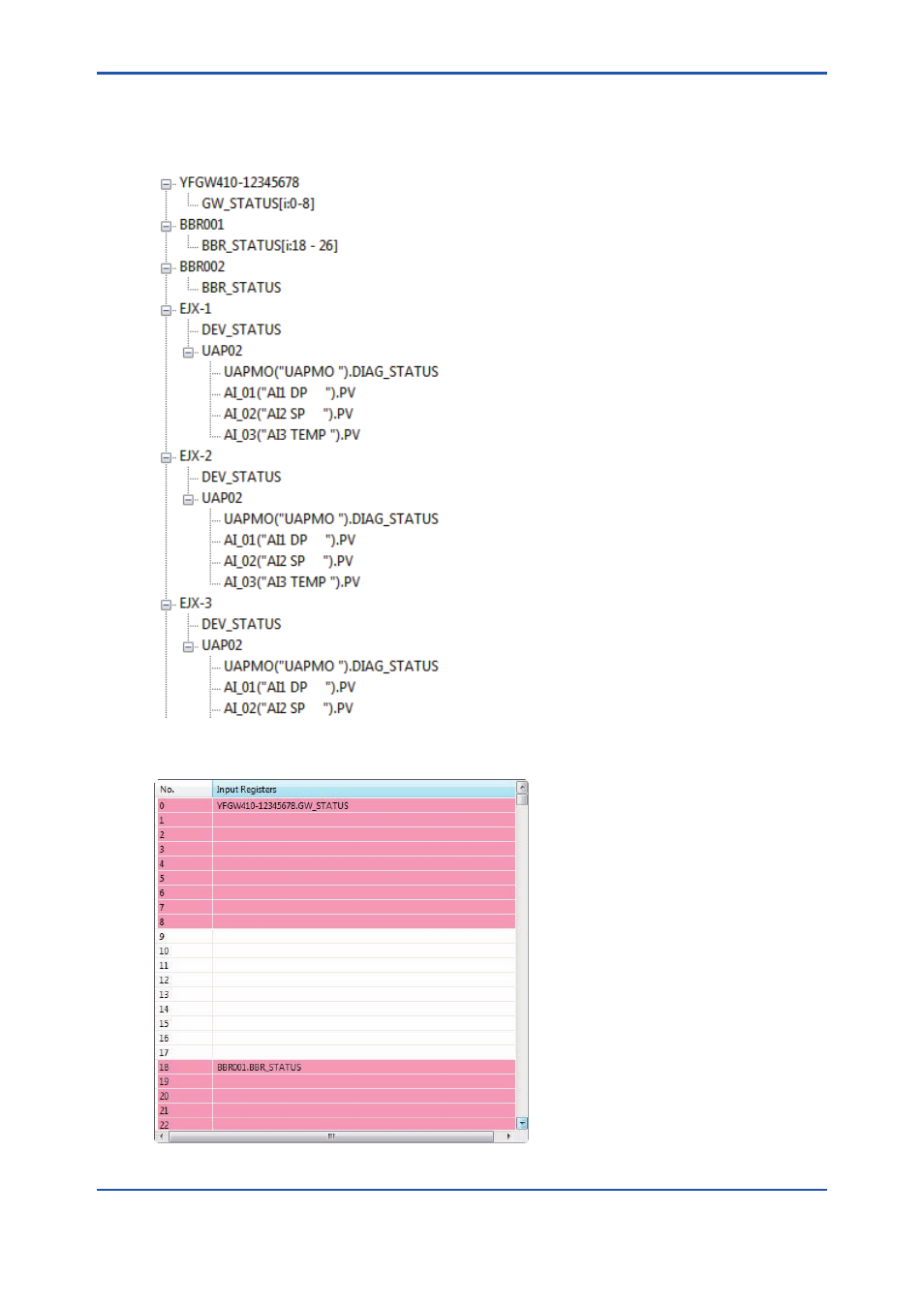

FD0366.ai
The [Input Registers] section is configured as follows.
FD0367.ai
