Dimensional drawings, E1 metallic bolted with non-metallic center, Model specific – Versa-Matic 1 Elima-Matic Bolted Metal (E1) User Manual
Page 7: Pump specs, Warren rupp inc, Model e1 metallic bolted, Dimensions in inches (mm dimensions in brackets)
e1mdlCsm-rev0314
www
.
versamatic
.
com
Model E1 Metallic Bolted •
4
E1 Metallic Bolted with Non-Metallic Center

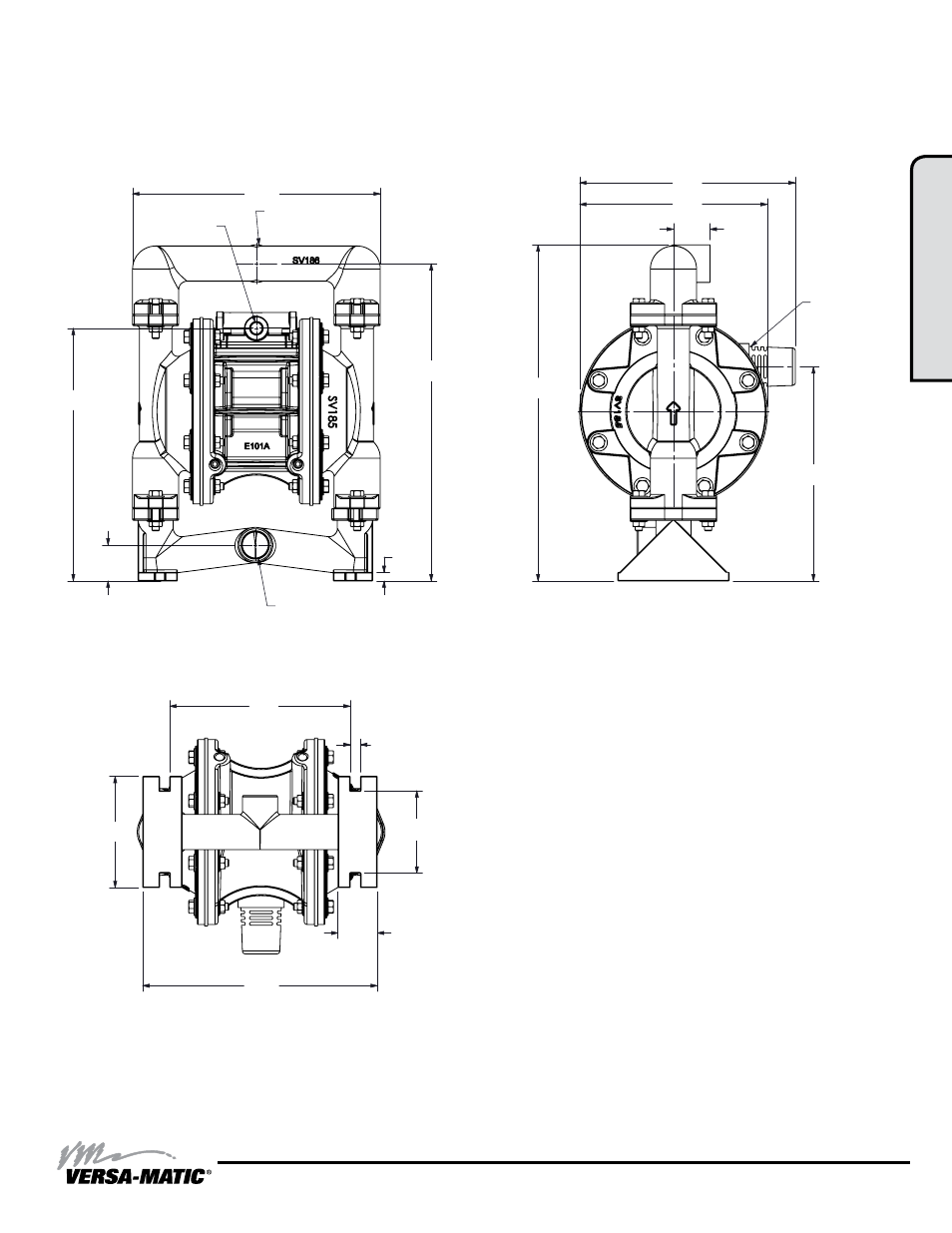

Dimensions in inches (mm dimensions in brackets)
The dimensions on this drawing are for reference only. A certified drawing can be requested if physical dimensions are needed.
dimensional drawings
