• Model E1 Metallic Bolted
Performance
E1 1" Bolted Metal
Rubber and TPE Fitted
Flow Rate
Adjustable to . . . . . . . 0-46 gpm (174.1 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 1" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 1" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 3/8" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 1/2" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .16' (4.9 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .31' (9.4 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . 1/8" (3.2 mm)
Max Noise Level . . . . . . . . . . . . . 93 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . . . 22 lbs (10 kg)
Stainless Steel . . . . . . . . . . .36 lbs (16.3 kg)
Alloy C . . . . . . . . . . . . . . . . .36 lbs (16.3 kg)
E1 1" Bolted Metal
PTFE Fitted
Flow Rate
Adjustable to . . . . . . . 0-36 gpm (163.3 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . . . . . . 1" NPT
Discharge. . . . . . . . . . . . . . . . . . . . . 1" NPT
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 3/8" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 1/2" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .11' (3.4 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .31' (9.4 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . 1/8" (3.2 mm)
Max Noise Level . . . . . . . . . . . . . 96 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . . . 22 lbs (10 kg)
Stainless Steel . . . . . . . . . . .36 lbs (16.3 kg)
Alloy C . . . . . . . . . . . . . . . . .36 lbs (16.3 kg)
100
80
60
40
20
0
0
5
10
15
20
25
30
35
20
30
10
5
70
60
50
40
30
20
10
0
200
160
120
80
40
0
Meters Feet

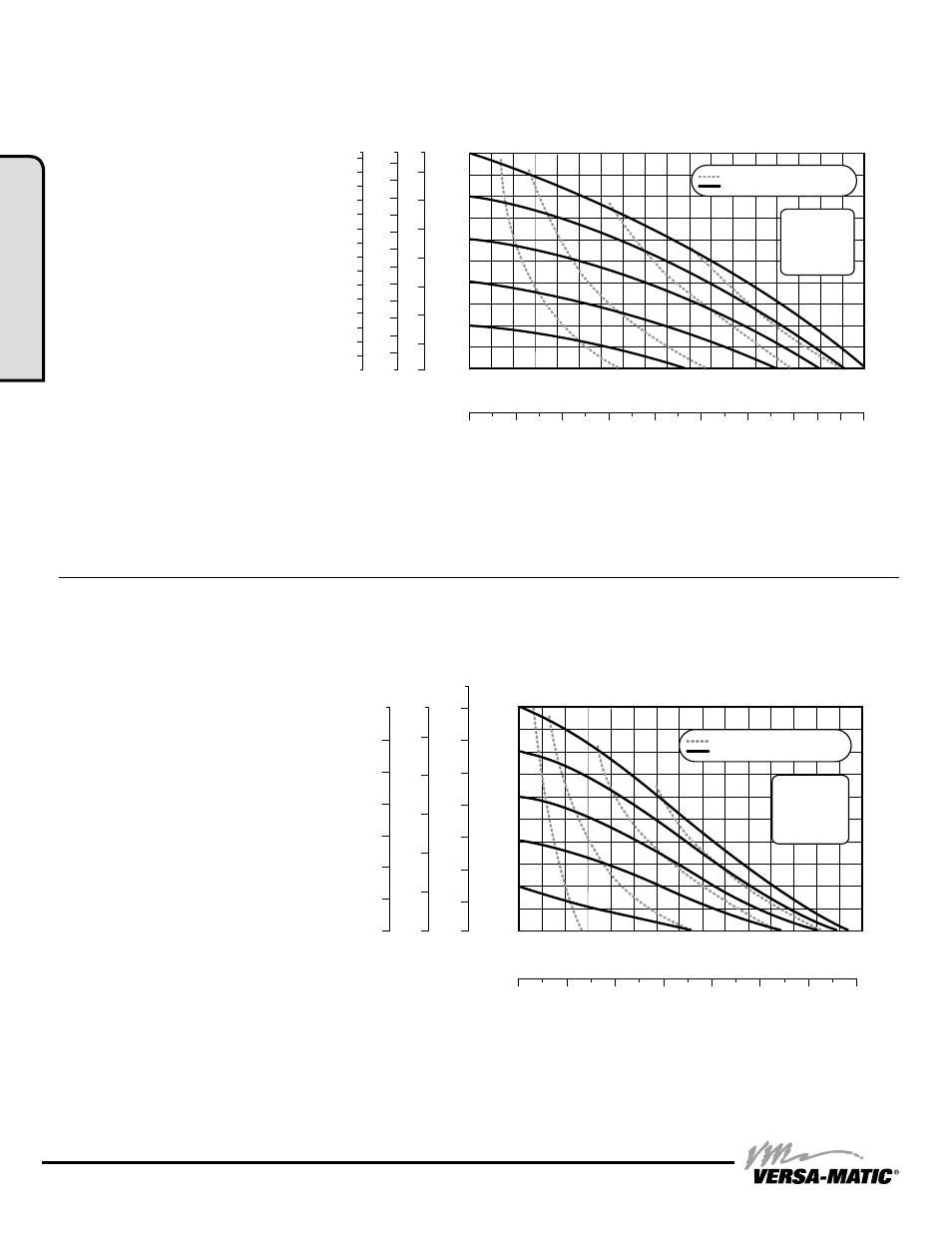

Discharge Head in PSI
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke, .047 Gal. (0.18 L)
0
20
40
60
80
100
120
140
Capacity in Liters Per Minute
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
5
8.5
10
17
20
34
30
51
0
1
2
3
4
5
6
7
BAR
NOTE: Performance based on the following: PTFE fitted pump, flooded suction, water at ambient
conditions. The use of other materials and varying hydraulic conditions may result in deviations in
excess of 5%.
100
80
60
40
20
0
0
5
10
15
20
25
30
35
40
45
0
20
40
60
80
100
120
140
160
20
30
10
5
Discharge Head in PSI
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke, .09 Gal. (0.34 L)
Meters Feet
240
220
200
180
160
140
120
100
80
60
40
20
0
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
0
1
2
3
4
5
6
7
BAR
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
5
8.5
10
17
20
34
30
51
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at ambient
conditions. The use of other materials and varying hydraulic conditions may result in deviations in
excess of 5%.
