LevelOne IAT-1000 - Manual (Page 7)

3. Installation
3.1.1. Hardware Installation
Select a suitable location for the IAT-1000. To maximize reliability and performance, follow
these guidelines:
•
Use an elevated location. (i.e. - On the top of a cubicle, or mounted on the wall.)
•
Turn on the IAT-1000 in where have a power, RJ-45 and stereo system.
NOTE: the IAT-1000 default IP address is DHCP client, so after turn on the IAT-1000 and
connect with local network, it will search the DHCP server, if not found, the IAT-1000 will
change to default Static IP (192.168.1.100).
3.1.2. Utility Installation
NOTE: all the snapped images of installation mentioned in this manual are based on
Windows XP. For other windows operating system, all the procedures are the same but
the screens are not the exactly same.
1. Turn on the computer with network connection to IAT-1000. Insert the
CD into the CD-ROM Drive. Please click the “Install”.

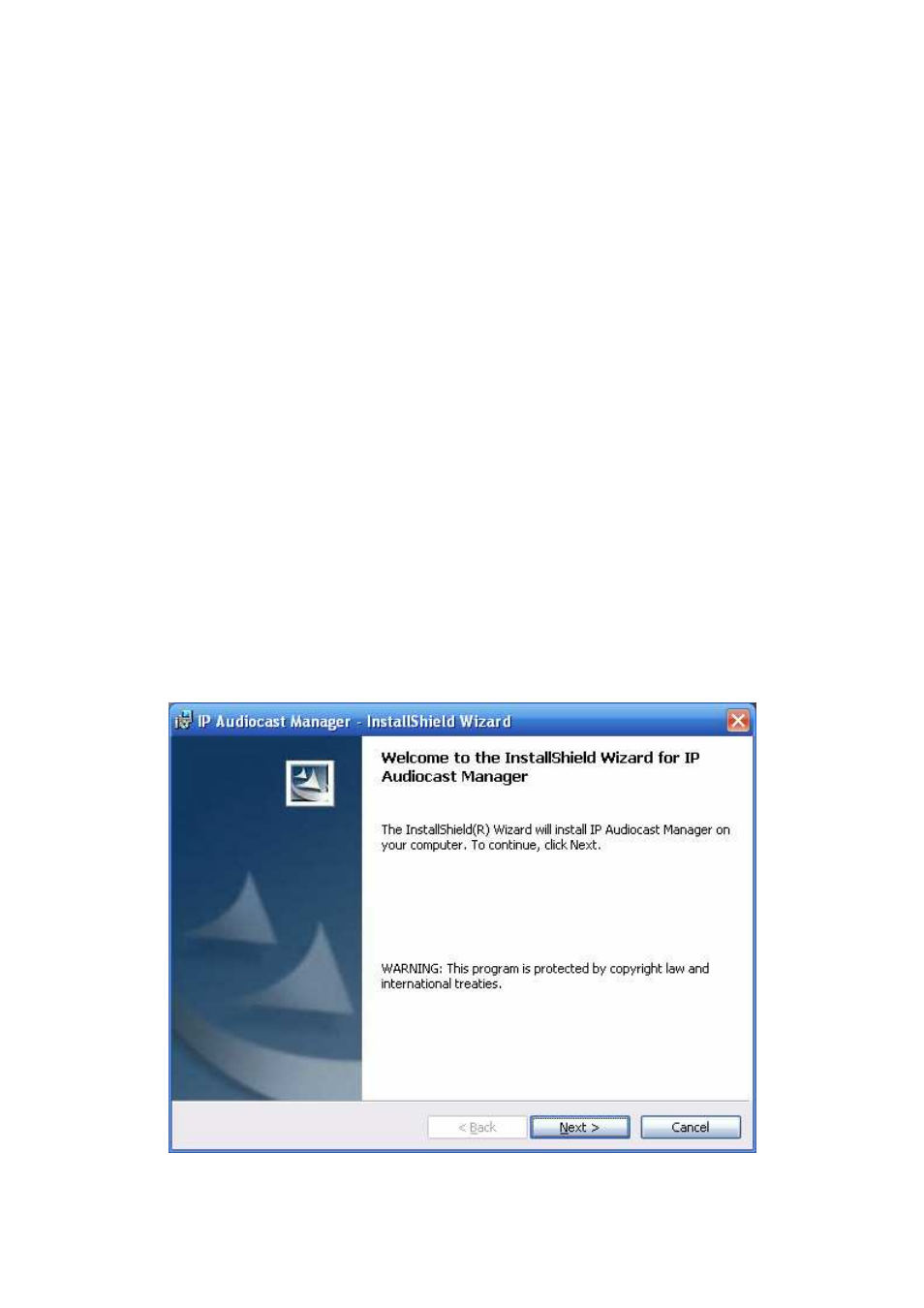

2. InstallShield Wizard will automatically start. Please click “Next” to
continue.
