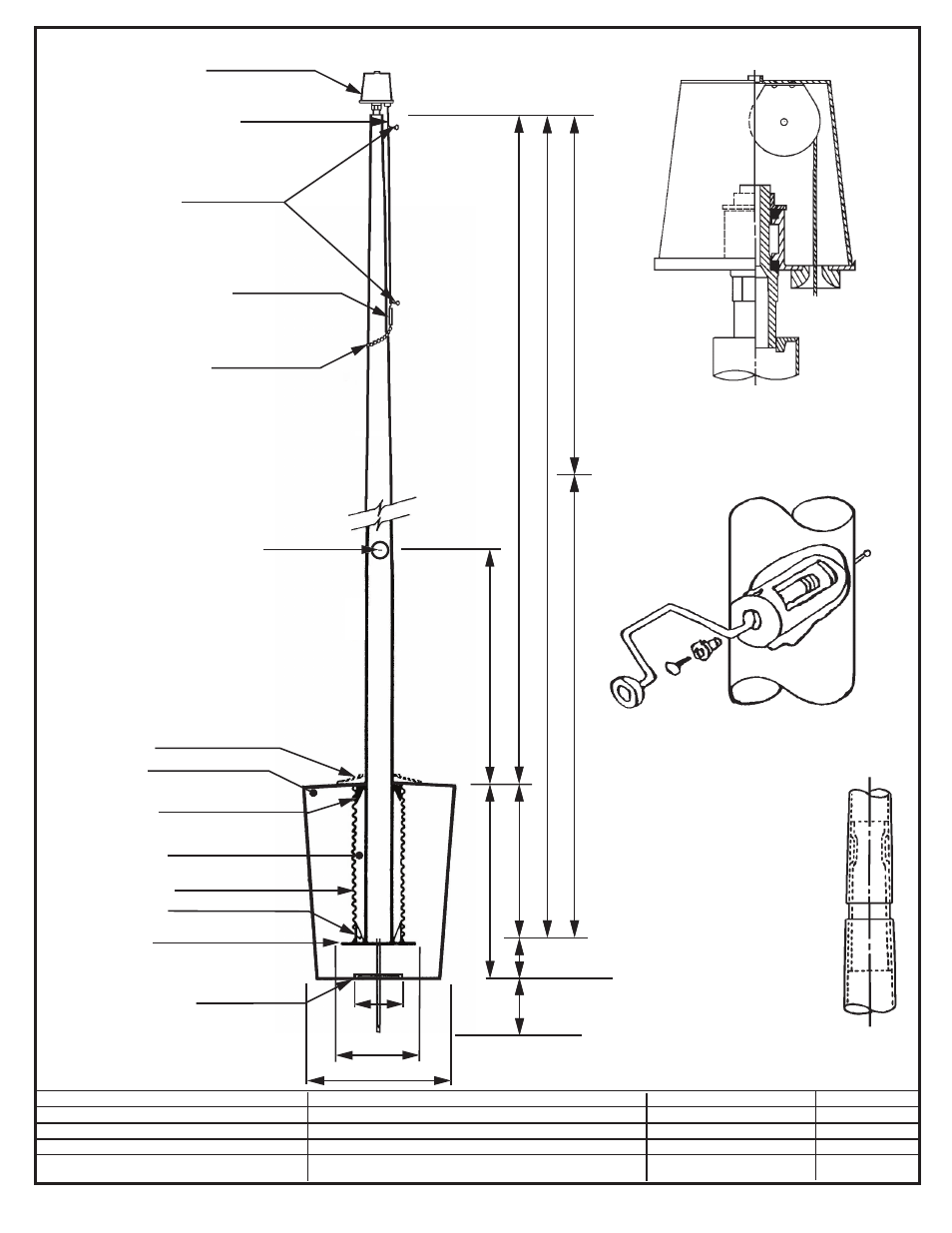

LA STEELCRAFT EC50IH - Manual

Single sheave truck, cast aluminum
revolving, non-fouling, internal
halyard truck
Neoprene coated 2" diameter
steel counterweight
Aluminum flash collar
3000 PSI concrete
Hardwood wedges
(supplied by others)
Dry sand tightly tamped
after aligning pole
Foundation sleeve -16 ga
hot dip galvanized steel
Steel centering wedges
1/4" Steel base plate
1/4" Steel support plate
welded to grounding spike
Tapered portion: 37'-2"
Straight portion: 17'-10"
Project:
Location:
Architect:
Contractor
Customer:
Date:
Revision:
Job:
Overall length: 55'-0"
Foundation: 5'-6"
Access door : 3' - 6"
Model EC50 IH
10"
20"
60"
12"
6"
Exposed height: 50'-0"
Ground set tapered aluminum flagpole: ALLOY: 6063T6
Exposed height: 50'-0" Overall height: 55'-0"
Ship in 3 sections Butt diameter: 10"
Top diameter: 4" Wall thickness: .188"
Finish: 100 grit polish
5'-0"
All shafts with overall
length of more than
38'-6" are shipped in
two sections.
Each section matched marked
for field assembly. Exposed
portion of jam sleeve must
be well lubricated prior to
assembly.
1-1/2" maximum shop
gap allowed for field fitting
(ram for tight joint)
Winch Detail
Nylon beaded retainer ring
1/8" x 7x19 Mil-C-5424
Stainless steel aircraft cable
Gearless, self locking direct
drive winch with six tumbler
cylinder lock
Revolving non-fouling internal halyard
truck, cast aluminum body, 26
stainless steel ball bearings,
and 2-1/2" diameter plated
steel sheave.
Standard flag arrangement:
10' x 15'
